Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

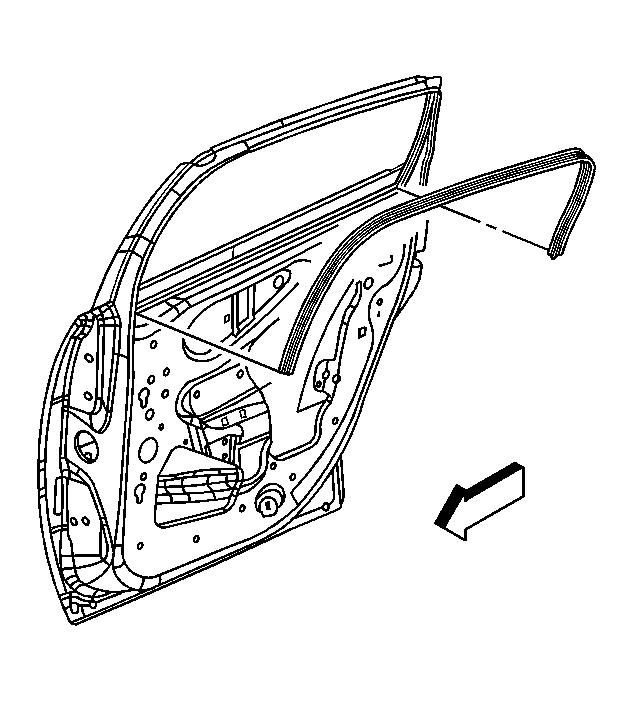

    Fig 1: View Of Weatherstrip - Rear Door Window
    GM1363725Courtesy of GENERAL MOTORS CORP.
  1. Open the rear door.
  2. Lower the window to the full down position.
  3. Grasp the door window weatherstrip in the center. Pull downward until the weatherstrip fully releases from the door frame.
  4. Remove the window weatherstrip from the door.
