Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

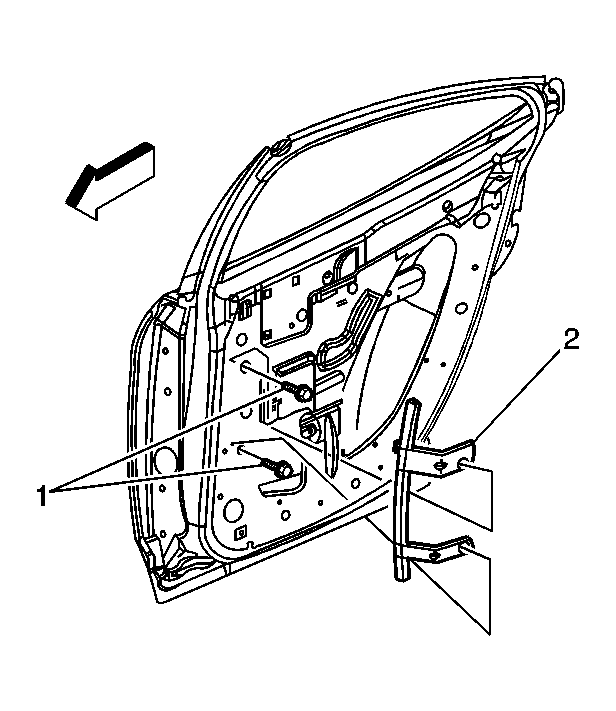

    Fig 1: Identifying Window Run Channel - Rear Door
    GM1363689Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
  2. Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
  3. Position the window in the full down position.
  4. Remove the window lower run channel bolts (1).
  5. Remove the window lower run channel (2) from the door.
