Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

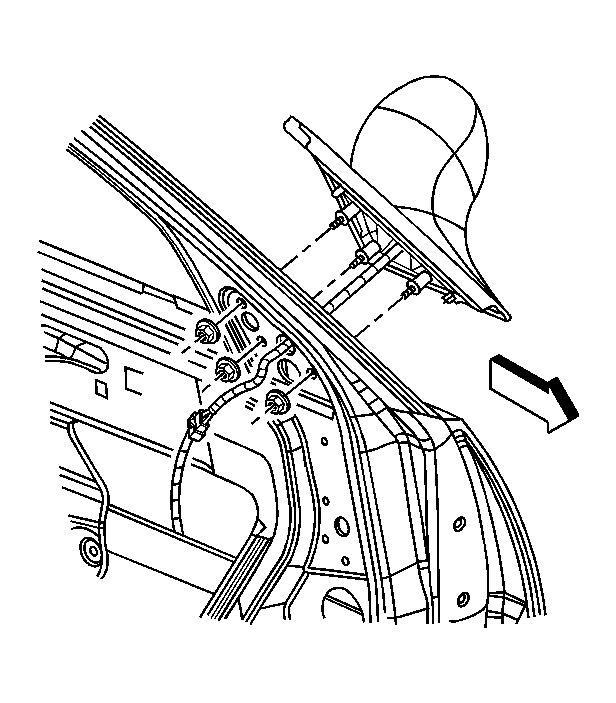

Fig 1: Identifying Remote Mirror & Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
Disconnect the electrical connector from the outside rearview mirror.
Remove the outside rearview mirror nuts.
Remove the outside rearview mirror from the door.
