Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

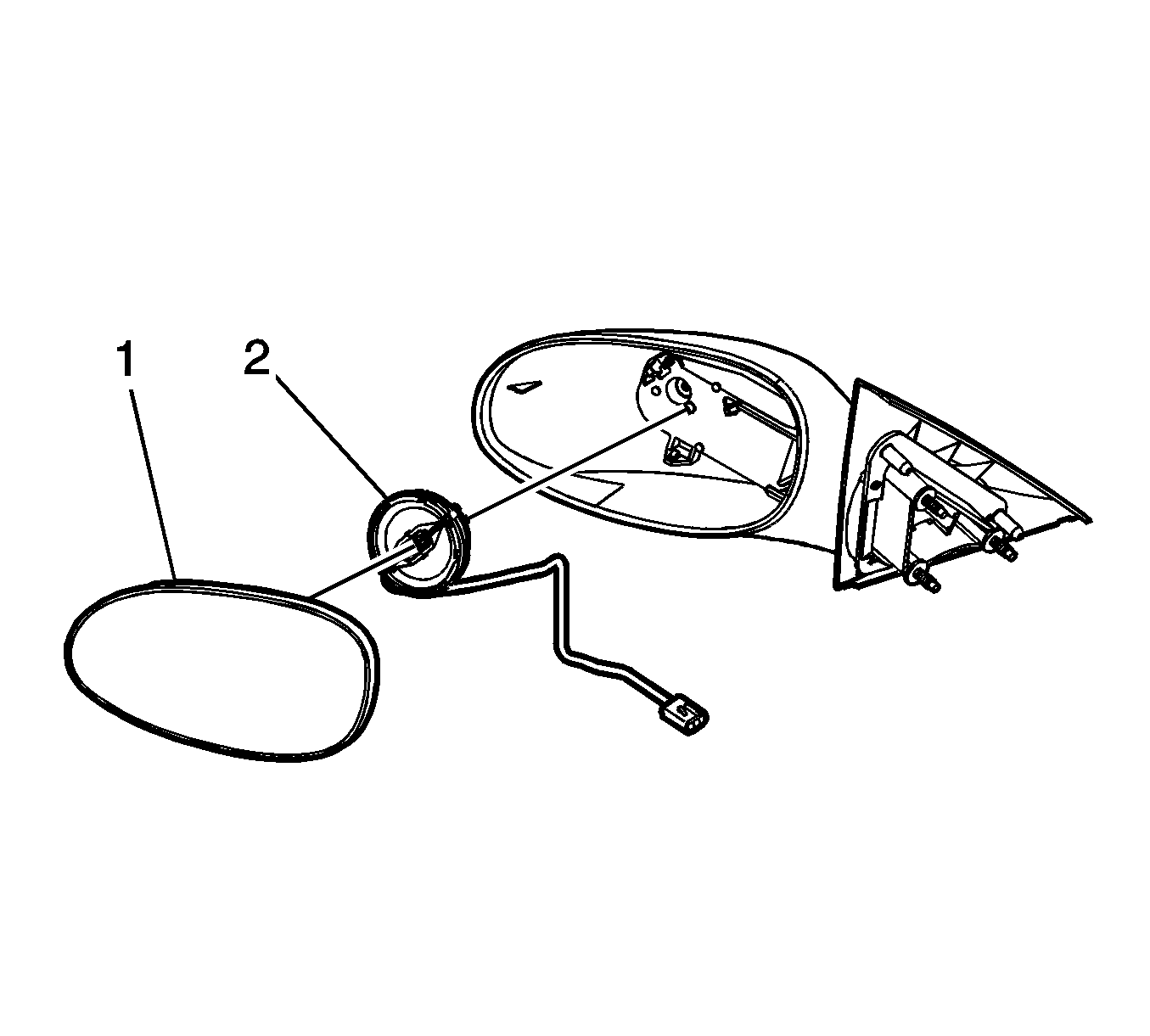

    Fig 1: Identifying Power Mirror Motor
    GM1572895Courtesy of GENERAL MOTORS CORP.
  1. Remove the mirror face (1). Refer to Outside Rearview Mirror Glass Replacement .
  2. Remove the screw from the mirror motor (2).
  3. Disconnect the electrical connector from the edge of the mirror motor.

    Note the position of the plugs on the mirror motor when removing.

  4. Remove the motor.
