Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new hinge to the door.

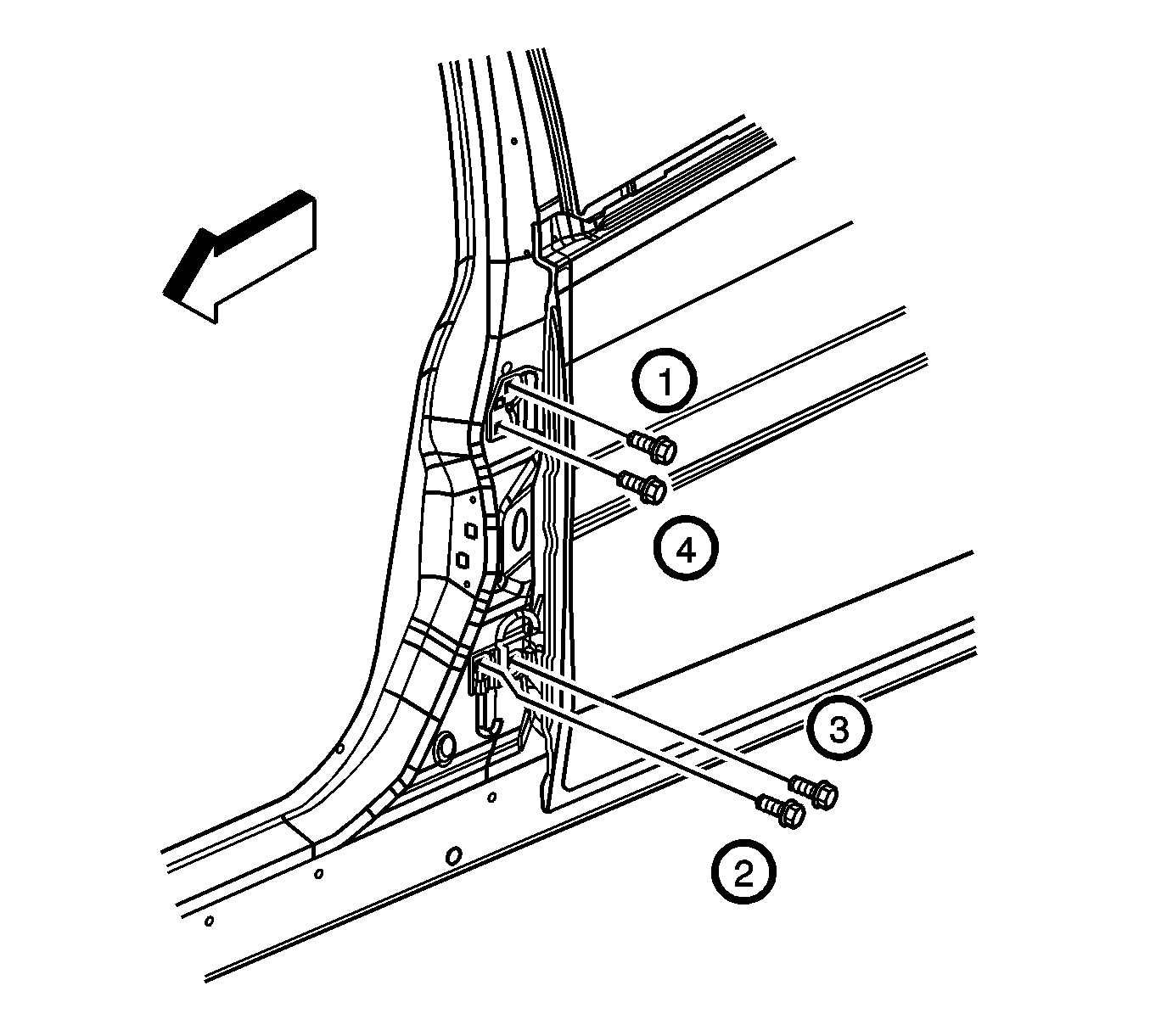

    2. Fig 1: Identifying Hinge Pillar Side Bolts (Rear Door)
    GM800995Courtesy of GENERAL MOTORS CORP.
  2. Position the door hinge to the alignment marks on the hinge pillar or door side as follows:
    3. NOTE: Refer to Fastener Notice .
  3. Install the lower hinge bolts to the hinge pillar side in the specified sequence (3, 2).

    Tighten:  Tighten the bolts to 33 N.m (24 lb ft).

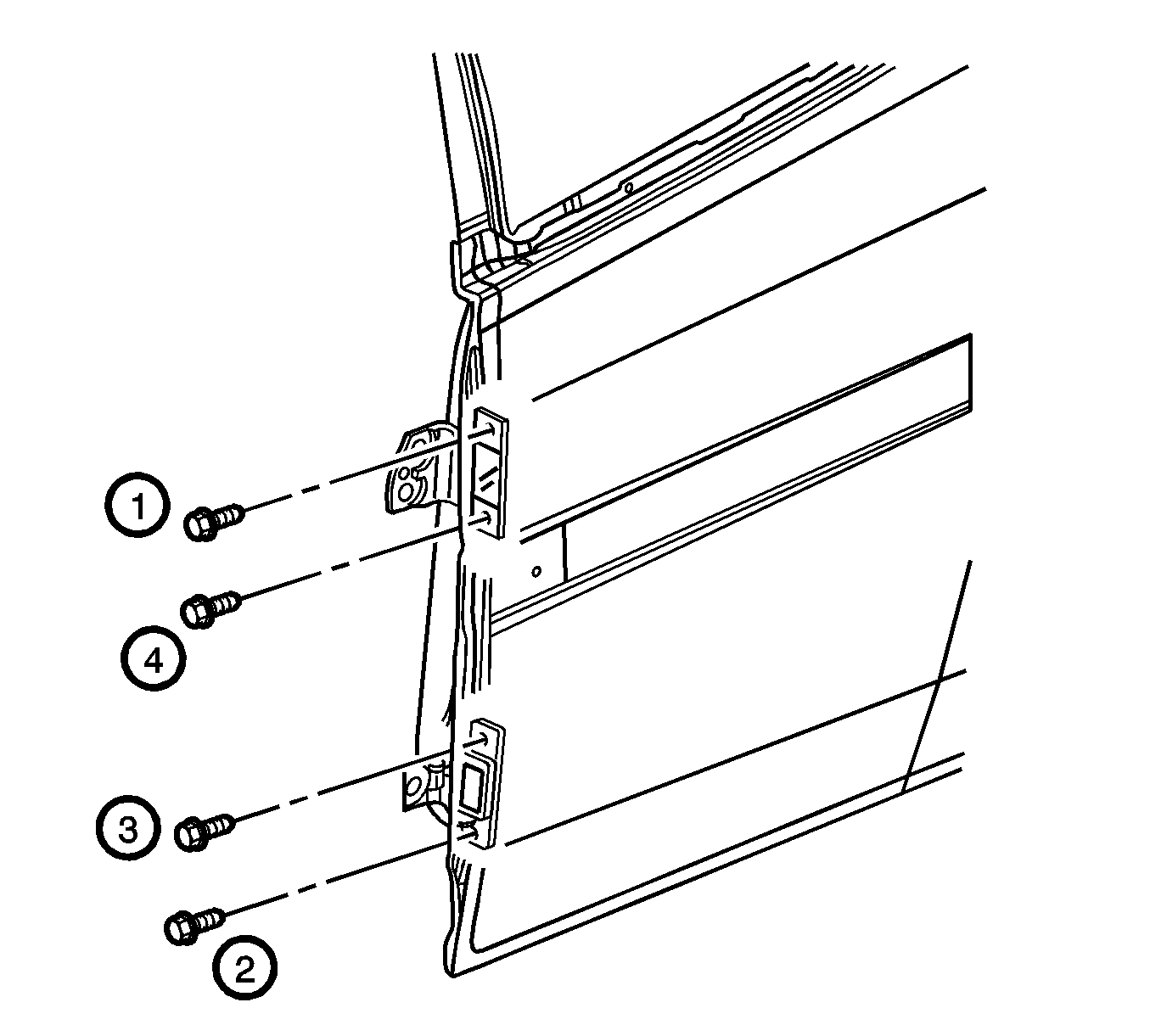

    4. Fig 2: Identifying Rear Door Hinge Bolts
    GM1363632Courtesy of GENERAL MOTORS CORP.
  4. Install the lower hinge bolts to the door side in the specified sequence (3, 2).

    Tighten:  Tighten the bolts to 33 N.m (24 lb ft).

    5. Fig 3: Identifying Hinge Pillar Side Bolts (Rear Door)
    GM800995Courtesy of GENERAL MOTORS CORP.
  5. Install the upper hinge bolts to the hinge pillar side in the specified sequence (1, 4).

    Tighten:  Tighten the bolts to 33 N.m (24 lb ft).

    6. Fig 4: View Of Lower Hinge Bolts
    GM1362780Courtesy of GENERAL MOTORS CORP.
  6. Install the upper hinge bolts to the door side in the specified sequence (1, 4).

    Tighten:  Tighten the bolts to 33 N.m (24 lb ft).

  7. Remove the support from the door.
  8. Inspect the door for proper operation.
  9. Remove the masking tape.
