Hood Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

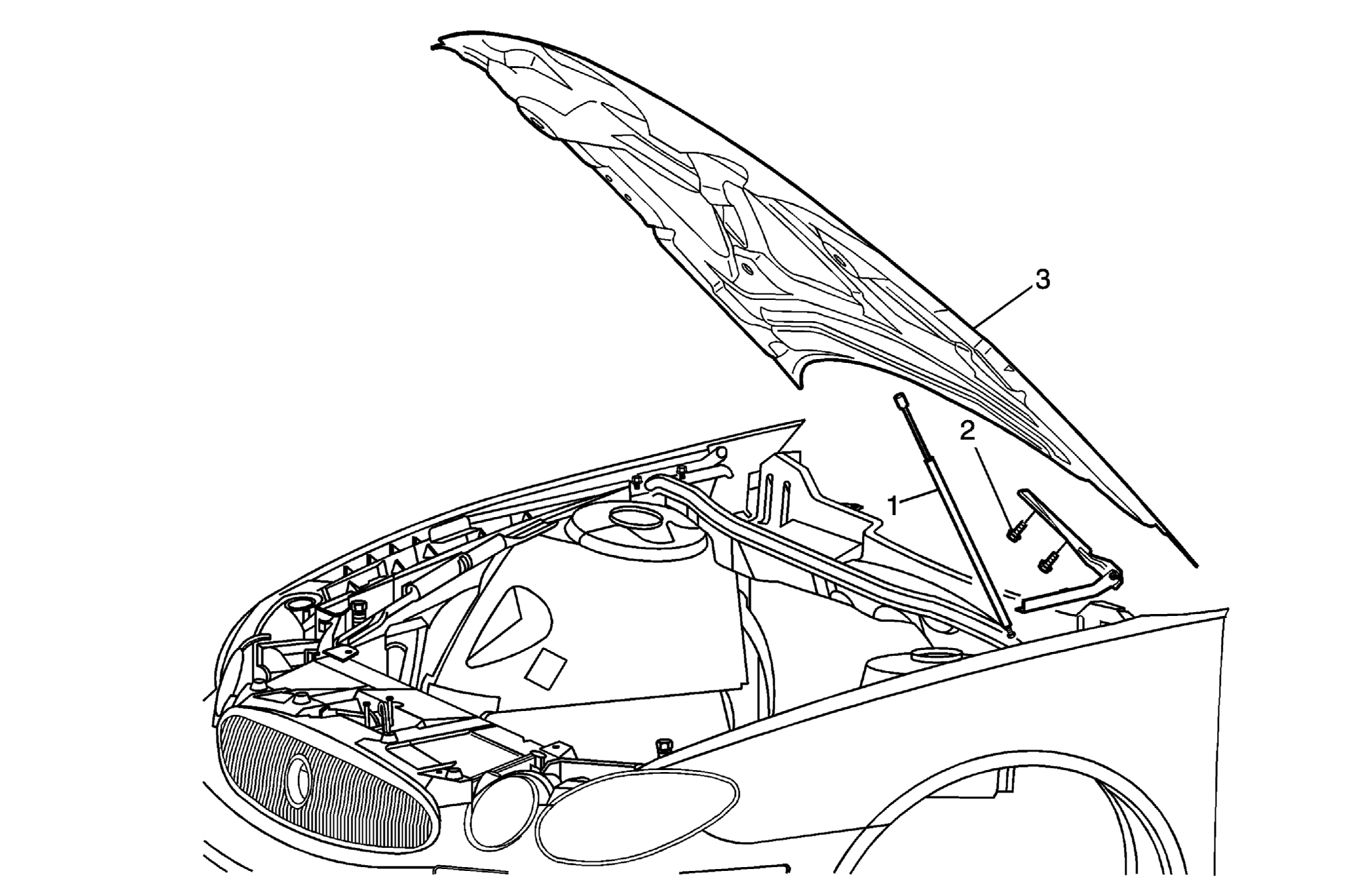

Fig 1: View Of Hood

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Open Assist Rod Assembly (Qty: 2) CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. NOTE: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Tip: Remove the metal clip at the ends of the assist rod, then pull away from stud. Disconnect any electrical connectors.
2	Hood Hinge Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 24 N.m (18 lb ft)
3	Hood Assembly
