Hood Primary and Secondary Latch Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

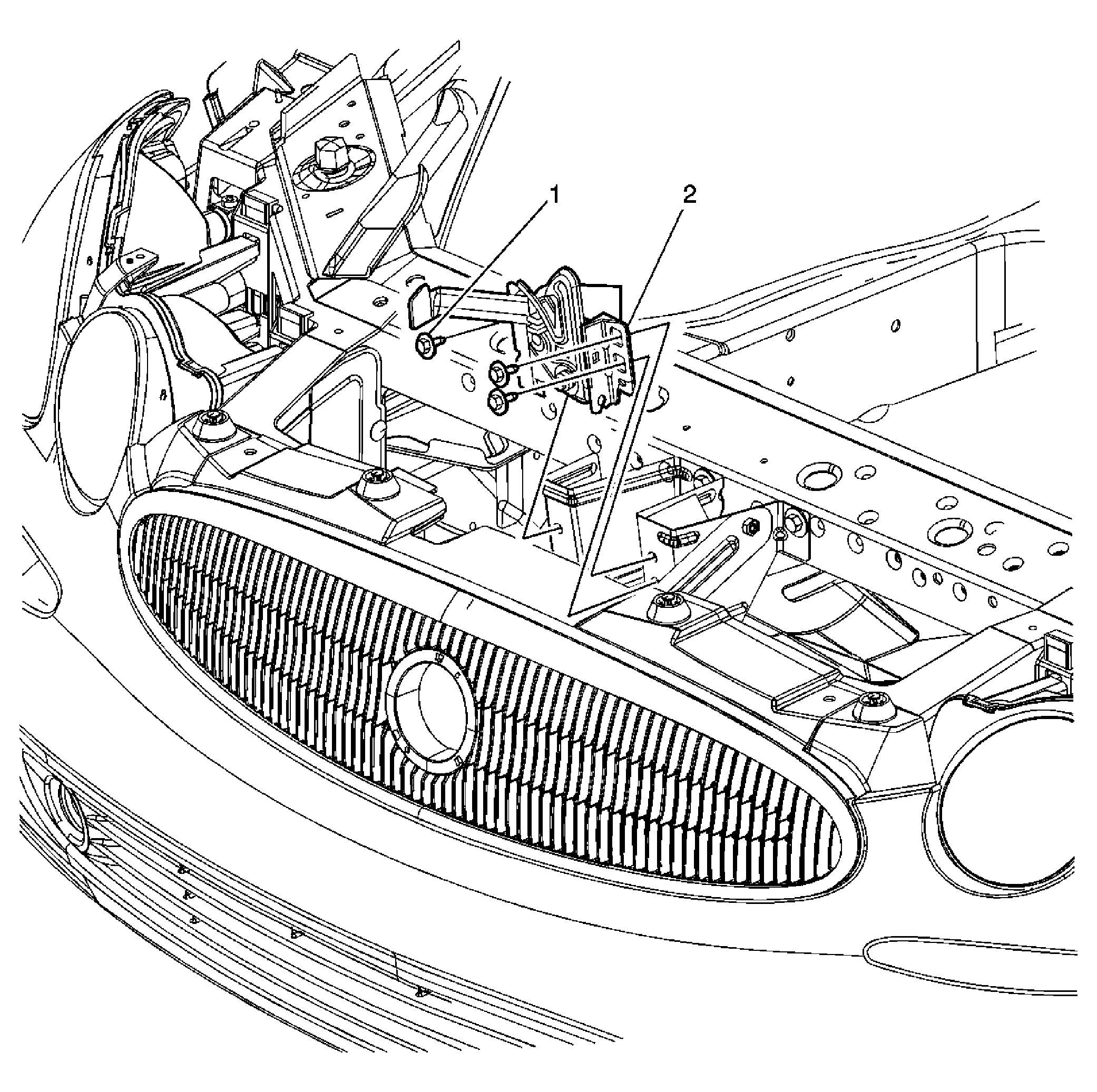

Fig 1: Identifying Hood Latch
GM1527268Courtesy of GENERAL MOTORS CORP.
Callout Component Name
NOTE: Refer to Fastener Notice .
Preliminary Procedures: Remove the radiator support sight shield. Refer to Radiator Support Sight Shield Replacement .
1 Hood Latch Bolts (Qty: 3)

Tighten:  10 N.m (89 lb in)
2 Hood Latch
Tip:
  • Disconnect the release cable.
  • Disconnect the electrical connector for the remote start, if equipped.
