Front and Rear Side Door Lower Weatherstrip Replacement (Allure (Canadian) & LaCrosse Super)

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

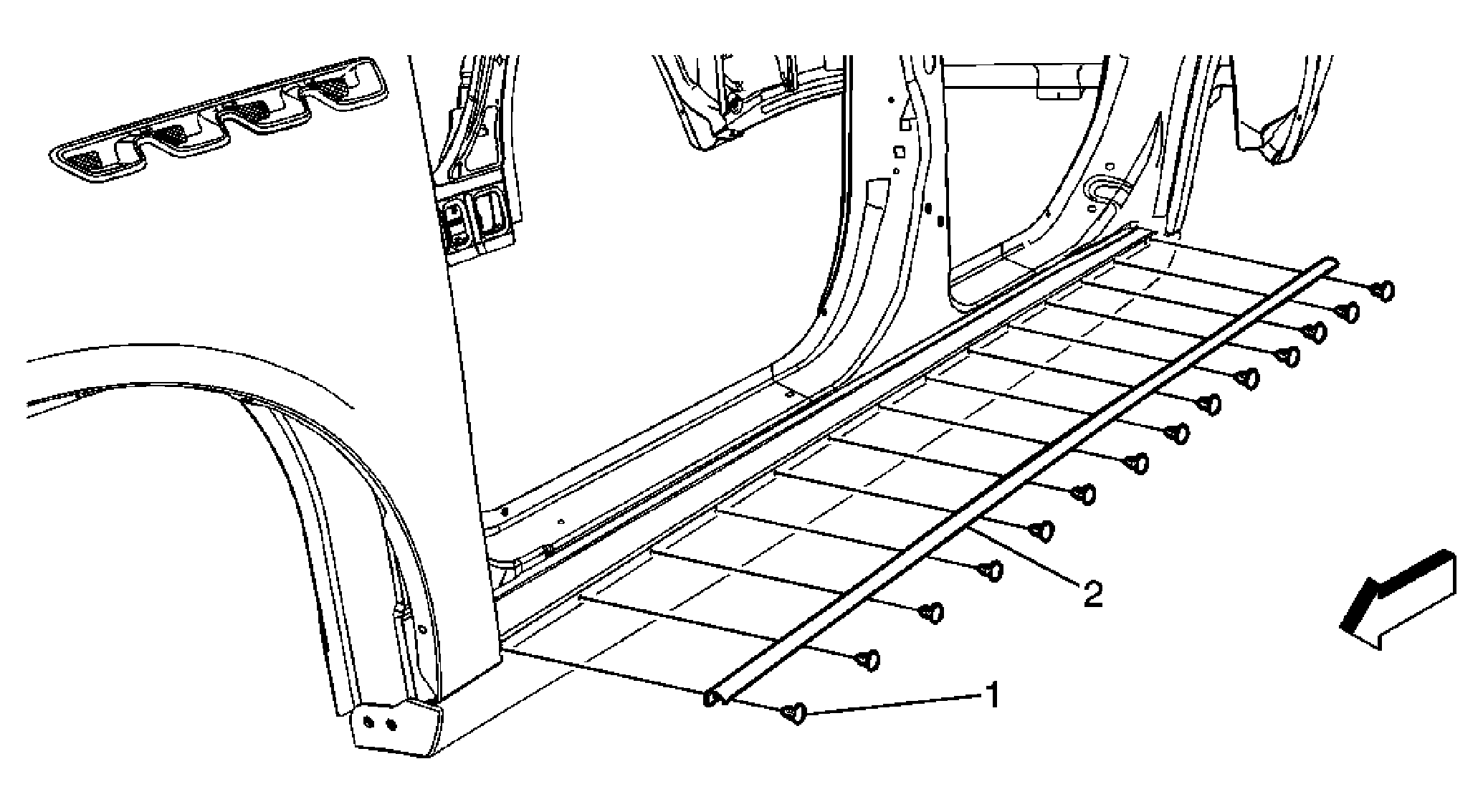

Fig 1: View Of Front & Rear Side Door Lower Weatherstrip
GM1972302Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Open both side doors on the side the weather-strip is being serviced.
1 Weather-strip Retainer (Qty: 14)
Procedure:
Using a suitable retainer release tool, lift the edge of the weather-strip and release all of the retainers from the weather-strip.
2 Front and Rear Door Lower Weather-strip
