Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

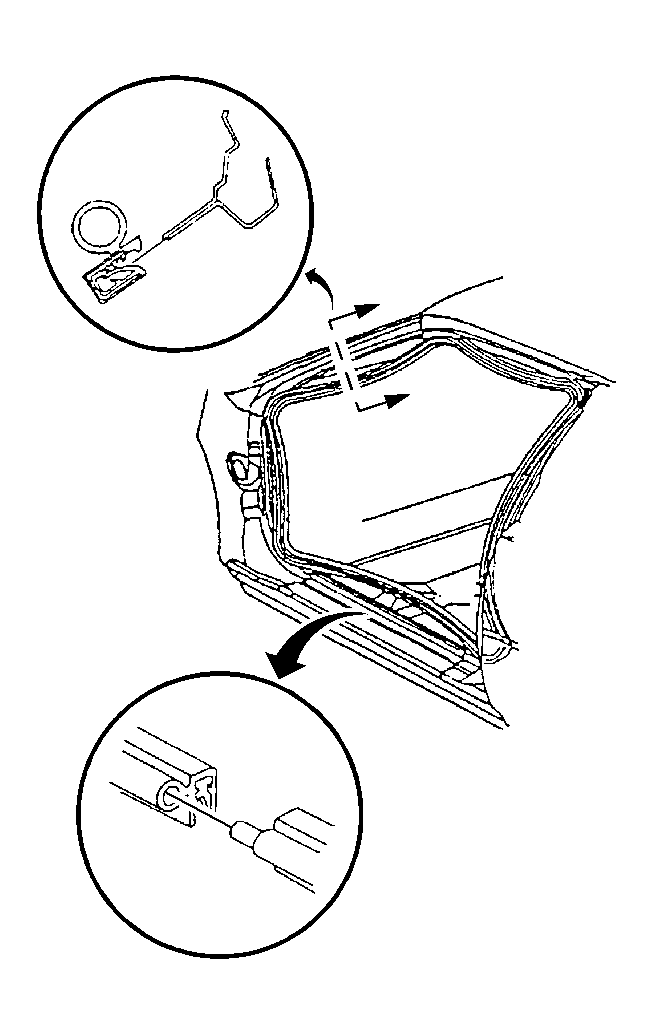

    Fig 1: View Of Front Door Opening Weatherstrip
    GM308132Courtesy of GENERAL MOTORS CORP.
  1. Position the door weatherstrip to the door opening.
  2. Install the weatherstrip to the pinch-weld flange on the body.
  3. Install the trim panel lower center pillar. Refer to Center Pillar Lower Trim Panel Replacement .
  4. Inspect the door for proper operation.
  5. Close the front door.
