WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

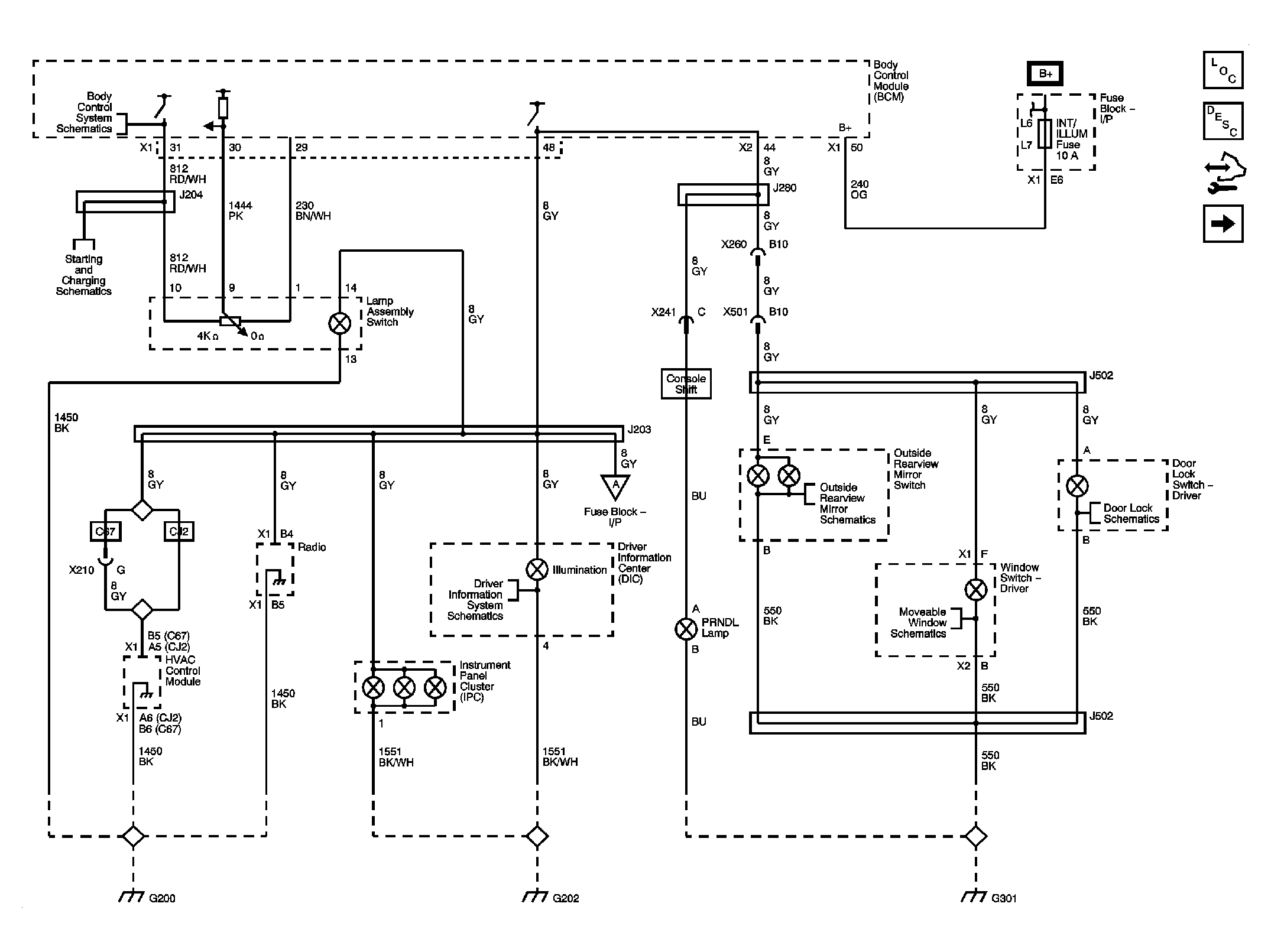

Fig 1: Instrument Panel, Console, and Driver Door Lighting Schematic
Courtesy of GENERAL MOTORS CORP.

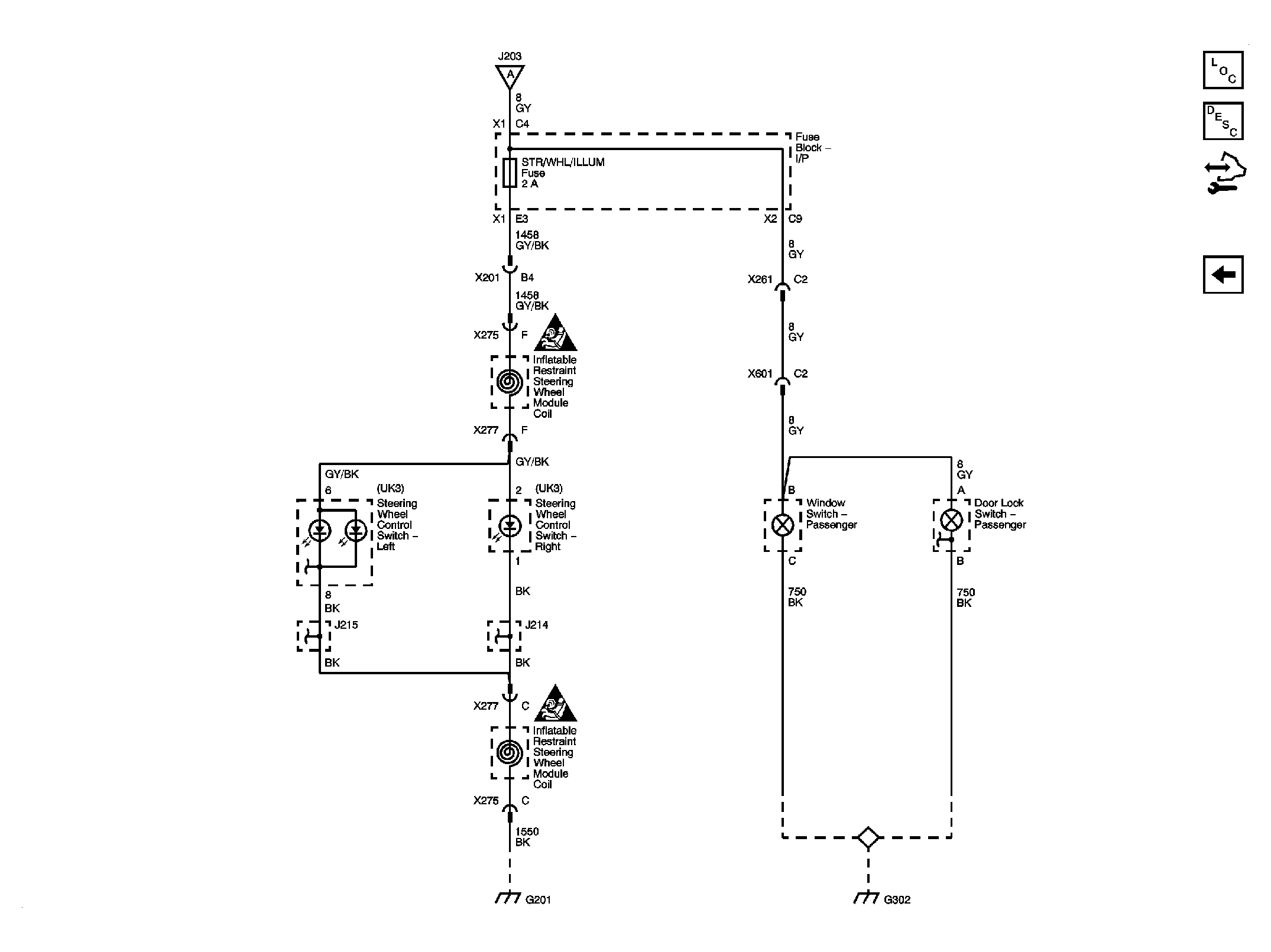

Fig 2: Steering Wheel and Front Passenger Door Lighting Schematic
