Tail Lamp Bulb Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

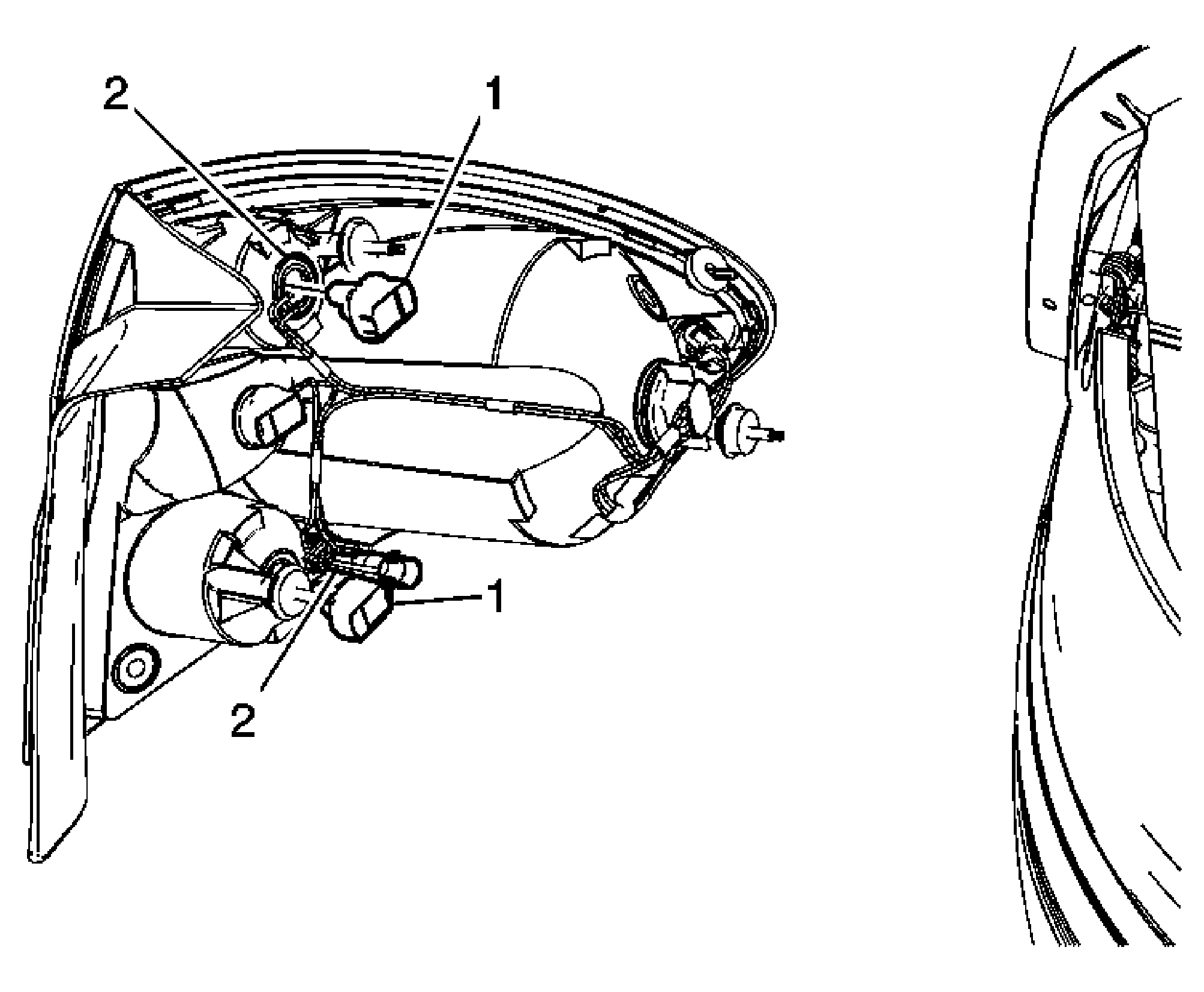

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the LR or RR tail lamp assembly. Refer to Tail Lamp Replacement . |
|
| 1 | Rear Tail Lamp Bulb Sockets Tip: Turn the lamp sockets a quarter turn counterclockwise and remove the lamp sockets from the lamp assembly. |
| 2 | Rear Marker Lamp Bulbs Tip: Pull the bulb straight from the lamp sockets. |
