Roof Side Rail Lamp Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

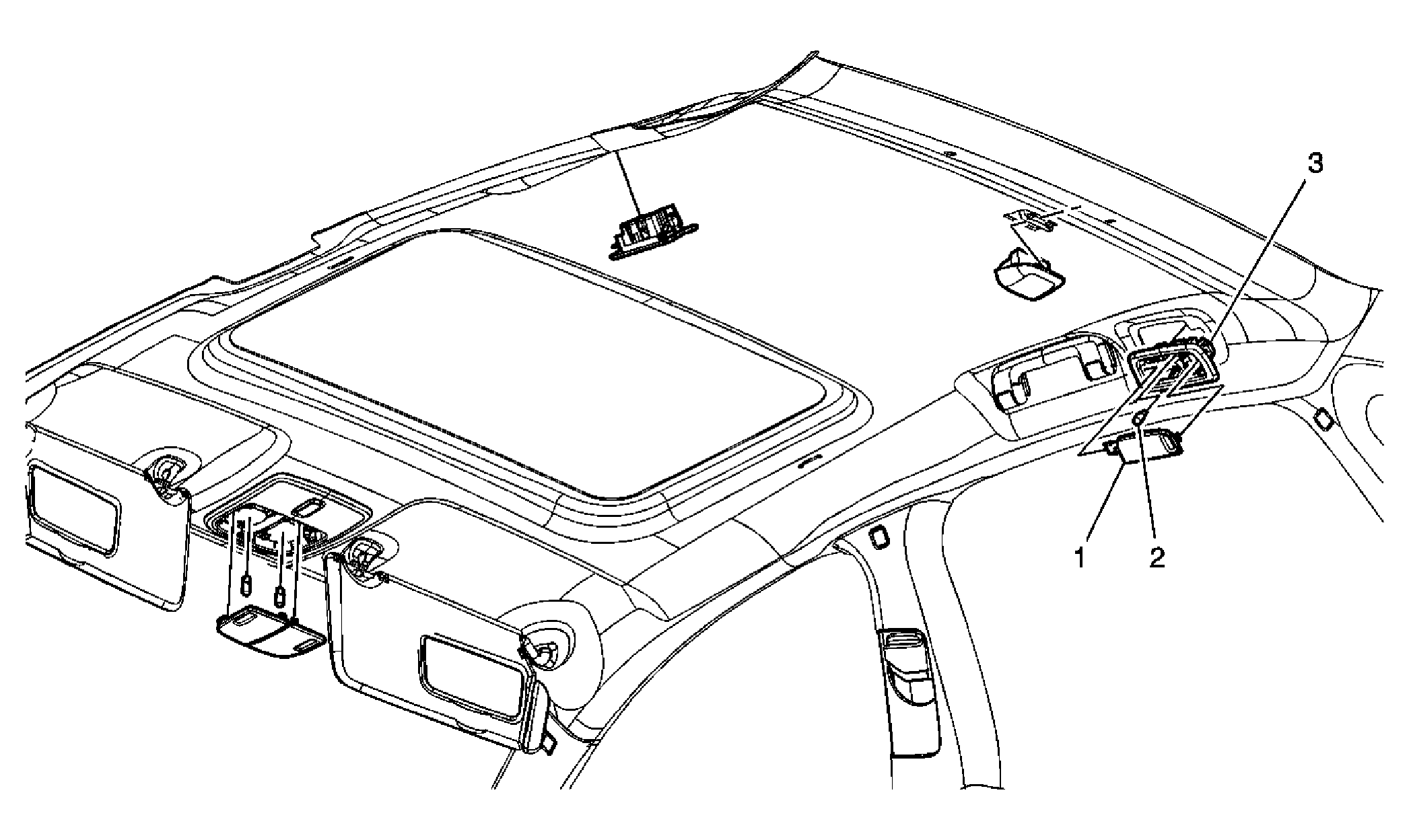

| Callout | Component Name |
|---|---|
| 1 | Roof Rail Courtesy and Reading Lamp Lens Tip: Use a small flat-bladed tool at the rear edge of the lens in order to release the lens from the bracket. |
| 2 | Roof Rail Courtesy and Reading Lamp Bulb |
| 3 | Roof Rail Courtesy and Reading Lamp Assembly Tip: Disconnect the electrical connector. |
