Rear Turn Signal Lamp Bulb Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

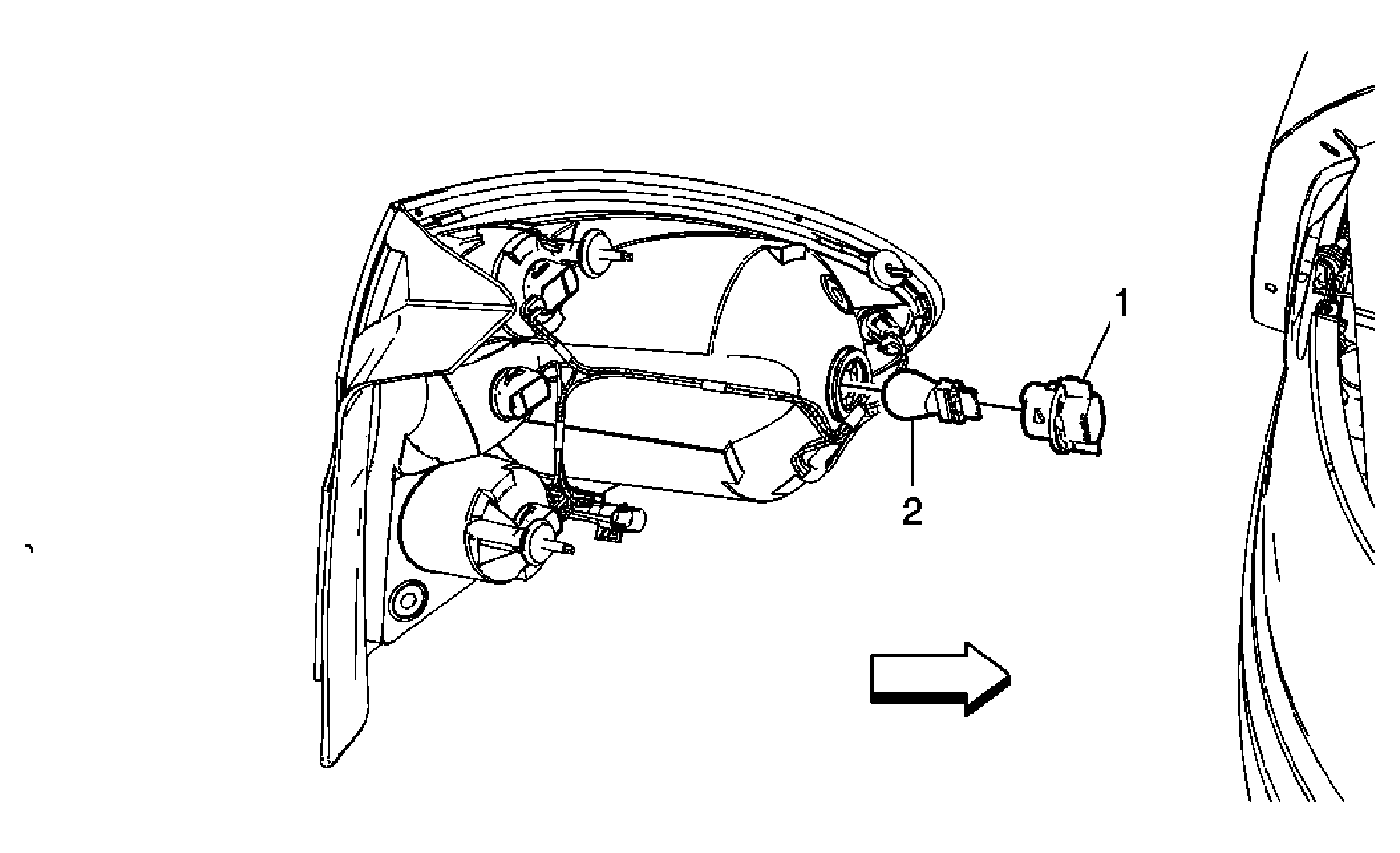

Fig 1: Identifying Rear Turn Signal Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove either the LR or RR tail lamp assembly. Refer to Tail Lamp Replacement .
1	Park Turn Directional Lamp Socket Tip: Turn the lamp socket a quarter turn counterclockwise and remove the socket from the lamp assembly.
2	Park Turn Directional Lamp Bulb Tip: Pull the bulb straight from the socket.
