Rear License Lamp Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

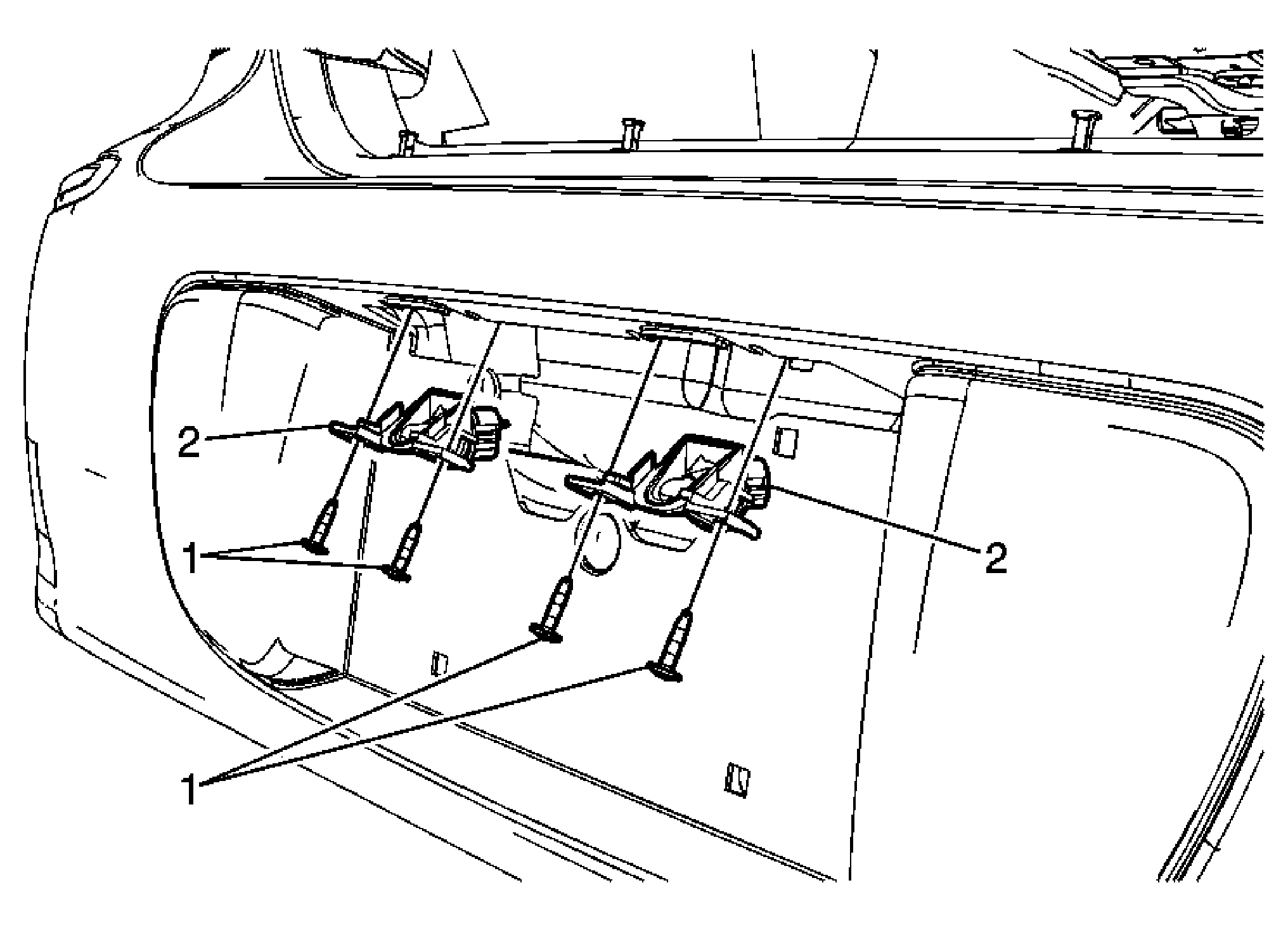

Fig 1: View Of Rear License Lamp
GM1792443Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 License Plate Lamp Screw (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  1.9 N.m (17 lb in )

2 License Plate Lamps
Tip:  Remove the lens from the lamp sockets.
