Parking and Turn Signal Lamp Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

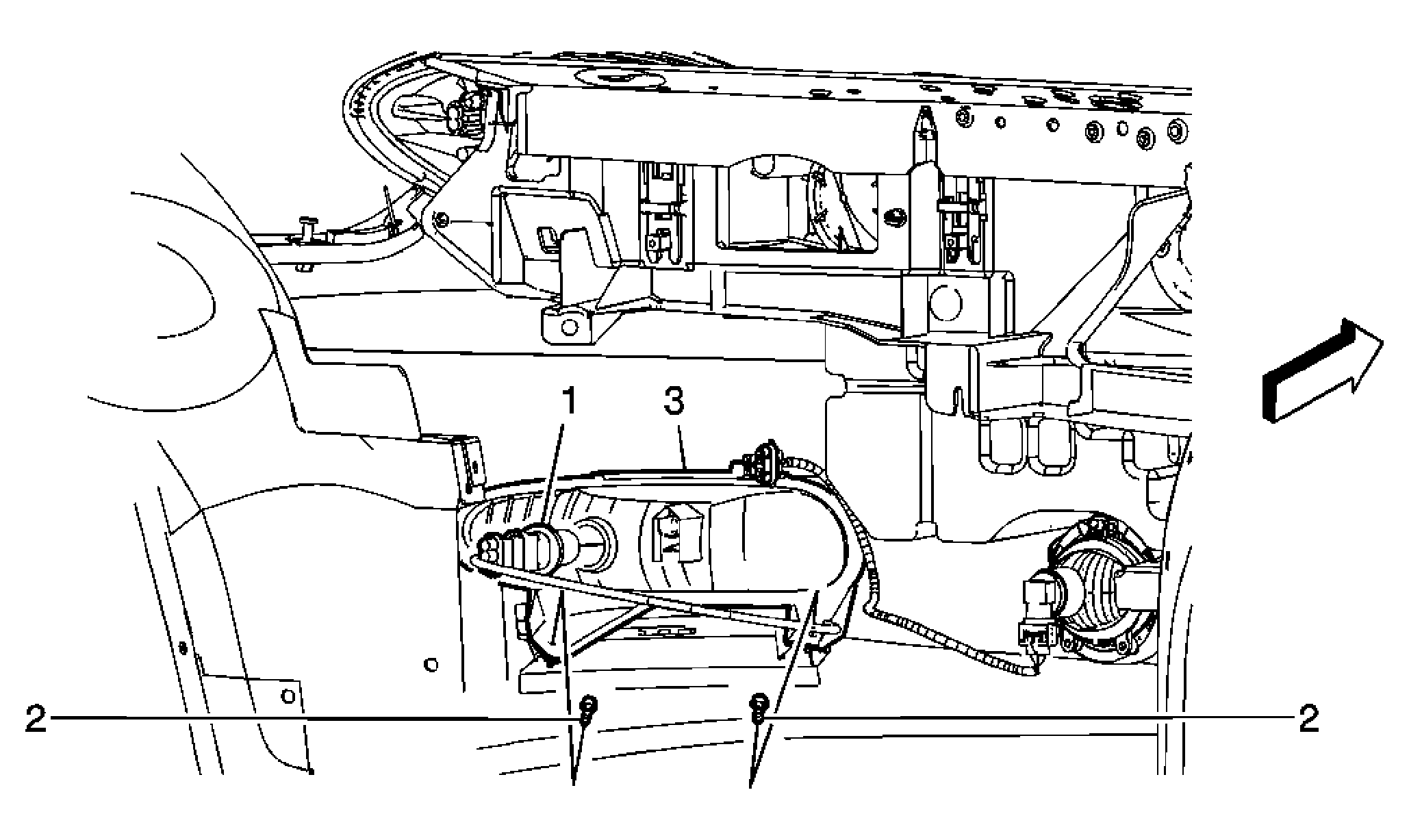

Fig 1: Locating Park/Turn Signal Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front bumper fascia lower air deflector. Refer to Front Bumper Fascia Air Deflector Replacement .
1	Front Park and Turn Signal Lamp Socket Tip: Rotate the lamp socket counterclockwise in order to remove.
2	Front Park and Turn Signal Lamp Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Front Park and Turn Signal Lamp Housing
