Park/Turn Signal Lamp Bulb Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

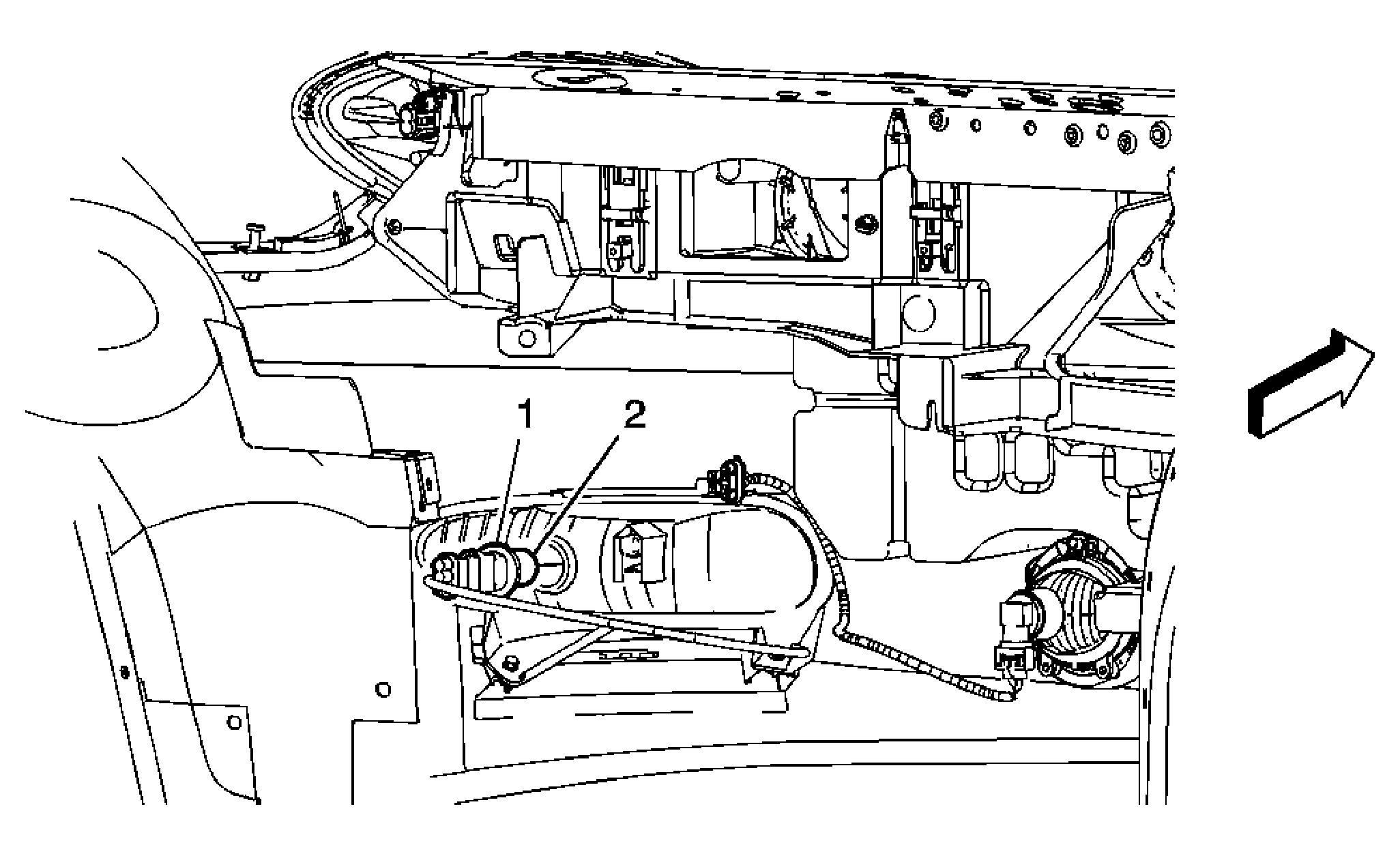

Fig 1: Replacing Park/Turn Signal Lamp Bulb
GM1753547Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front bumper fascia lower air deflector. Refer to Front Bumper Fascia Air Deflector Replacement .
1 Front Turn Signal Lamp Socket
2 Front Turn Signal Lamp Bulb
CAUTION: Refer to Halogen Bulb Caution .

Tip:  Push the bulb inward and rotate a quarter turn counterclockwise to remove the bulb from the socket.
