Overhead Console Courtesy Lamp Replacement (without Sunroof)

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

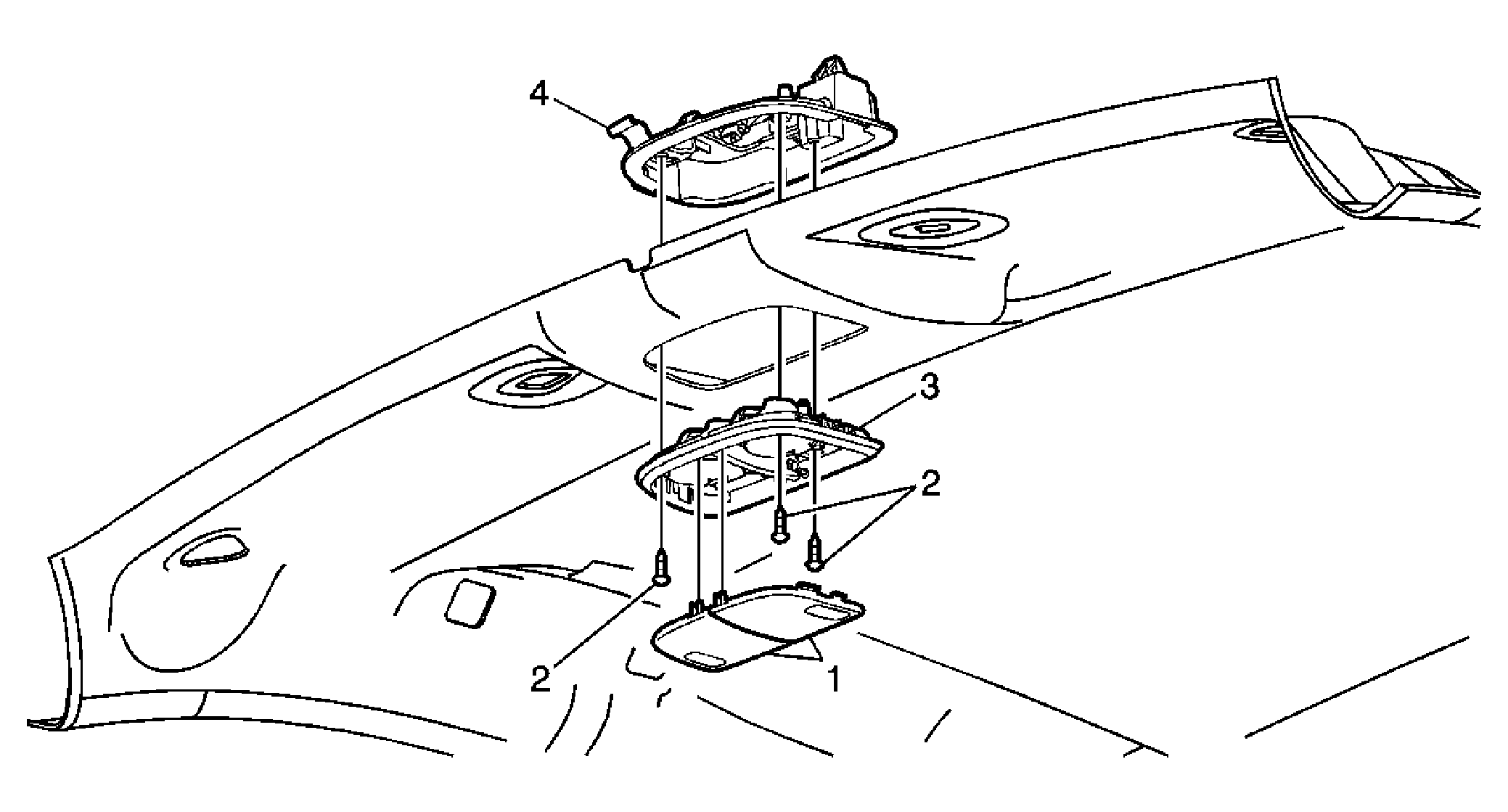

Fig 1: Replacing Courtesy Lamp - Overhead Console (Without Sunroof)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Reading Lamp Lens Tip: Use a small flat-bladed tool to release the lens from the roof console. The bulbs can be removed by pulling downward.
2	Roof Console Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Roof Console Courtesy and Reading Lamp Assembly Tip: Disconnect the electrical connectors.
4	Backing Plate Retainer Tip: The headliner must be lowered to remove the backing plate retainer. Refer to Headlining Trim Panel Replacement .
