Backup Lamp Bulb Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

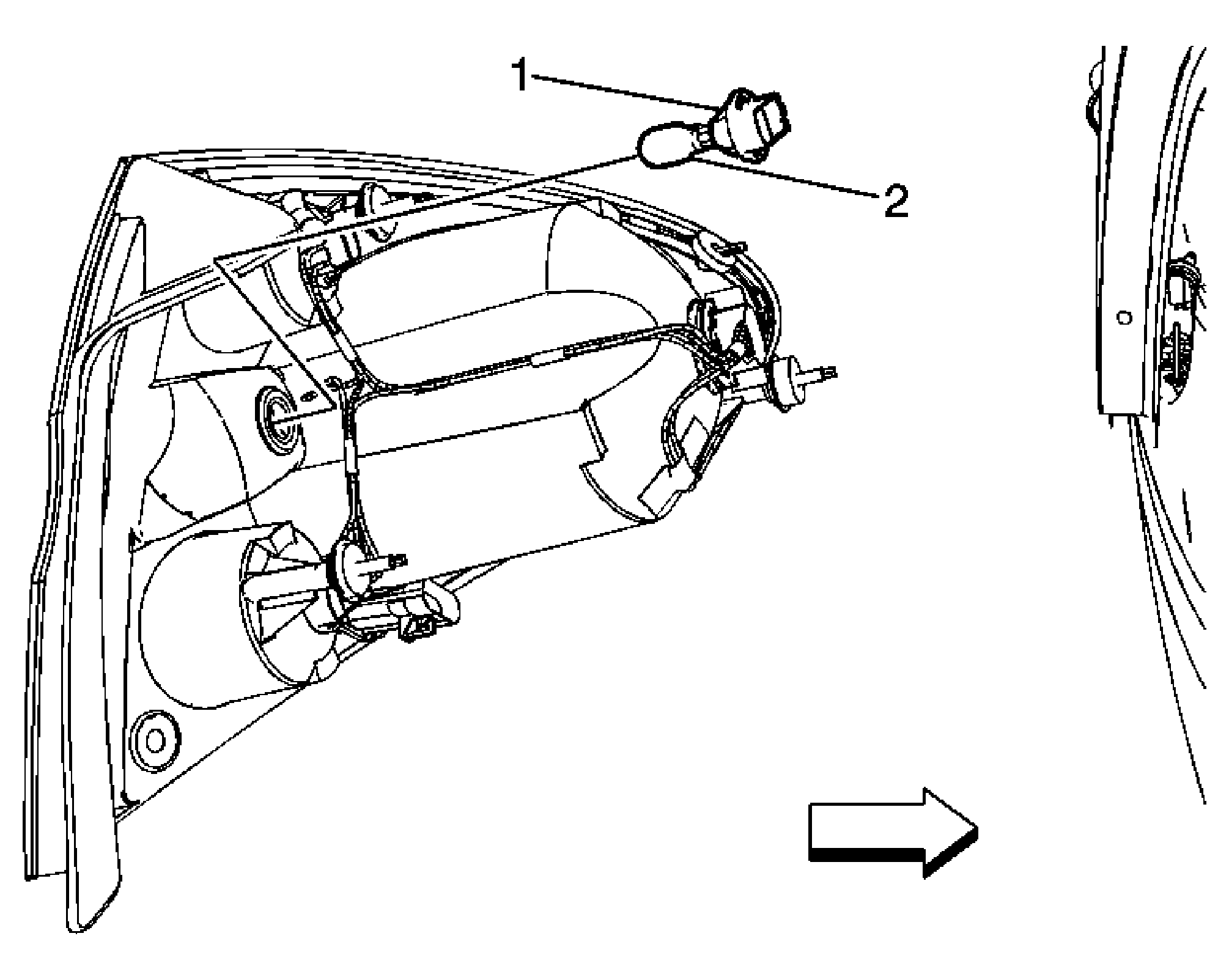

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the LR or RR tail lamp assembly. Refer to Tail Lamp Replacement . |
|
| 1 | Reverse Lamp Socket Tip: Turn the lamp socket a quarter turn counterclockwise and remove it from the lamp assembly. |
| 2 | Reverse Lamp Bulb
CAUTION:
Refer to Halogen Bulb Caution
.
|
