Steering Column Disassembled View (Column Shift)

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

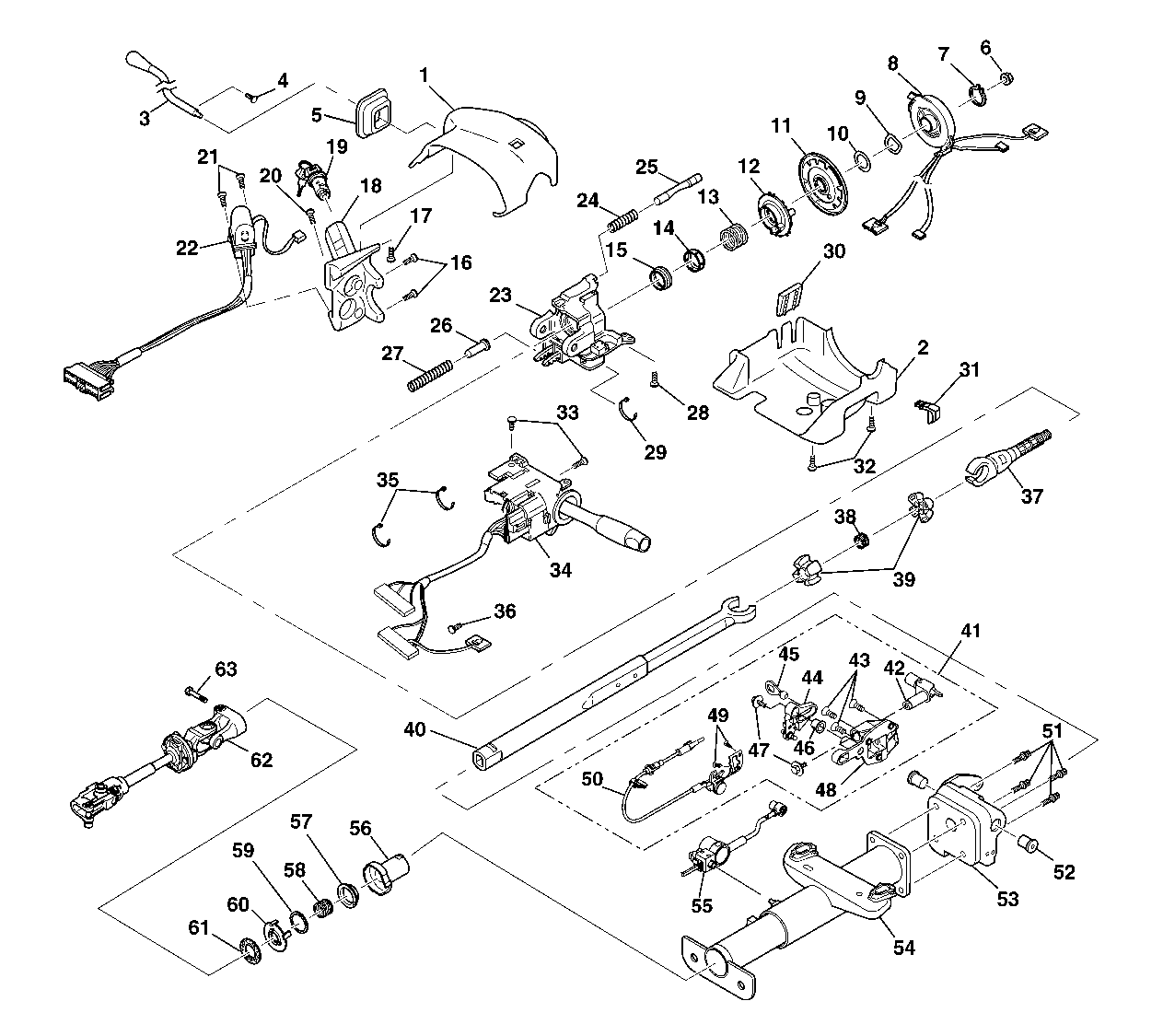

Fig 1: Tilt Steering Column Disassembled View, Column Shift

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Trim Cover
2	Lower Trim Cover
3	Shift Lever Assembly
4	Shift Lever Screw
5	Shift Lever Seal
6	Flanged Prevailing Torque Nut
7	Retaining Ring
8	SIR Coil
9	Wave Washer
10	Bearing Retainer
11	Shaft Lock Shield Assembly
12	Turn Signal Cancel Cam Assembly
13	Upper Bearing Spring
14	Upper Bearing Inner Race Seat
15	Inner Race
16	Pan Head Tapping Screws
17	TORX® Head Screw
18	Ignition Lock Cylinder Case Assembly
19	Steering Column Lock Cylinder Set
20	Pan Head Tapping Screw
21	Tapping Screws
22	Ignition Switch Assembly
23	Steering Column Tilt Head Housing Assembly
24	Lock Bolt Spring
25	Lock Bolt Assembly
26	Spring Guide
27	Tilt Spring
28	TORX® Head Screw
29	Wire Harness Strap
30	Trim Cover Protector
31	Tilt Knob
32	TORX® Head Screws
33	Pan Head Tapping Screws
34	Turn Signal and Multifunction Switch Assembly
35	Wire Harness Straps
36	Position Assurance Connector
37	Race and Upper Shaft Assembly
38	Joint Preload Spring
39	Centering Sphere
40	Lower Steering Shaft Assembly
41	Linear Shift Assembly
42	Shift Lever Clevis
43	Flat Head 6-Lobed Soc Tap Screws
44	Cable Shift Cam Assembly
45	Ball and Actuator Assembly
46	Cam Bushing
47	Hexagon Flange Head Bolts
48	Gear Shift Lever Assembly Support Bracket
49	Oval Head 6-Lobed Soc Tap Screws
50	Park Lock Cable System
51	TORX® Head Screws
52	Pivot Pins
53	Steering Column Support Assembly
54	Steering Column Jacket Assembly
55	Automatic Transmission Shift Lock Control
56	Adapter and Bearing Assembly
57	Lower Bearing Seat
58	Lower Bearing Spring
59	Lower Spring Retainer
60	Retainer
61	Steering Shaft Seal
62	Intermediate Steering Shaft Assembly
63	Pinch Bolt
