Inside Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

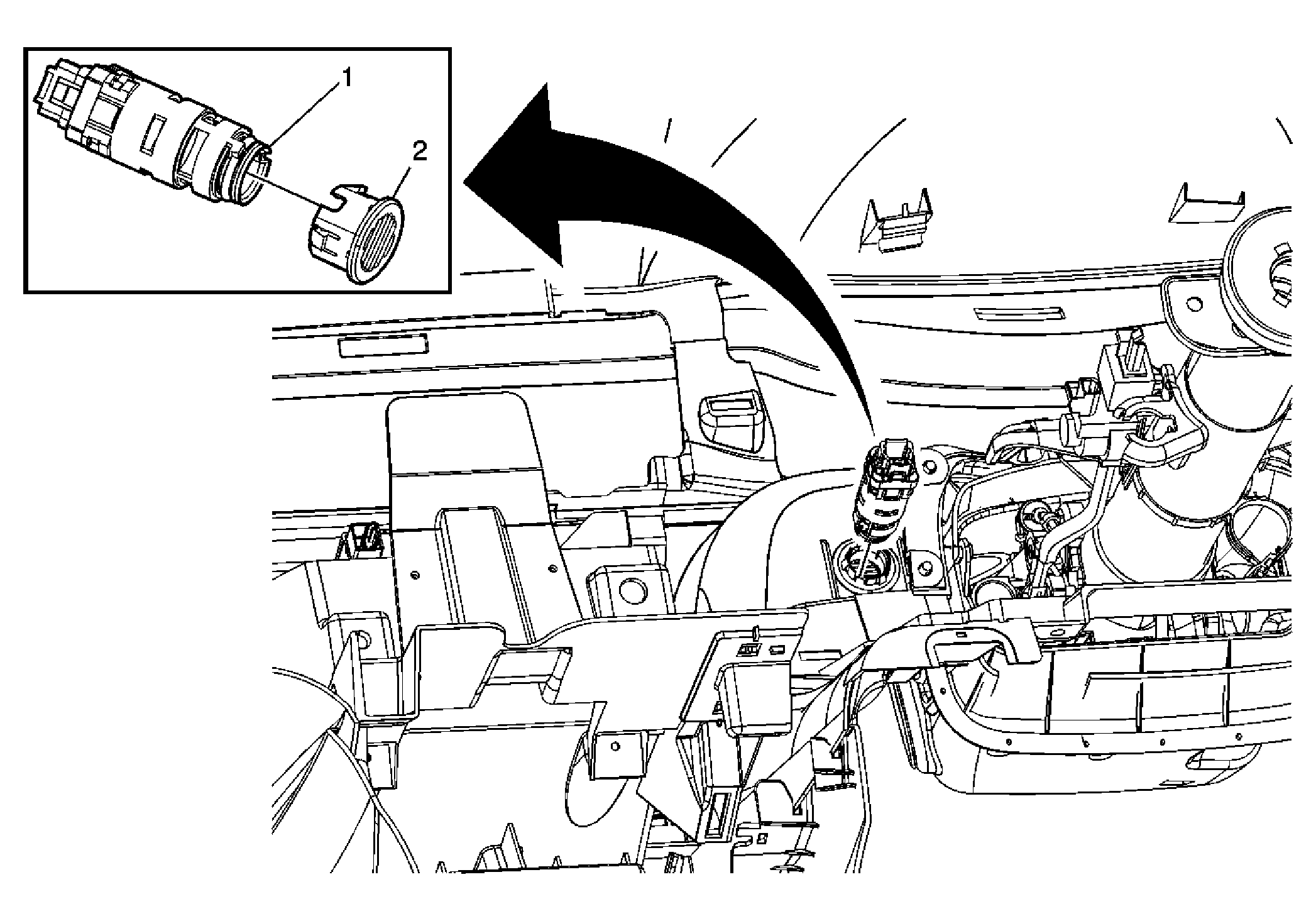

Fig 1: View Of Inside Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the knee bolster. Refer to Driver Knee Bolster Replacement .
1	Sensor, Inside Air Temperature Tip: Disconnect the electrical connector.
2	Bezel, Inside Air Temperature Sensor
