Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .

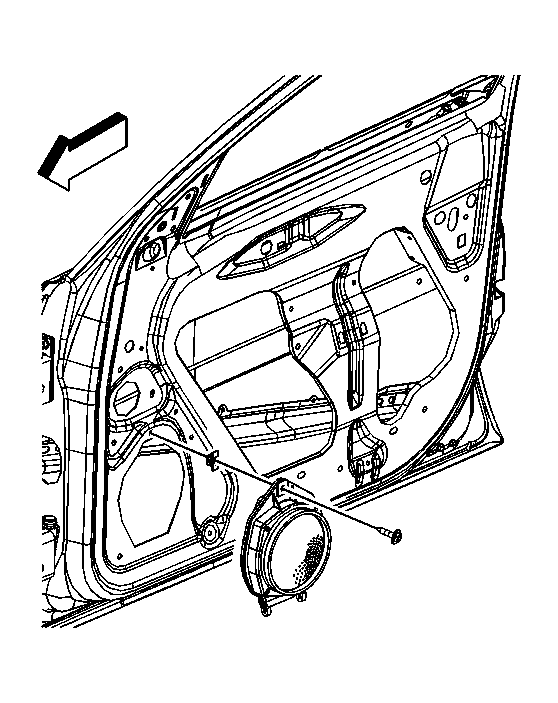

    2. Fig 1: View Of Front Door Speaker
    GM1552105Courtesy of GENERAL MOTORS CORP.
  2. Remove the front door speaker retaining screw.
  3. Disconnect the electrical connector from the front door speaker.
  4. Remove the speaker from the front door.
