Radio Front Side Door Speaker Grille Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

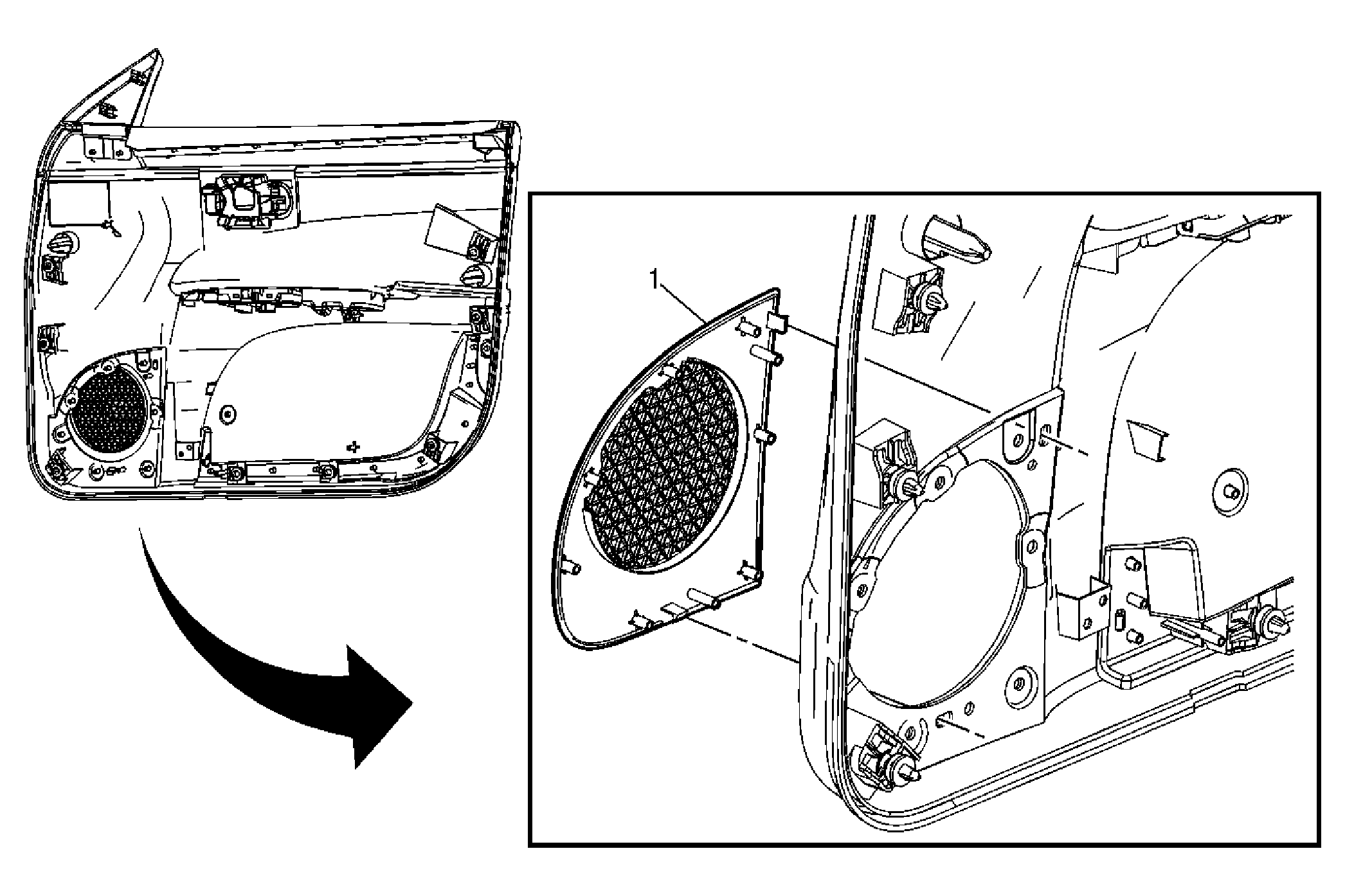

Fig 1: Identifying Front Door Speaker Grille

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Speaker Grille Assembly Tip: Use a 9/32 in (7 mm) drill bit to drill out the heat stakes that retain the speaker grille to the door panel, being careful to not enlarge the hole in the door panel. Push on the integral clips to disengage the grille from the door panel. To install the new speaker grille, hold the grille tight to the panel and use a socket and driver to push the fasteners on all of the posts.

Callout

Component Name

Preliminary Procedure:
Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .

Front Side Door Speaker Grille Assembly
Tip:

Use a 9/32 in (7 mm) drill bit to drill out the heat stakes that retain the speaker grille to the door panel, being careful to not enlarge the hole in the door panel.
Push on the integral clips to disengage the grille from the door panel.
To install the new speaker grille, hold the grille tight to the panel and use a socket and driver to push the fasteners on all of the posts.
