Suction Screen Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

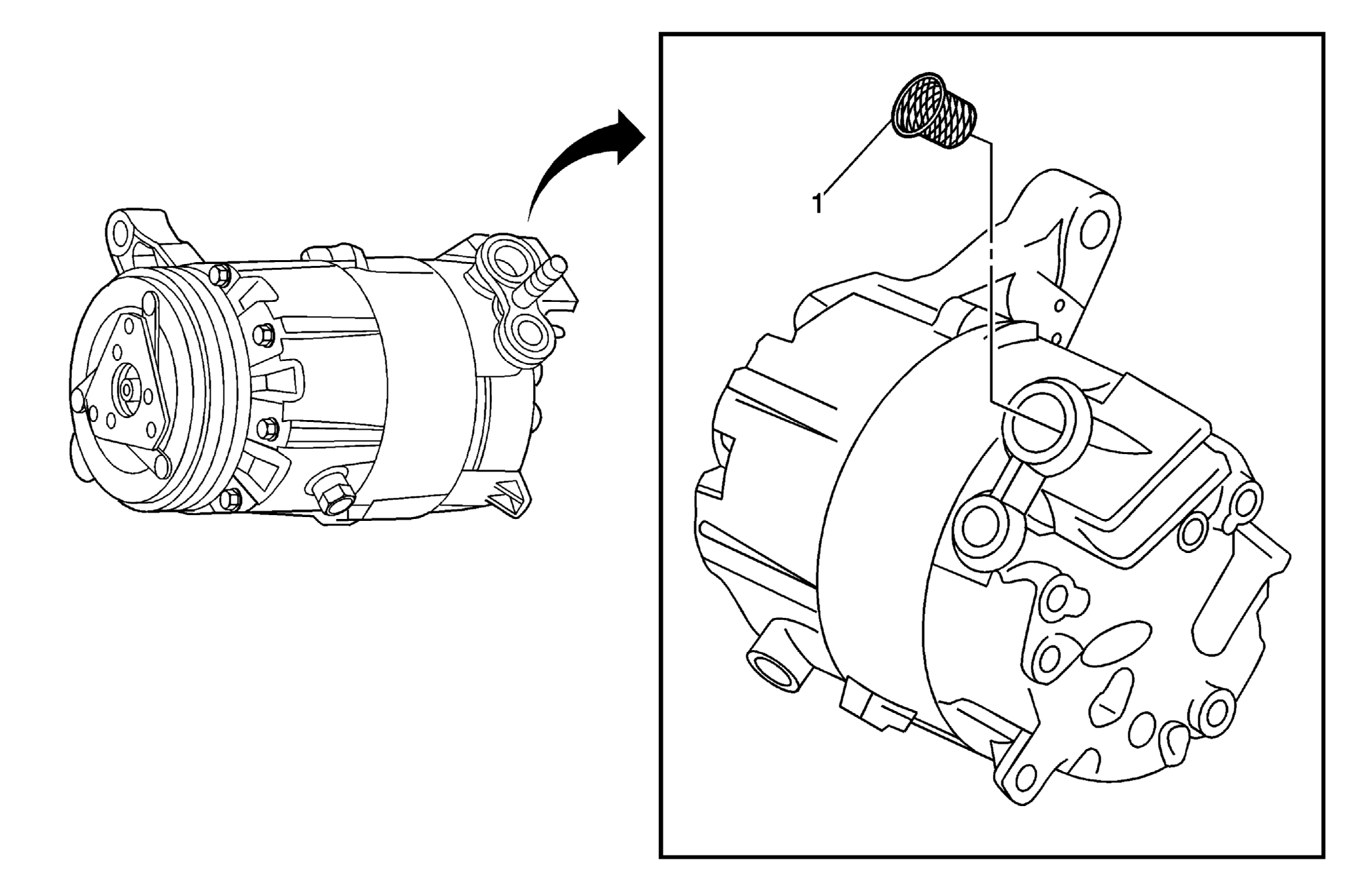

Fig 1: Identifying Suction Screen
GM1718159Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the A/C compressor. Refer to Compressor Replacement (L26)  or Compressor Replacement (LY7)  or Compressor Replacement (LS4) .
1 Suction Screen
Tip:  Remove the suction screen from the A/C compressor suction port using a flat bladed tool or pick.
