Side Window Defogger Outlet Grille Replacement - Right Side
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

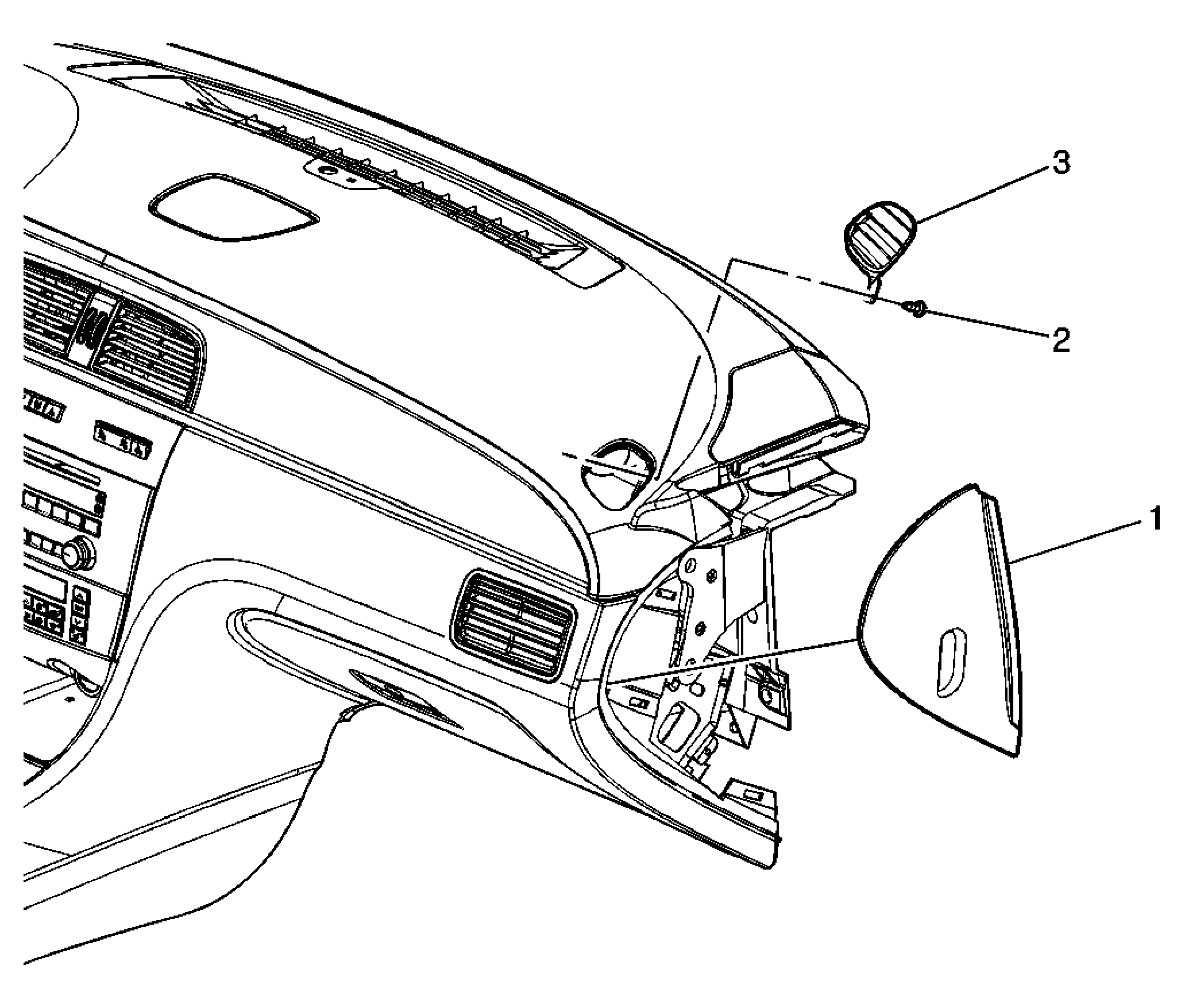

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
. |
|
| 1 | Fuse Block Access Panel |
| 2 | Air Outlet Side Window Screw Tip: Use a flexible driver with a Phillips bit to remove the side window defog outlet grille screw. Tighten: 2 N.m (18 lb in) |
| 3 | Air Side Window Outlet - Right |
