Instrument Panel Center Air Outlet Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

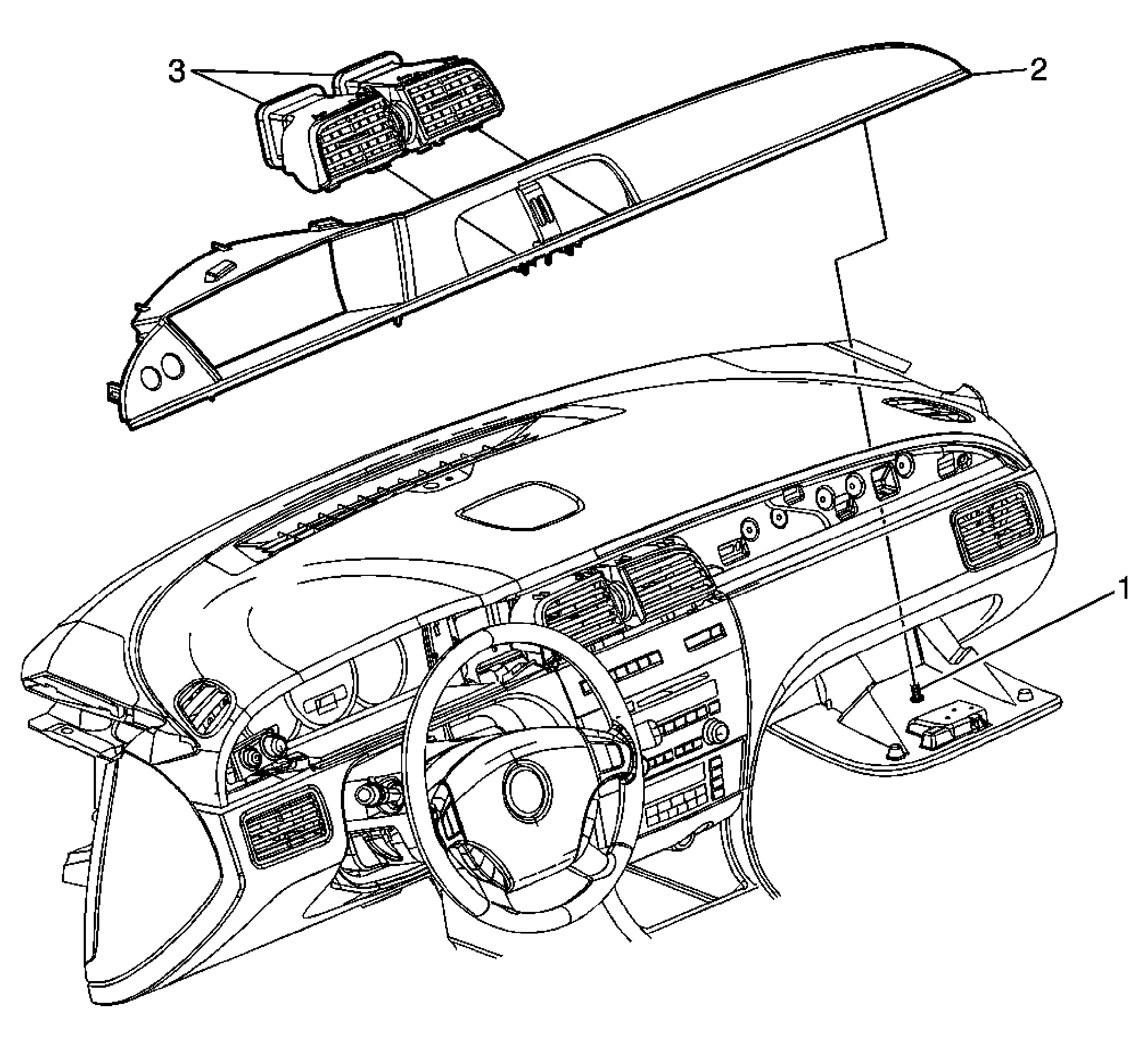

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster Bezel Screw
NOTE:
Refer to Fastener Notice
. Tip: The screw can be accessed by opening the instrument panel compartment. Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Cluster Trim Plate Tip: Pull the trim plate away from the instrument panel far enough to disconnect the headlamp switch electrical connector, then remove from the vehicle. |
| 3 | Instrument Panel Center Air Outlet Assembly |
