Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (L26, LY7 GE 47716 Fill) or Cooling System Draining and Filling (L26 Static Fill) or Cooling System Draining and Filling (LY7 Static Fill) or Cooling System Draining and Filling (LS4 GE47716 Fill) or Cooling System Draining and Filling (LS4 Static Fill) .
  2. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .

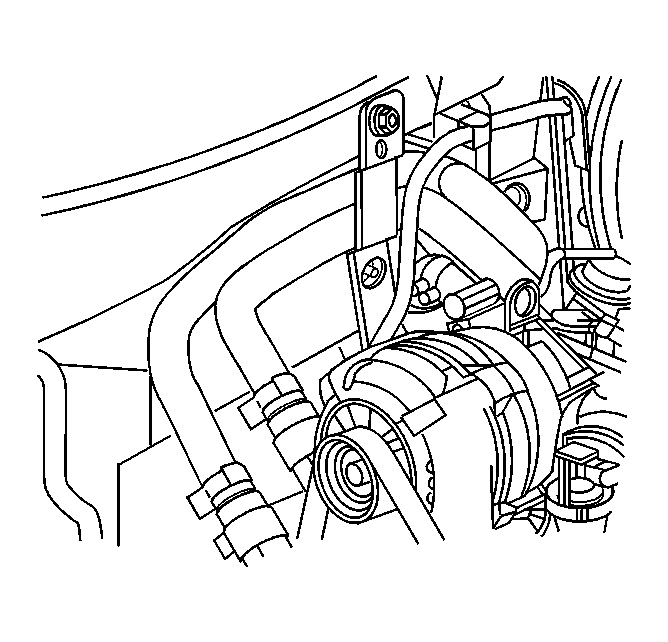

    3. Fig 1: View Of Heater Inlet Hose At Pipe Adapter
    GM415893Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the heater inlet hose from the pipe adapter.
  4. Use J 38185  in order to position aside the heater hose clamp.
    5. Fig 2: View Of Heater Pipe Adapter
    GM415895Courtesy of GENERAL MOTORS CORP.
  5. Remove the heater pipe adapter mounting bolt.
  6. Remove the heater pipe adapter.
