Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

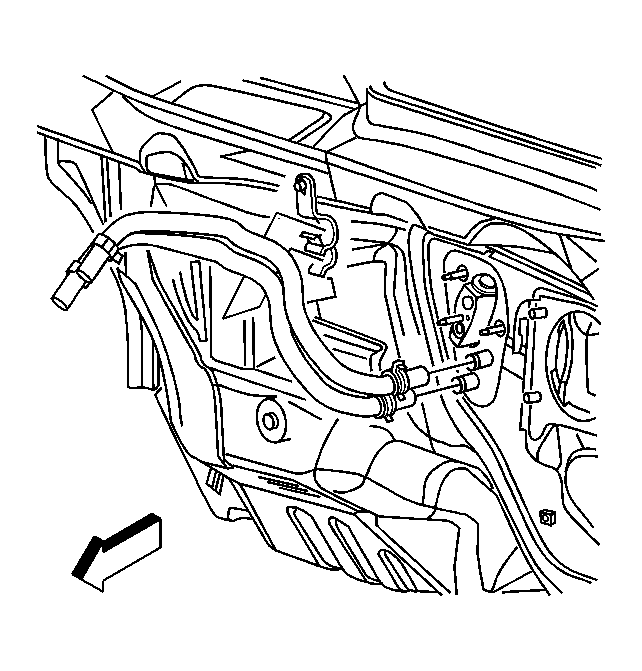

    Fig 1: View Of Heater Hose To Heater Core
    GM1204093Courtesy of GENERAL MOTORS CORP.
  1. Connect the heater inlet hose to the heater core.
  2. Use J 38185  in order to secure the heater core hose inlet clamp.
  3. Install the heater hose to the support bracket.
  4. Connect the heater inlet hose to the pipe adapter.
  5. Use J 38185  in order to secure the heater hose inlet clamp.
  6. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  7. Fill the cooling system. Refer to Cooling System Draining and Filling (L26, LY7 GE 47716 Fill) or Cooling System Draining and Filling (L26 Static Fill) or Cooling System Draining and Filling (LY7 Static Fill) or Cooling System Draining and Filling (LS4 GE47716 Fill) or Cooling System Draining and Filling (LS4 Static Fill) .
