Defroster Air Outlet Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

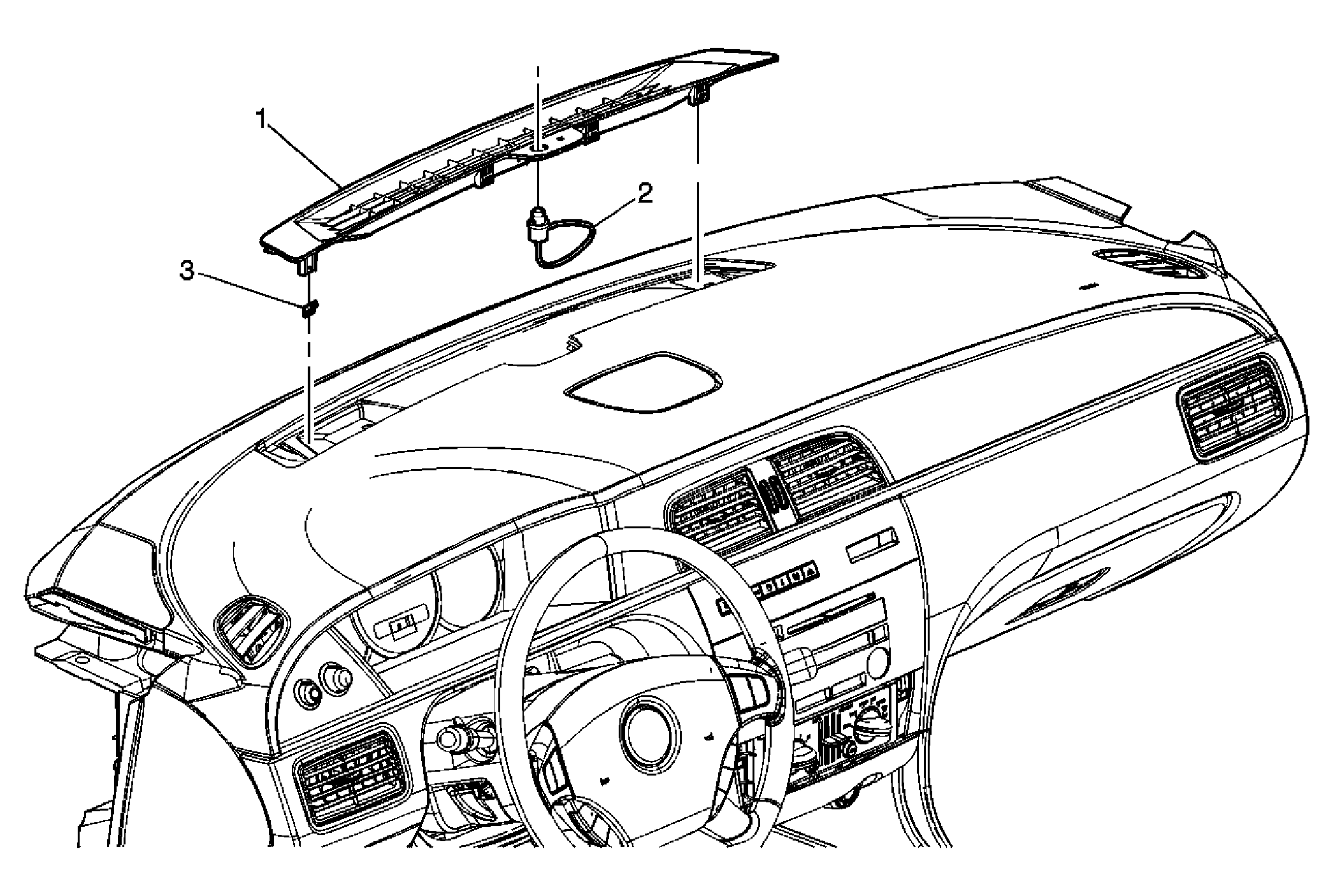

| Callout |
Component Name |
| 1 |
Air Defroster Outlet
Tip:
Held in with clips. |
| 2 |
Daytime Running Lamps Sensor
Tip:
Remove the daytime running lamps sensor from the air outlet defroster and if equipped, the security system LED. |
| 3 |
Air Outlet Defroster Clip (Qty: 4) |
