Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. If replacing the condenser, add refrigerant oil to the condenser. Refer to Refrigerant System Capacities  for system capacity information.
  2. Install the condenser to the vehicle.
  3. Install a new seal washer onto the A/C compressor hose. Refer to Sealing Washer Replacement .
  4. Install new O-ring seals onto the evaporator tube. Refer to O-Ring Replacement .
  5. Install the radiator. Refer to Radiator Replacement (L26, LY7) or Radiator Replacement (LS4) .

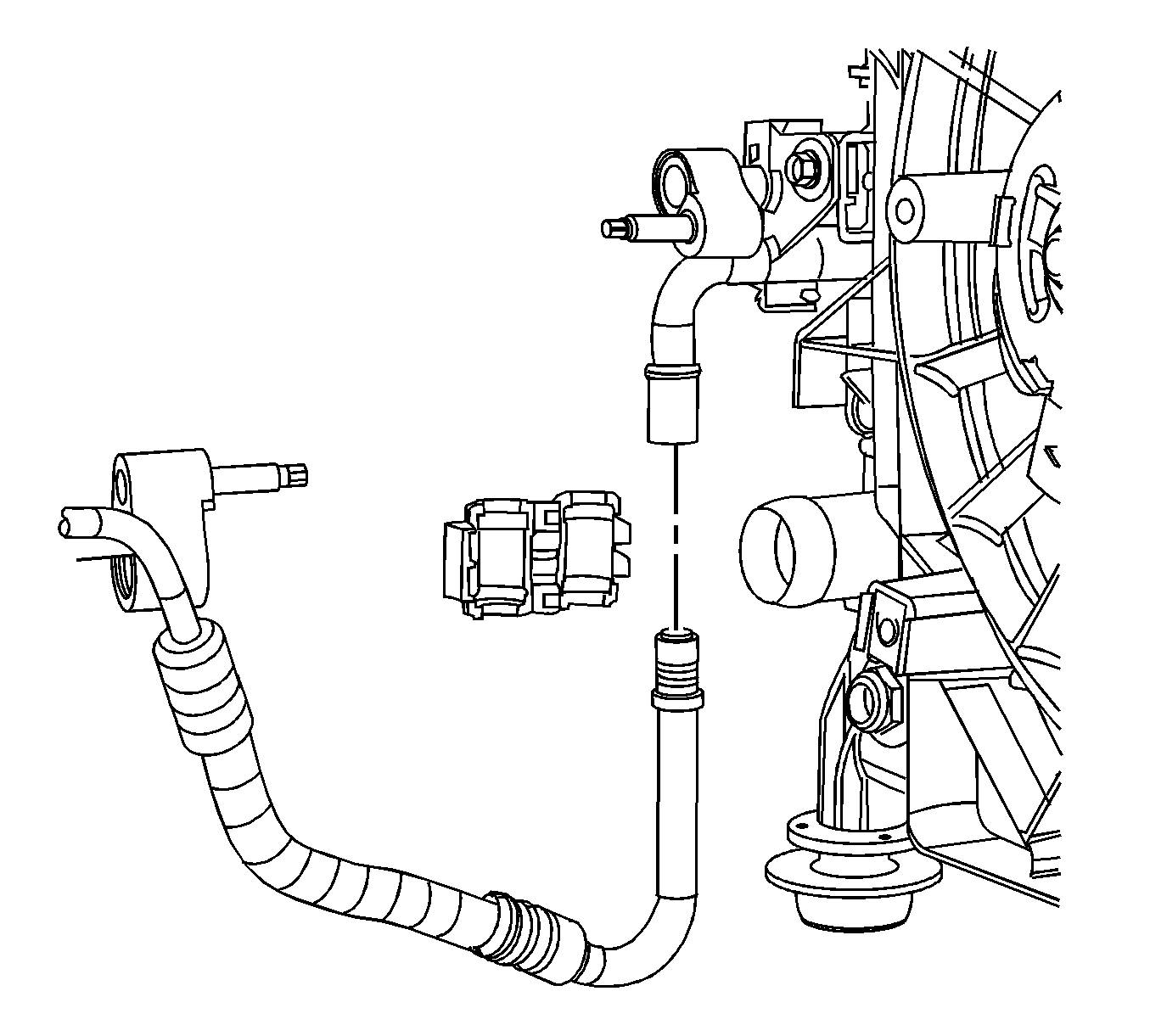

    6. Fig 1: View Of A/C Line Coupling At Condenser Tube
    GM1643649Courtesy of GENERAL MOTORS CORP.
  6. Install the evaporator tube to the condenser tube.
  7. Install the A/C line coupling to the evaporator tube and the condenser tube. Refer to Air Conditioning Line/Tube Connector Removal/Replacement .

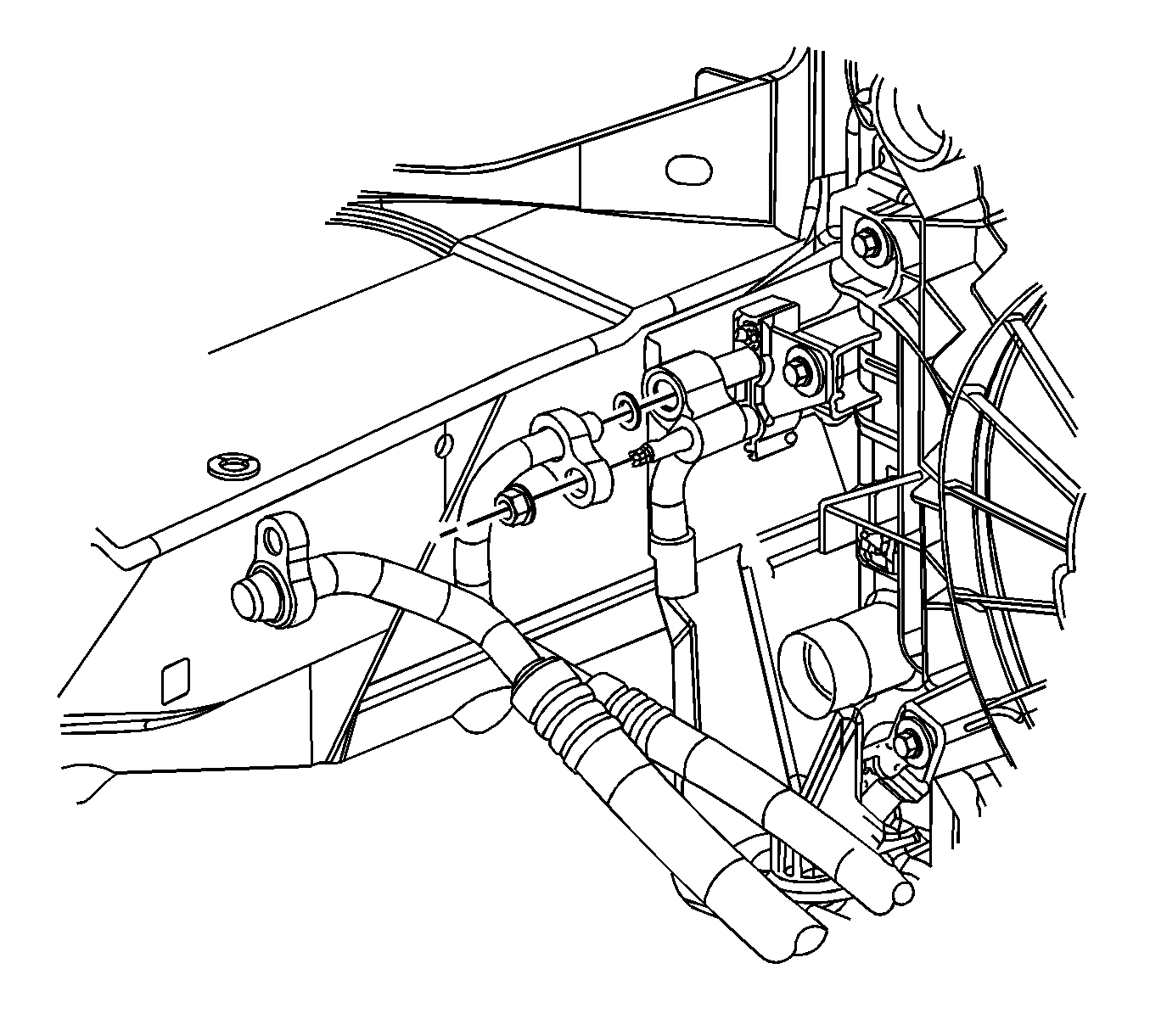

    8. Fig 2: Identifying A/C Compressor Hose Nut
    GM1615548Courtesy of GENERAL MOTORS CORP.
  8. Install the A/C compressor hose to the condenser.
    9. NOTE: Refer to Fastener Notice .
    IMPORTANT: Use a 20mm wrench or pliers to hold the A/C condenser block fitting, this will prevent the A/C line from twisting while torquing the A/C line nut.
  9. Install the A/C compressor hose block fitting nut to the condenser.

    Tighten:  Tighten the nut to 17 N.m (12.5 lb ft).

  10. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  11. Leak test the fittings of the component using J 39400-A  . See Special Tools .
