Draining Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Drain and measure as much of the refrigerant oil as possible from the removed compressor.

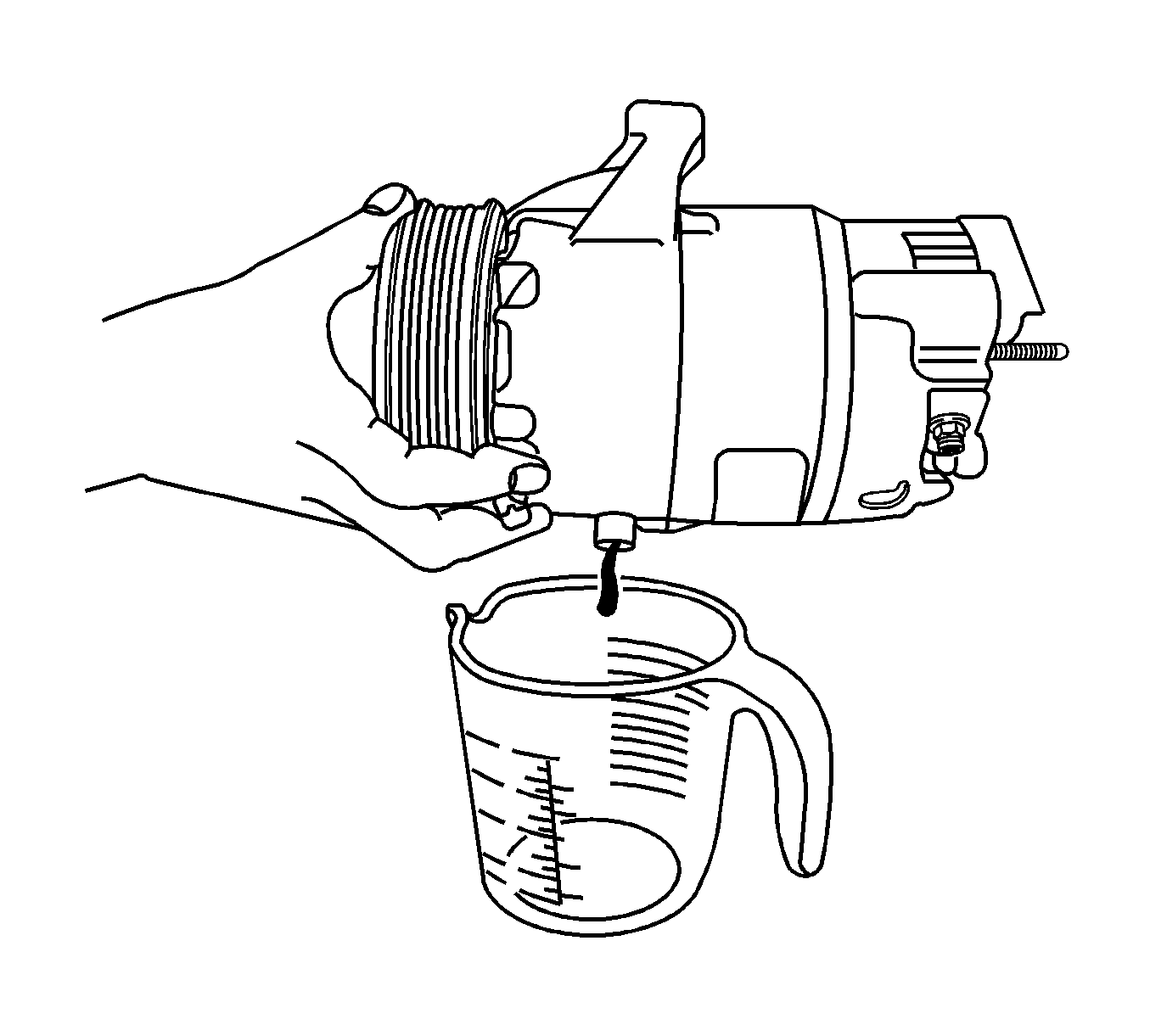

    Fig 1: Draining Oil From Compressor
    GM1342638Courtesy of GENERAL MOTORS CORP.
  1. Remove the compressor crankcase oil drain plug and drain the crankcase into a clean, graduated container.
  2. Drain the oil from both the suction and discharge ports of the removed compressor into the same container.

    Rotate the compressor shaft to assist in draining the compressor.

  3. Measure and record the amount of oil drained from the removed compressor.

    This measurement will be used during installation of the replacement compressor.

  4. Properly discard the used refrigerant oil.
