Removal Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging .

Fig 1: Locating A/C Coupling Assembly's Locking Tab Access Slots

Courtesy of GENERAL MOTORS CORP.

Locate the A/C coupling assembly's locking tab access slots.

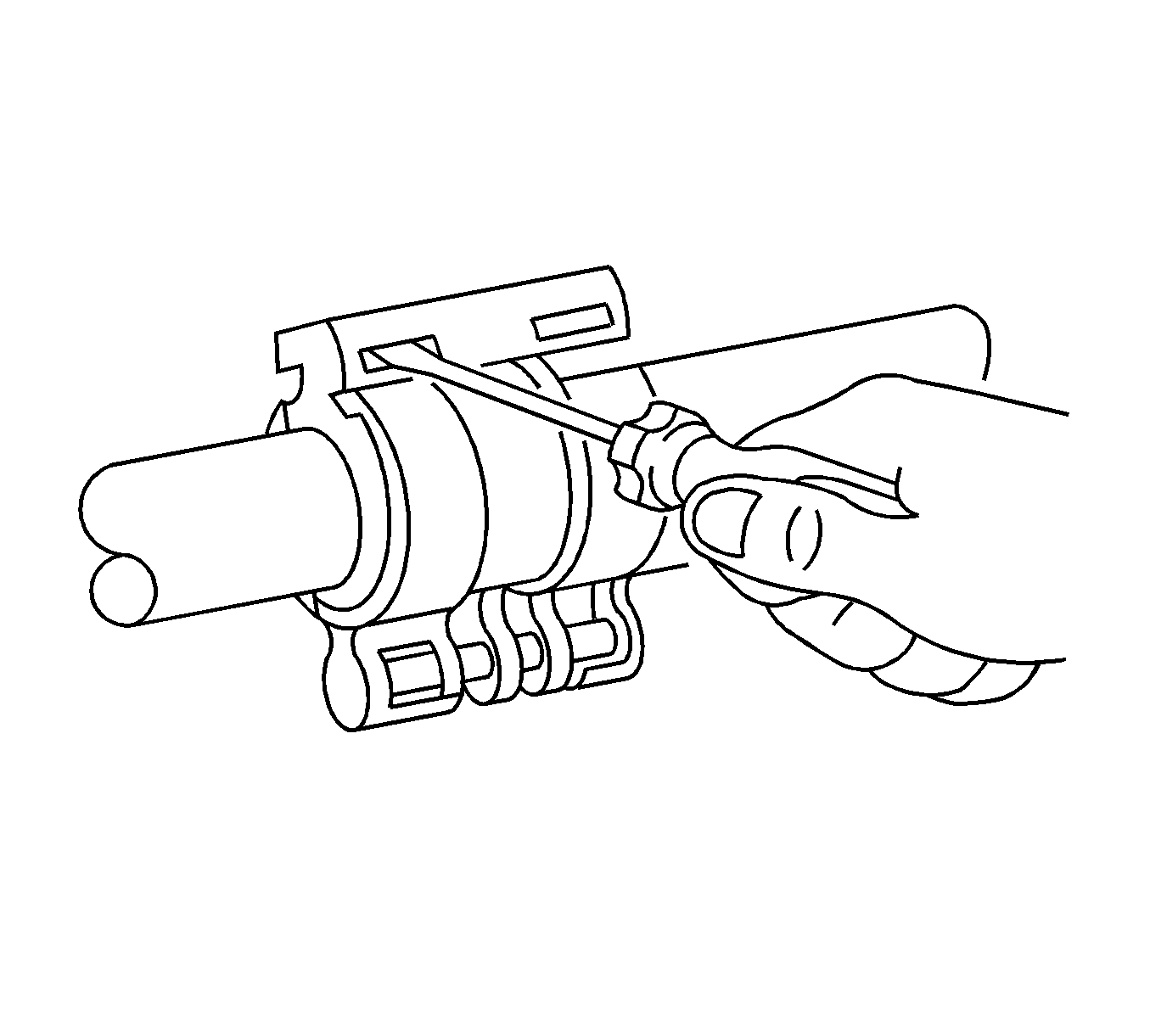

Fig 2: Releasing First Locking Tab

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: When separating the A/C coupling assembly, apply light pressure between the two halves of the coupling to prevent the locking tabs from reengaging.

Carefully insert a small flat bladed screwdriver into the first locking tab access slot and gently lift the locking tab to release the lock.

Fig 3: Releasing Second Locking Tab

Courtesy of GENERAL MOTORS CORP.

Carefully insert a small flat bladed screwdriver into the second locking tab access slot and gently lift the locking tab to release the lock.

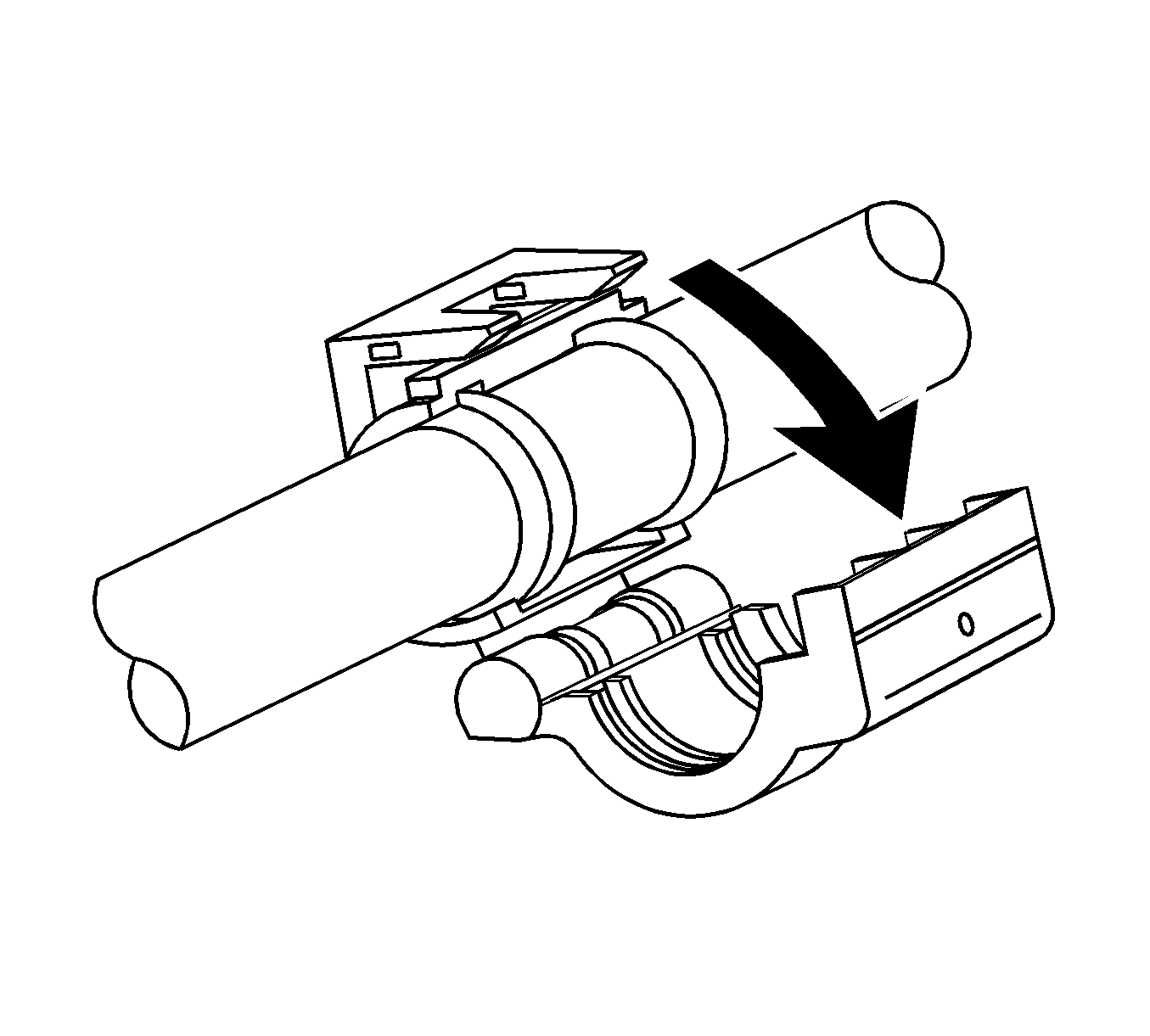

Fig 4: Identifying A/C Coupling Assembly

Courtesy of GENERAL MOTORS CORP.

Open and remove the A/C coupling assembly from the A/C refrigerant component.
