Rocker Panel Molding Replacement (Allure (Canadian) & LaCrosse Super)

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

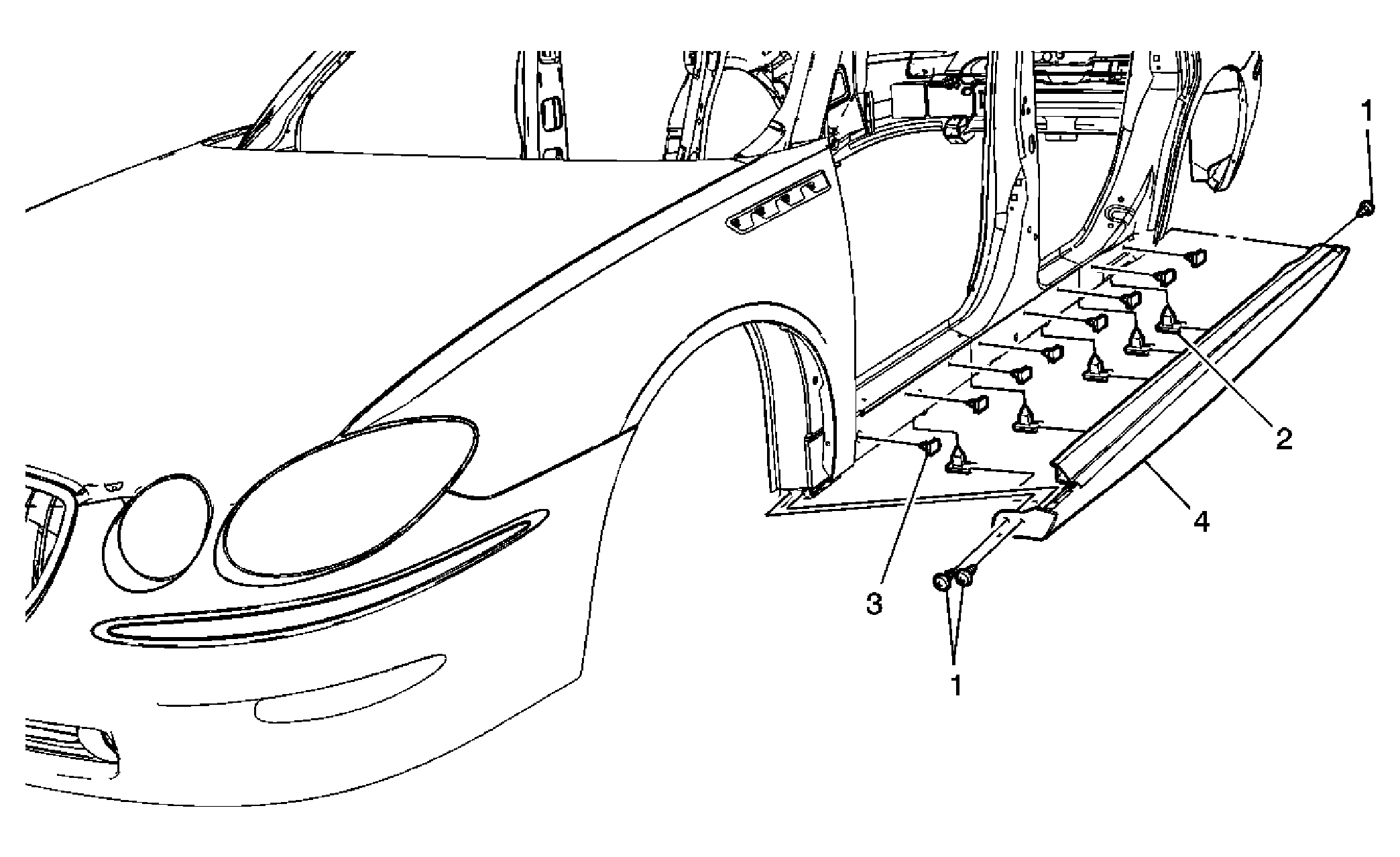

Fig 1: Identifying Rocker Panel Molding (Allure (Canadian) & LaCrosse Super)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open both doors on one side in order to remove the lower rocker panel molding. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the mud guards, (if equipped).
1	Front Wheelhouse Liner Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 1.5 N.m (13 lb in)
2	Rocker Panel Lower Retainer (Qty: 5) Tip: Using a suitable retainer release tool, disengage the lower retainers prior to releasing the upper flange retainers.
3	Upper Rocker Flange Retainer (Qty: 8) Tip: Using a suitable retainer release tool, disengage the eight retainers and remove the rocker panel molding from the lower rocker panel flange.
4	Rocker Panel Molding
