Rear Compartment Lid Emblem/Nameplate Replacement (Allure (Canadian) & LaCrosse CSX, CX)
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

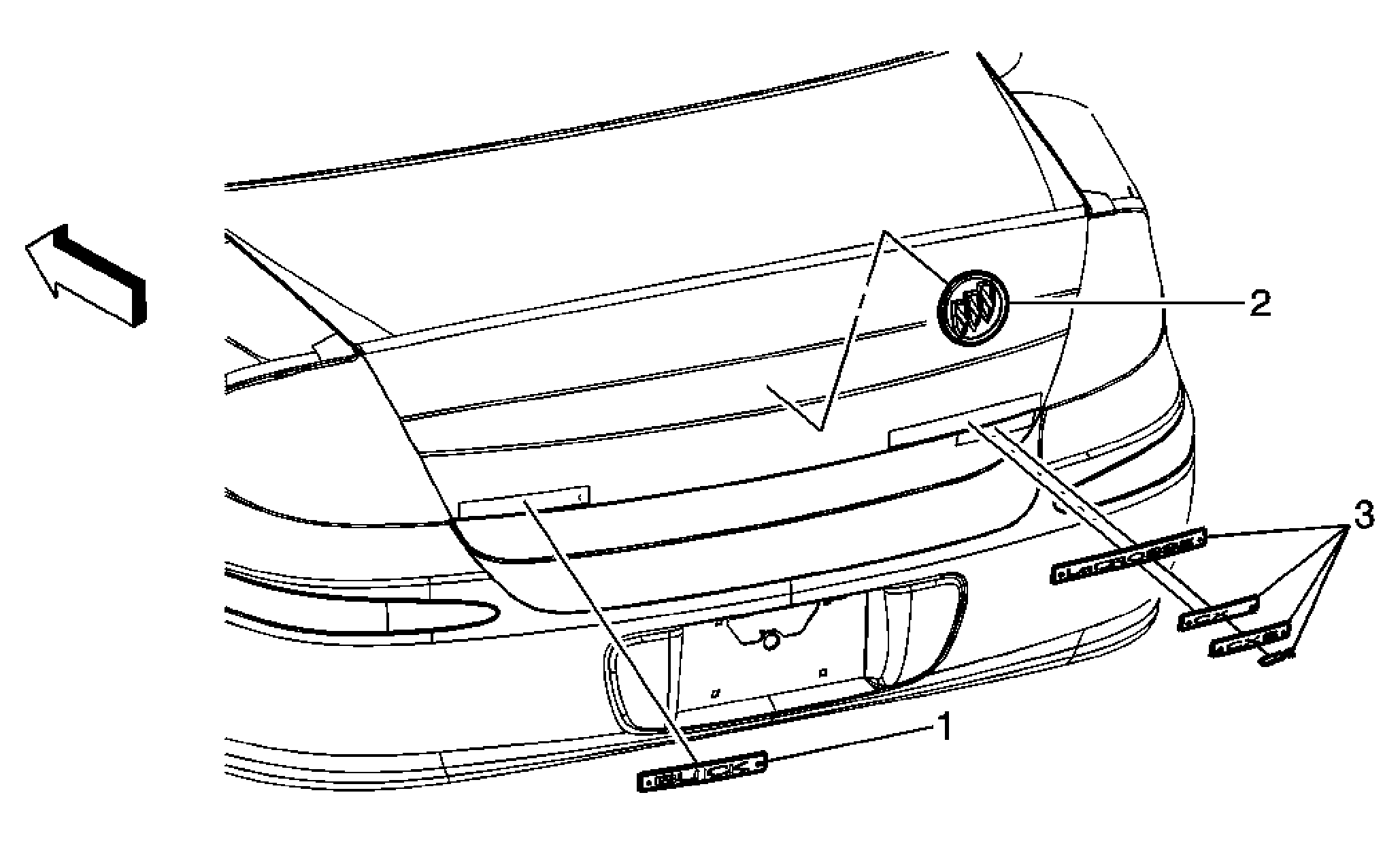

| Callout |
Component Name |
| 1 |
Rear Compartment Lid Name Plate Assembly (BUICK)
Tip:
- When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
- Use a J 25070
or equivalent to remove old nameplate. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing new nameplate.
|
| 2 |
Rear Compartment Lid Nameplate Assembly (Buick Tri-shield)
Tip:
- When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
- Use a J 25070
or equivalent to remove old emblem. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing new emblem.
|
| 3 |
Rear Compartment Lid Name Plate Assembly (CX, CXS)
Tip:
- When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
- Use a J 25070
or equivalent to remove old nameplate. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing new nameplate.
|
