Front Bumper Lower Fascia Grille Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

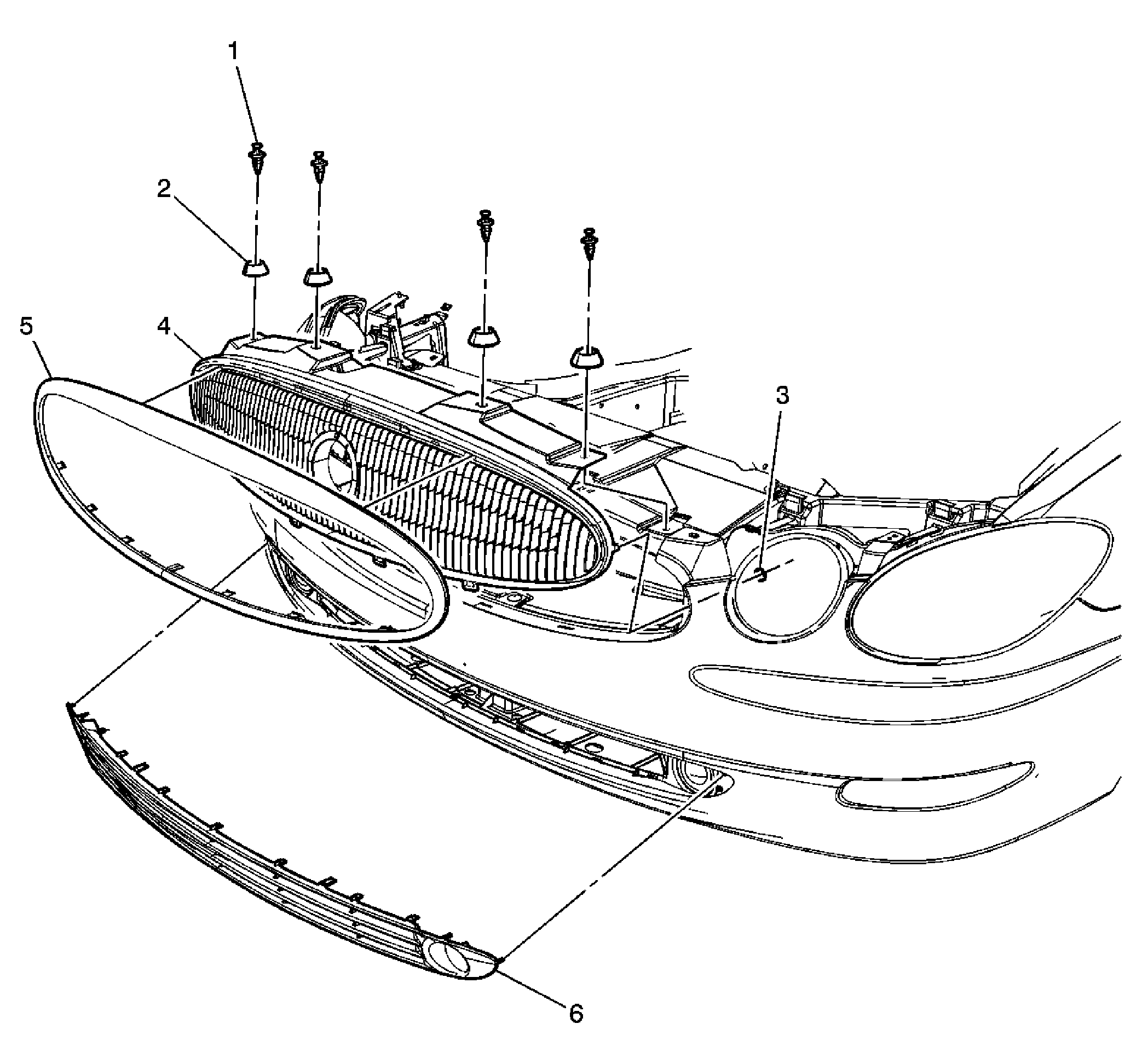

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the radiator support sight shield. Refer to Radiator Support Sight Shield Replacement . |
|
| 1 | Radiator Grille Retainer (Qty: 4) |
| 2 | Grille Retainer Bumper (Qty: 4) |
| 3 | Grille Assembly Nut (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 4 | Radiator Grille Assembly |
| 5 | Radiator Grille Molding |
| 6 | Radiator Grille Lower Screen Assembly |
