Starting and Charging Schematics

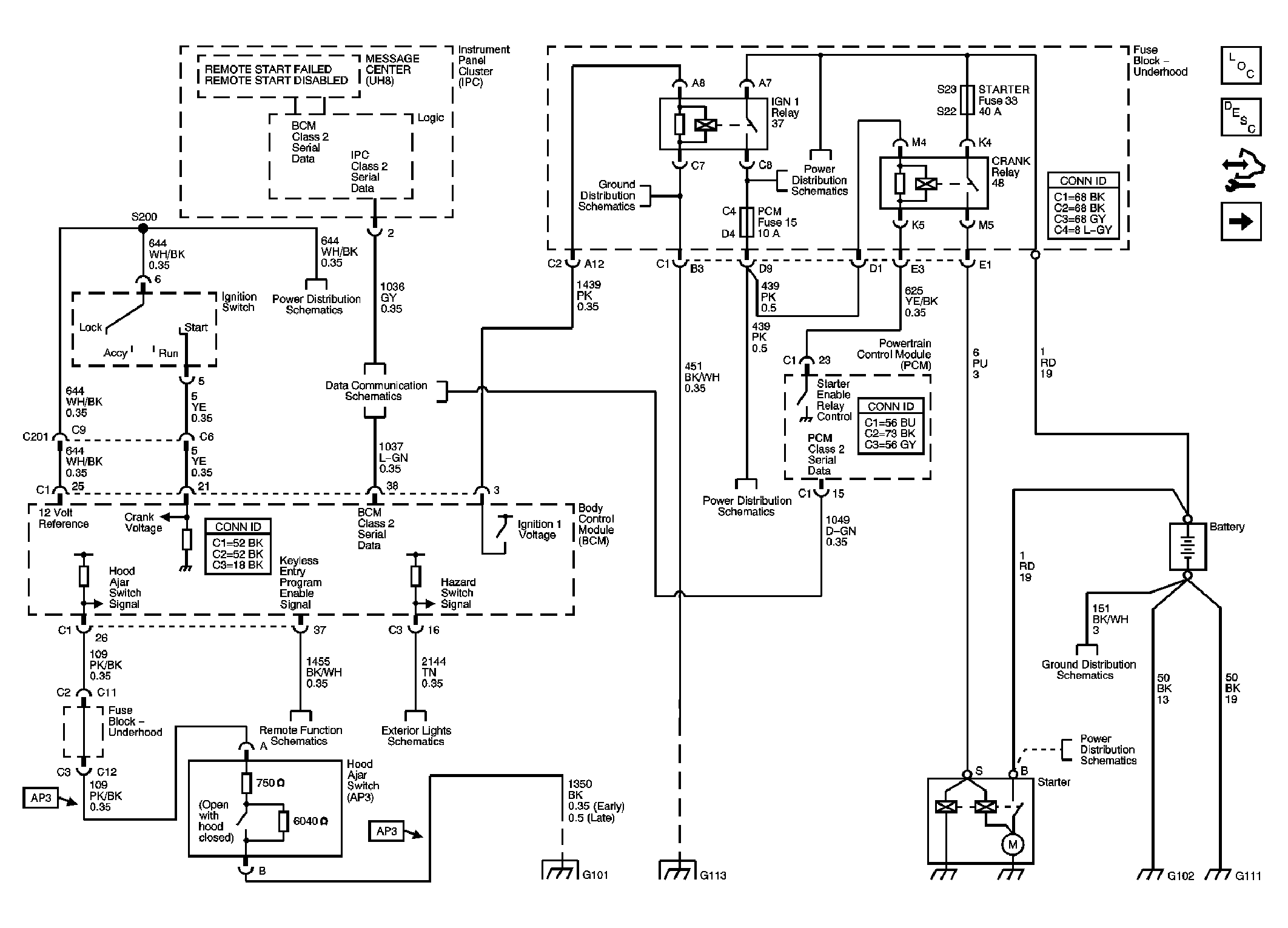

Fig 1: Starting Schematic (3.8L)
GM1801692Courtesy of GENERAL MOTORS CORP.

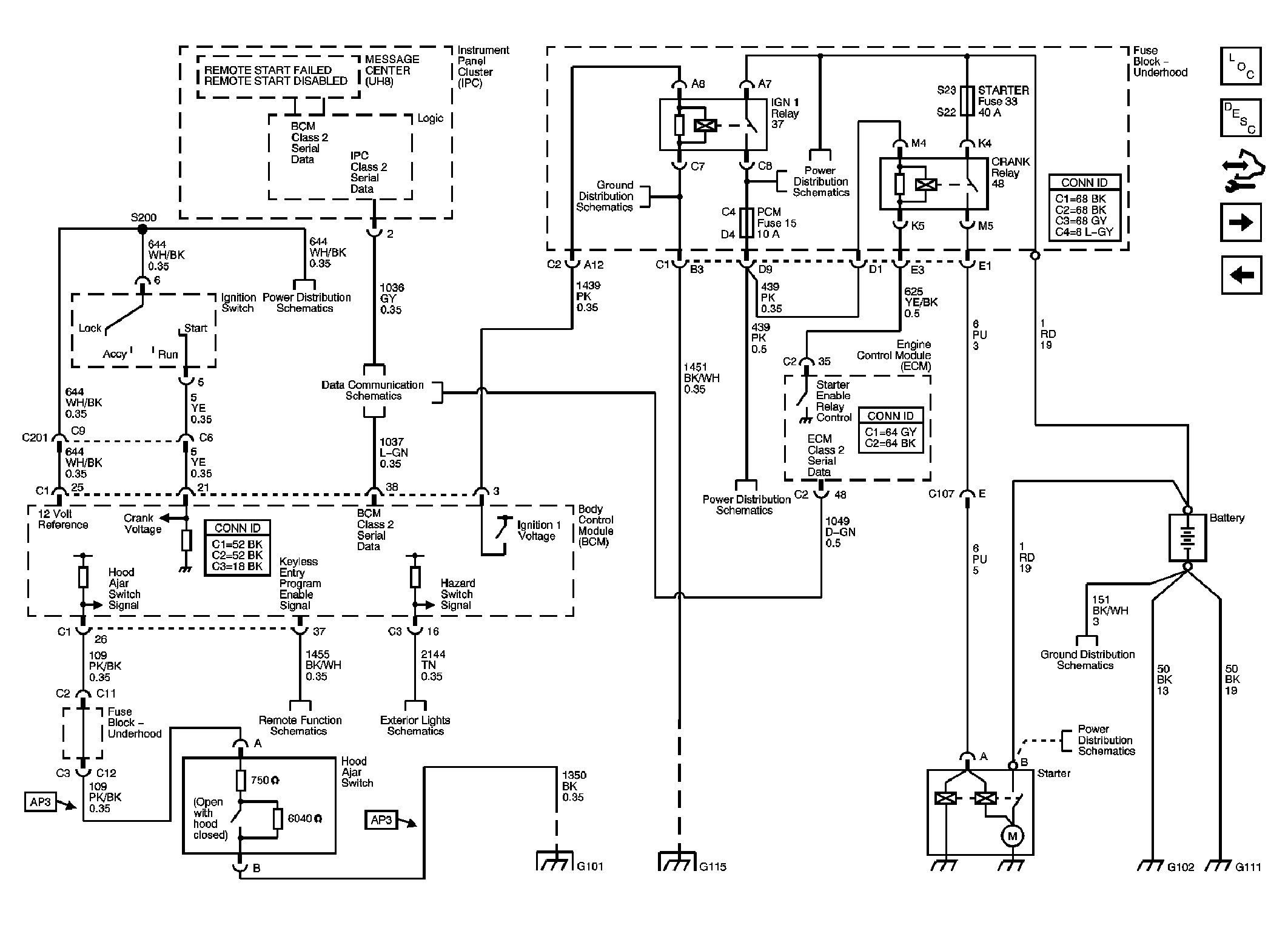

Fig 2: Starting Schematic (3.6L)
GM1801737Courtesy of GENERAL MOTORS CORP.

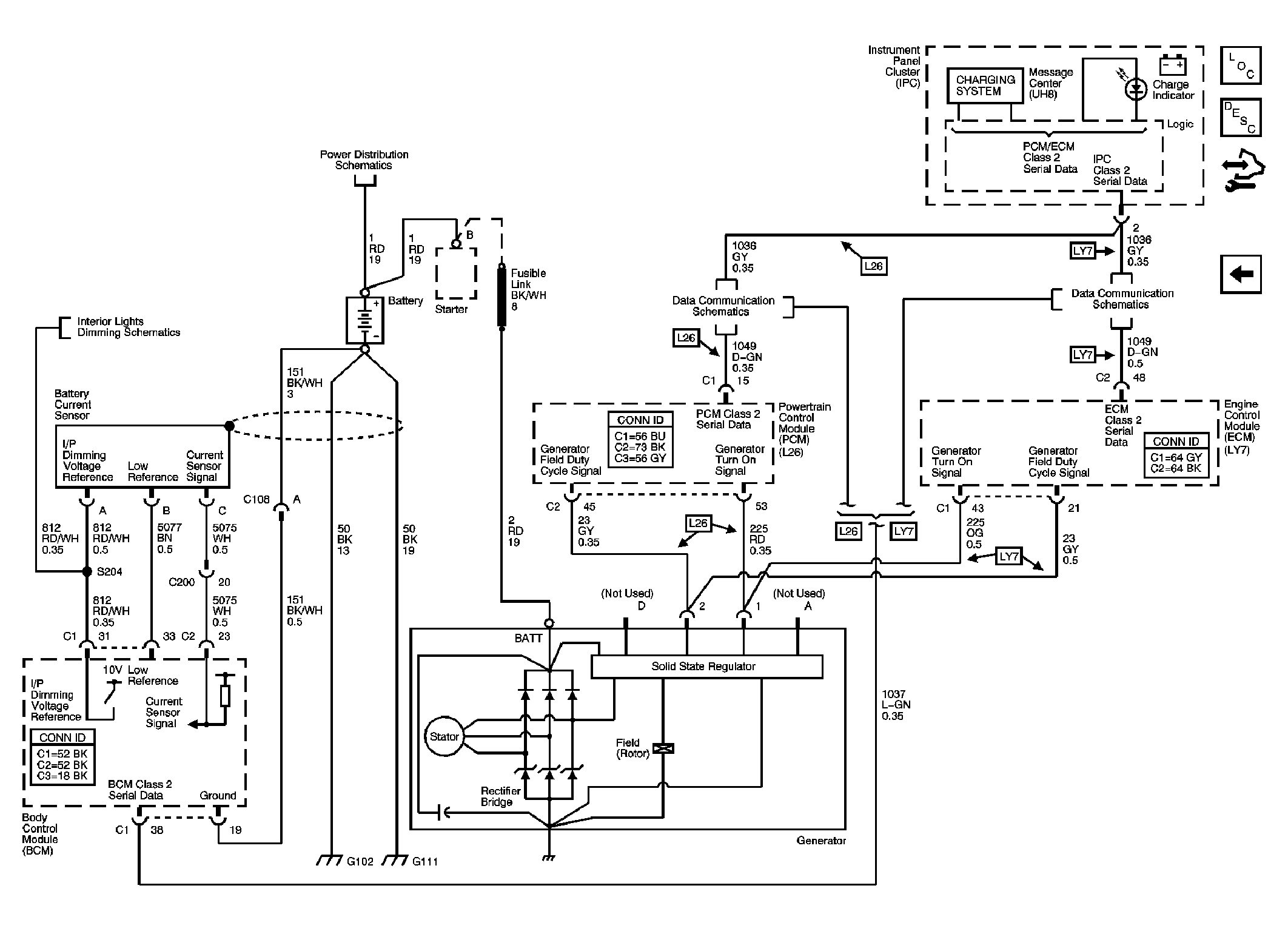

Fig 3: Charging Schematic
GM1801758Courtesy of GENERAL MOTORS CORP.
