Power Distribution Schematics

Fig 1: Fuse Block Schematic (Underhood B+ Bus)

Courtesy of GENERAL MOTORS CORP.

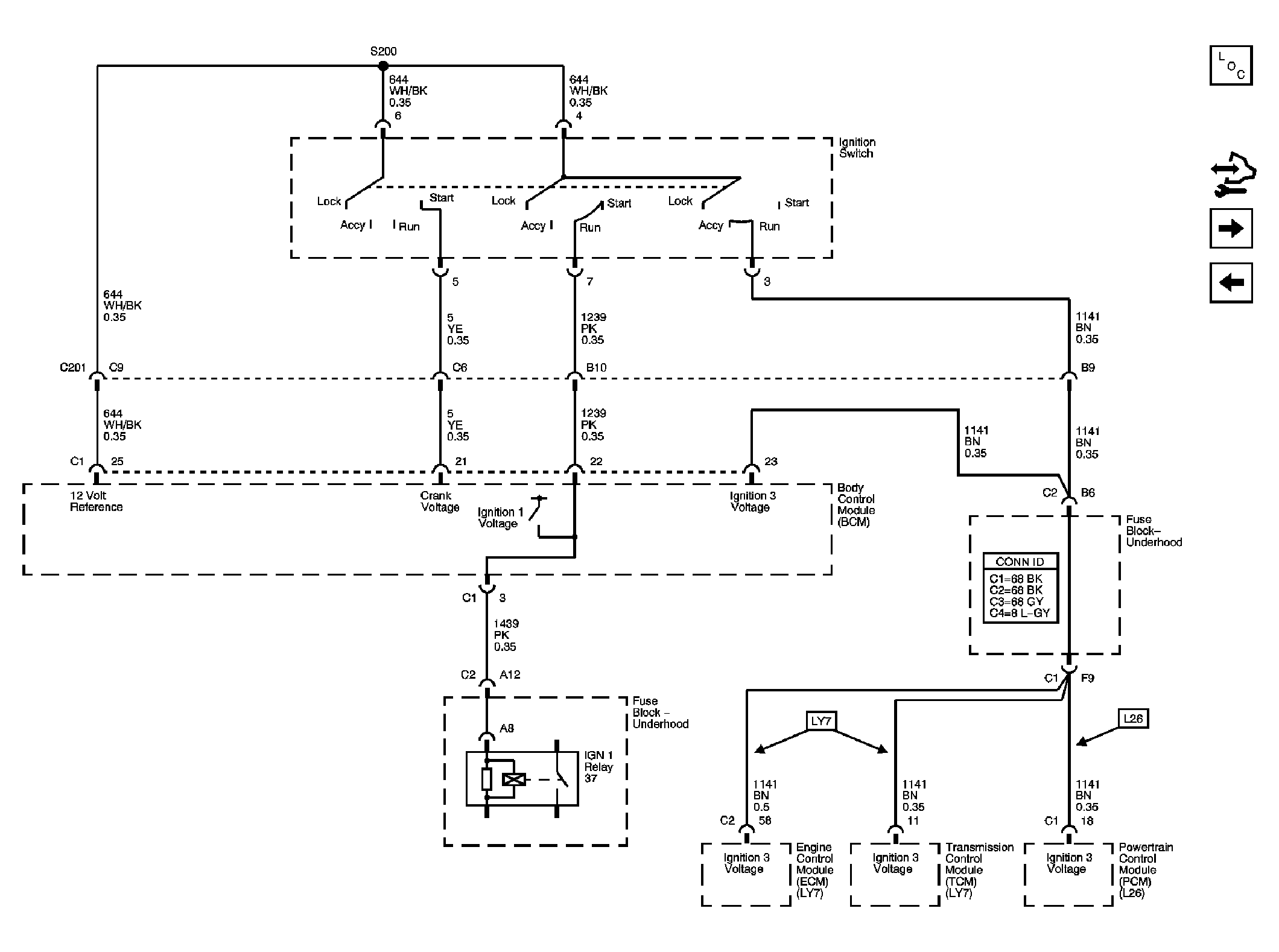

Fig 2: Ignition Switch Schematic

Courtesy of GENERAL MOTORS CORP.

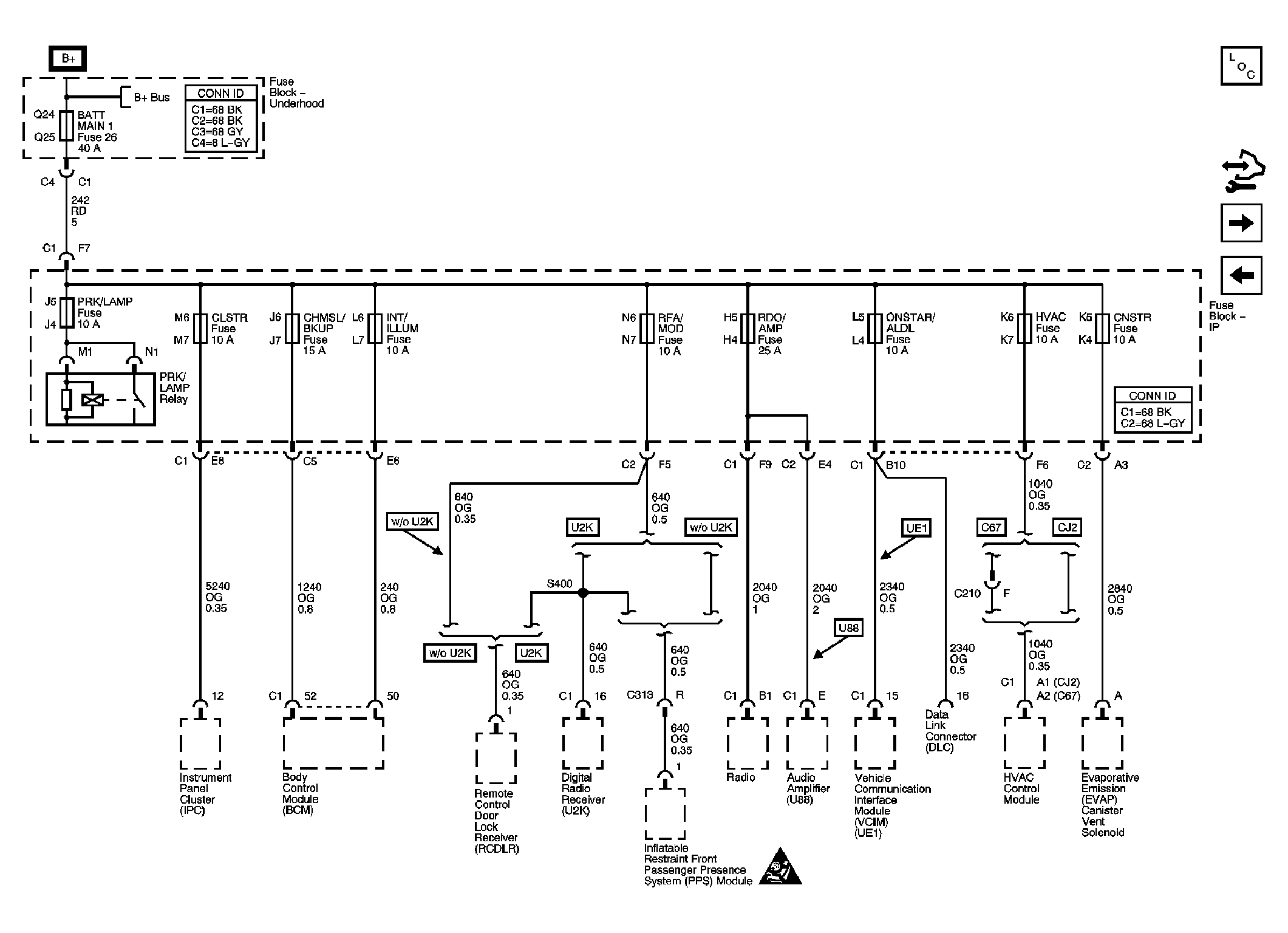

Fig 3: BATT MAIN 1, CHMSL/BKUP, CLSTR, CNSTR, HVAC, INT/ILLUM, ONSTAR/ALDL, PRK/LAMP, RDO/AMP, RFA/MOD Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

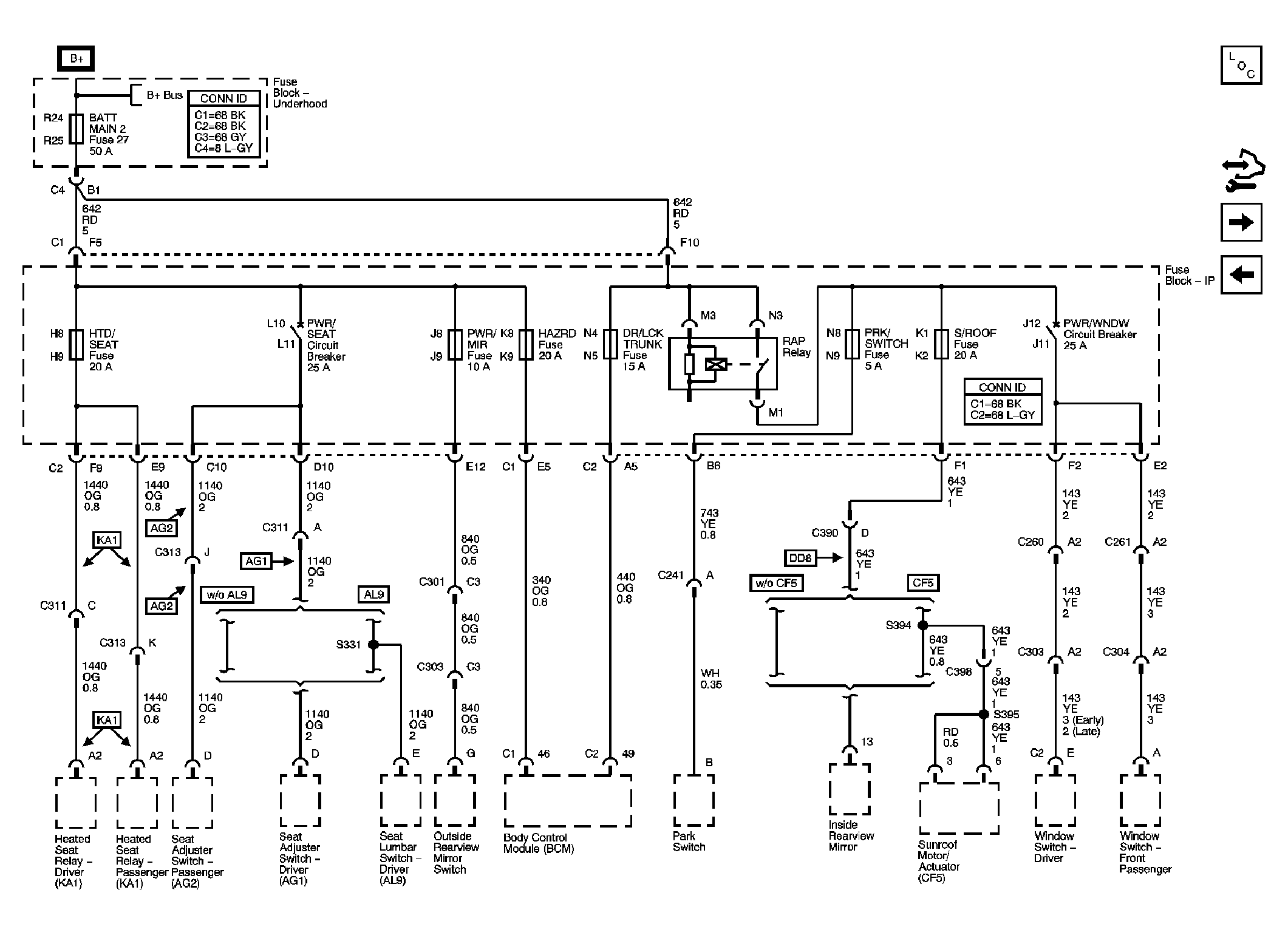

Fig 4: BATT MAIN 2, DR/LCK TRUNK, HAZRD, HTD/SEAT, PRK/SWITCH, PWR/MIR, S/ROOF Fuses and PWR/SEAT, PWR/WNDW Circuit Breakers Schematic

Courtesy of GENERAL MOTORS CORP.

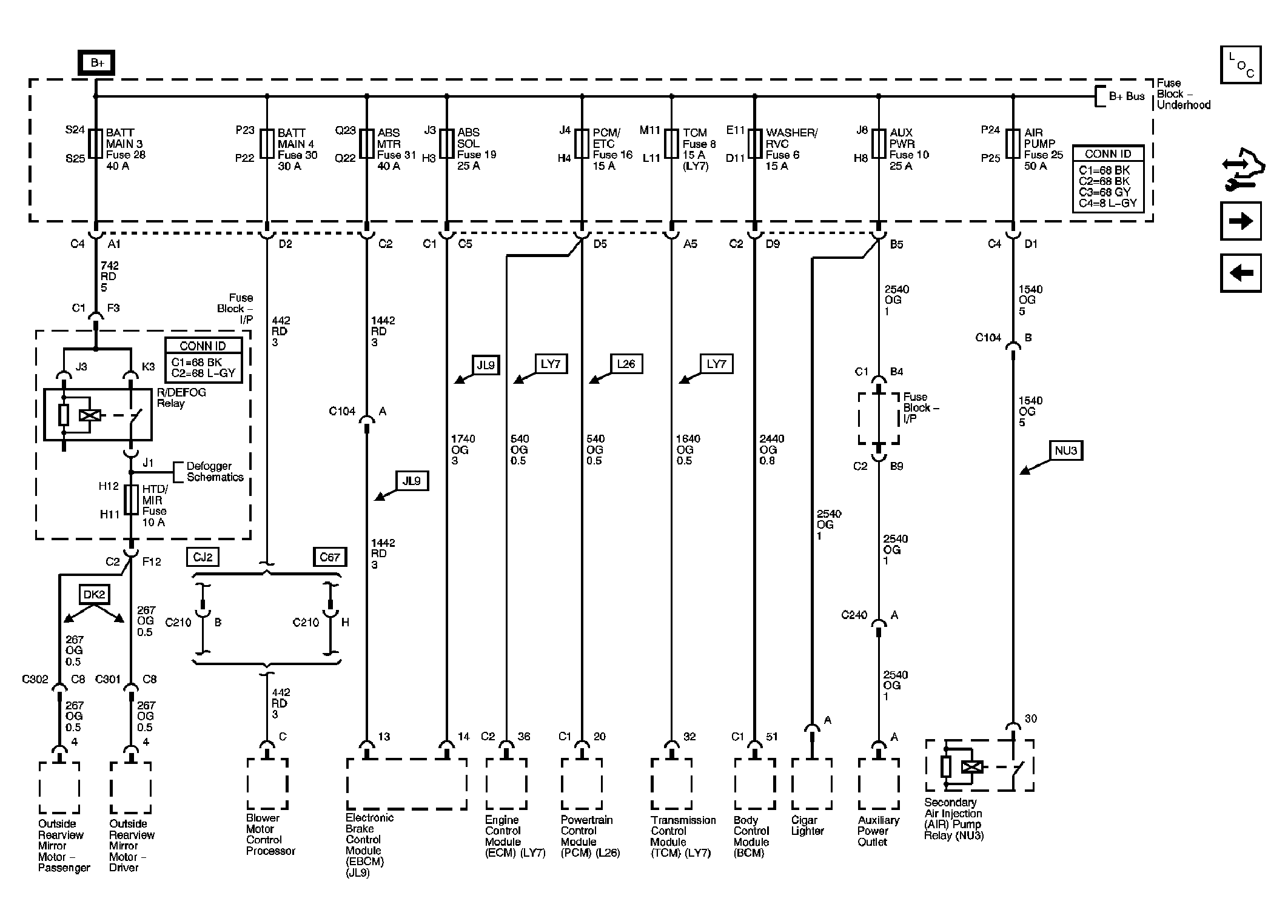

Fig 5: BATT MAIN 3, AIR PUMP, AUX PWR, BATT MAIN 4, ABS MTR, ABS SOL, PCM/ETC, TCM, WASHER/RVC Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

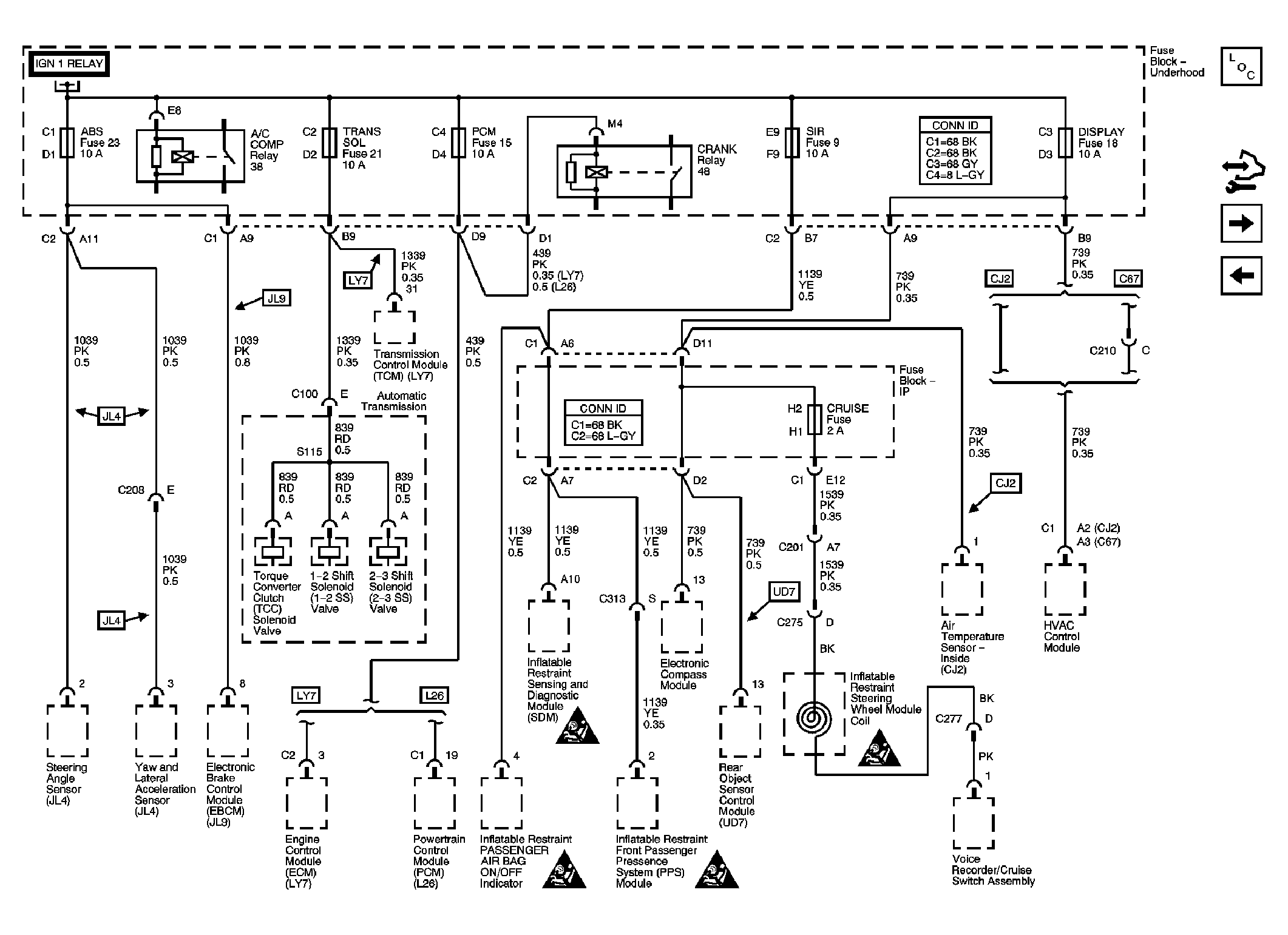

Fig 6: ABS, DISPLAY, PCM, SIR, SOL, TRANS Fuses, CRUISE Schematic (FUSE BLOCK - I/P)

Courtesy of GENERAL MOTORS CORP.

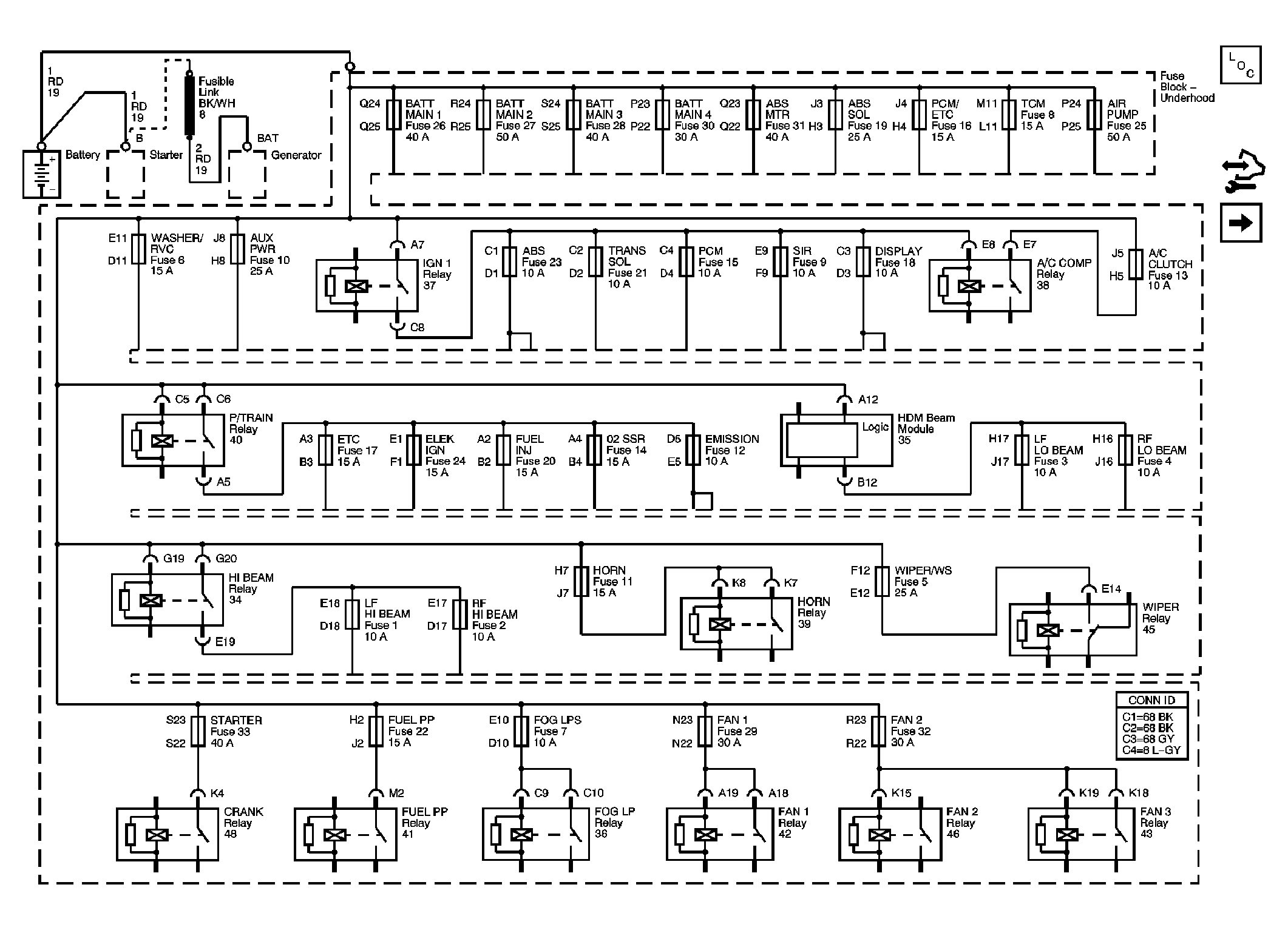

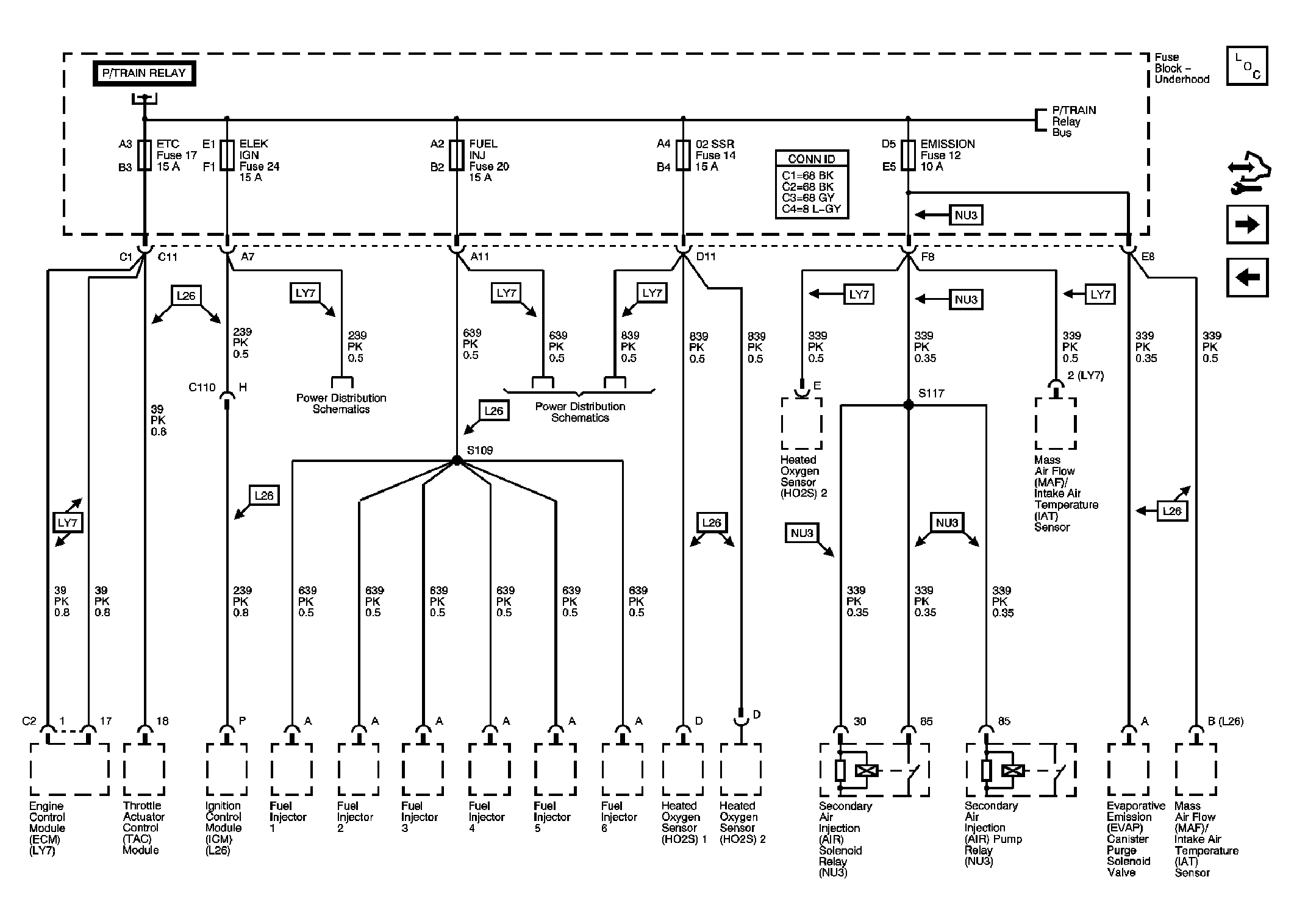

Fig 7: Fuse Block Schematic (Underhood ETC, ELEK IGN (L26), FUEL INJ (L26), 02 SSR (L26), and EMISSION Fuses)

Courtesy of GENERAL MOTORS CORP.

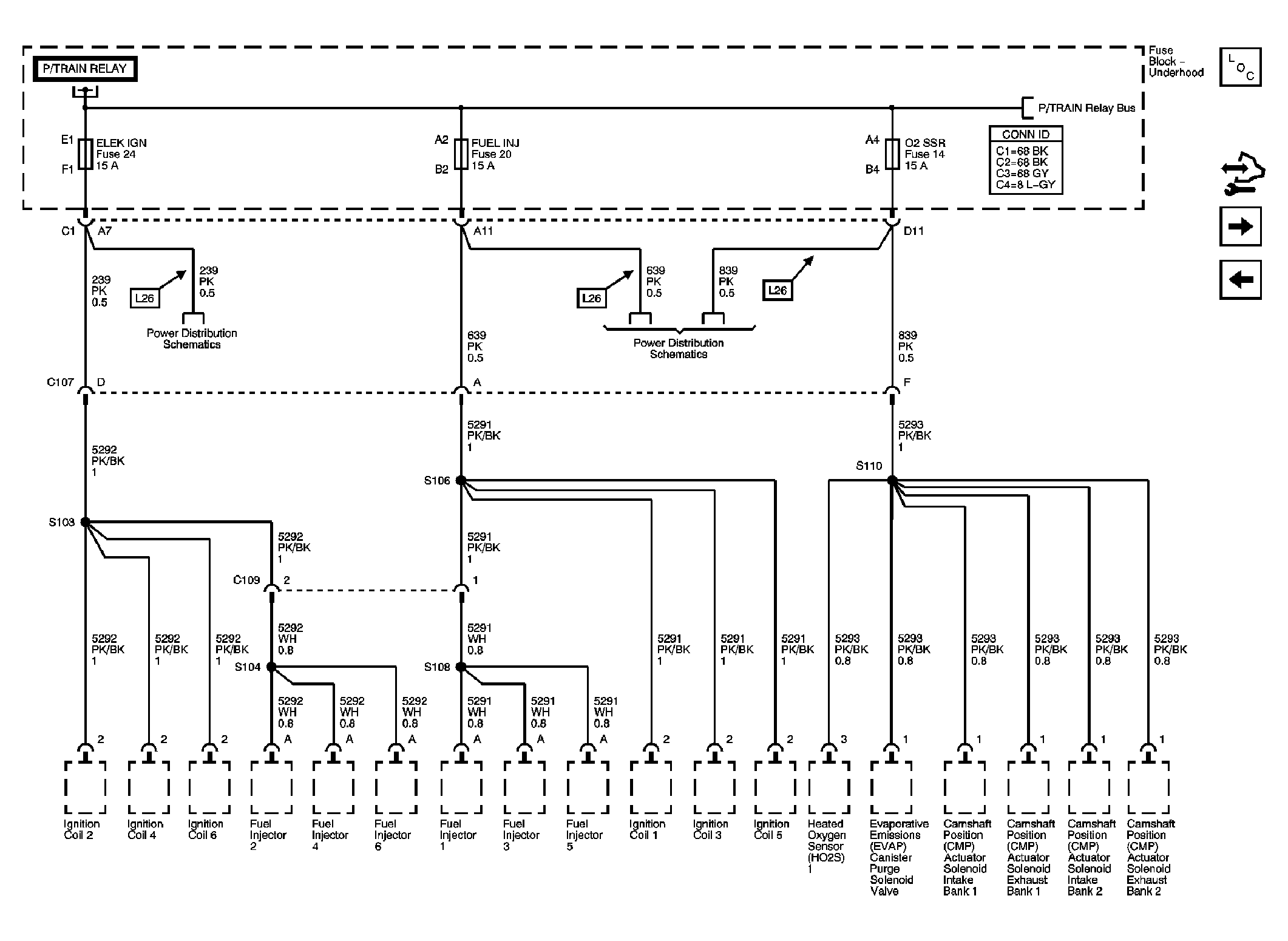

Fig 8: Fuse Block Schematic (Underhood ELEK IGN, FUEL INJ, and 02 SSR Fuses (LY7)

Courtesy of GENERAL MOTORS CORP.

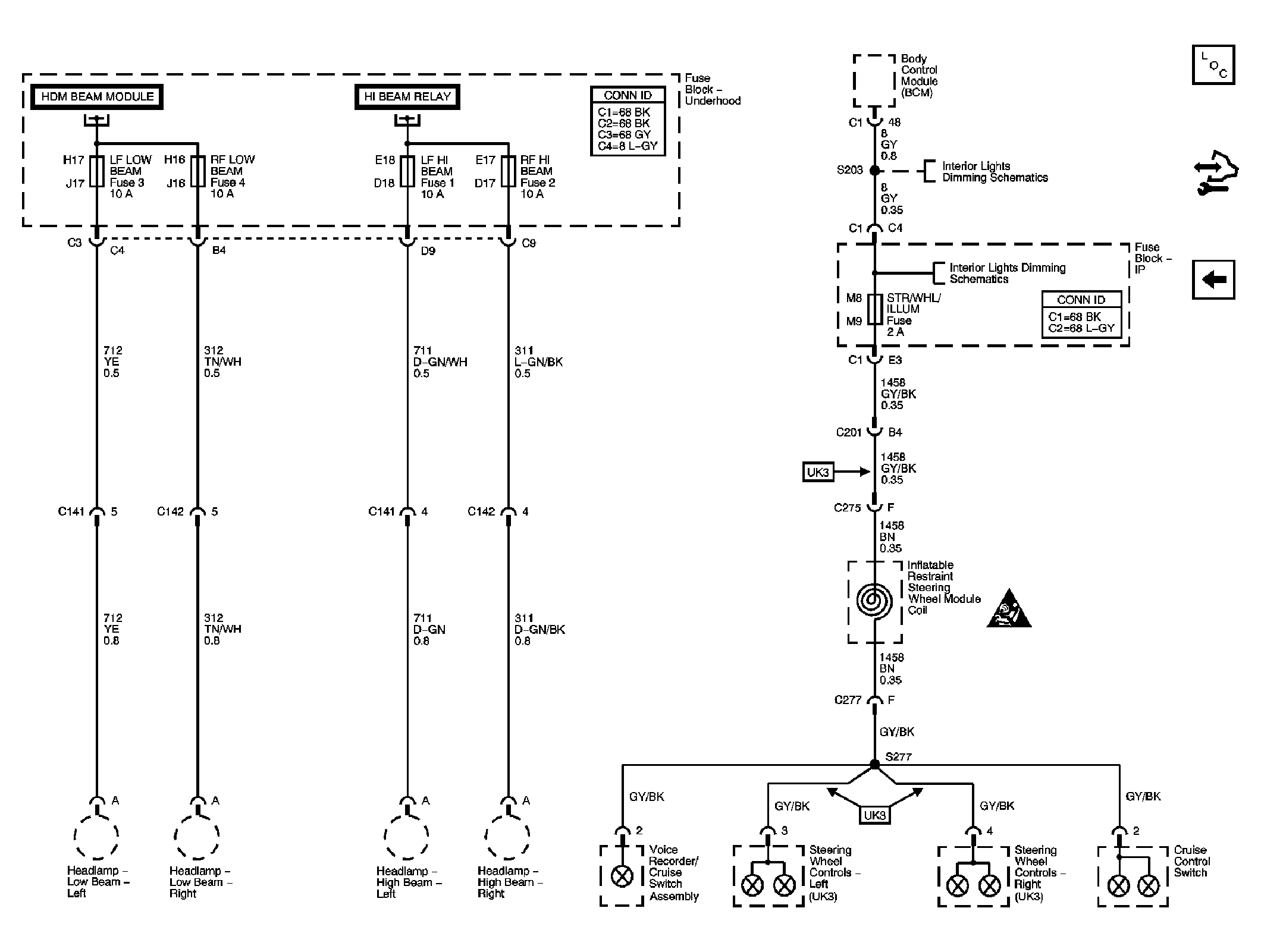

Fig 9: Fuse Block Schematic (Underhood LF LOW BEAM, RF LOW BEAM, LF HI BEAM, RF HI BEAM Fuses, Fuse Block - I/P SPRING COIL 2 Fuse)

Courtesy of GENERAL MOTORS CORP.
