Ground Distribution Schematics

Fig 1: Ground Distribution Schematic (G100)

Courtesy of GENERAL MOTORS CORP.

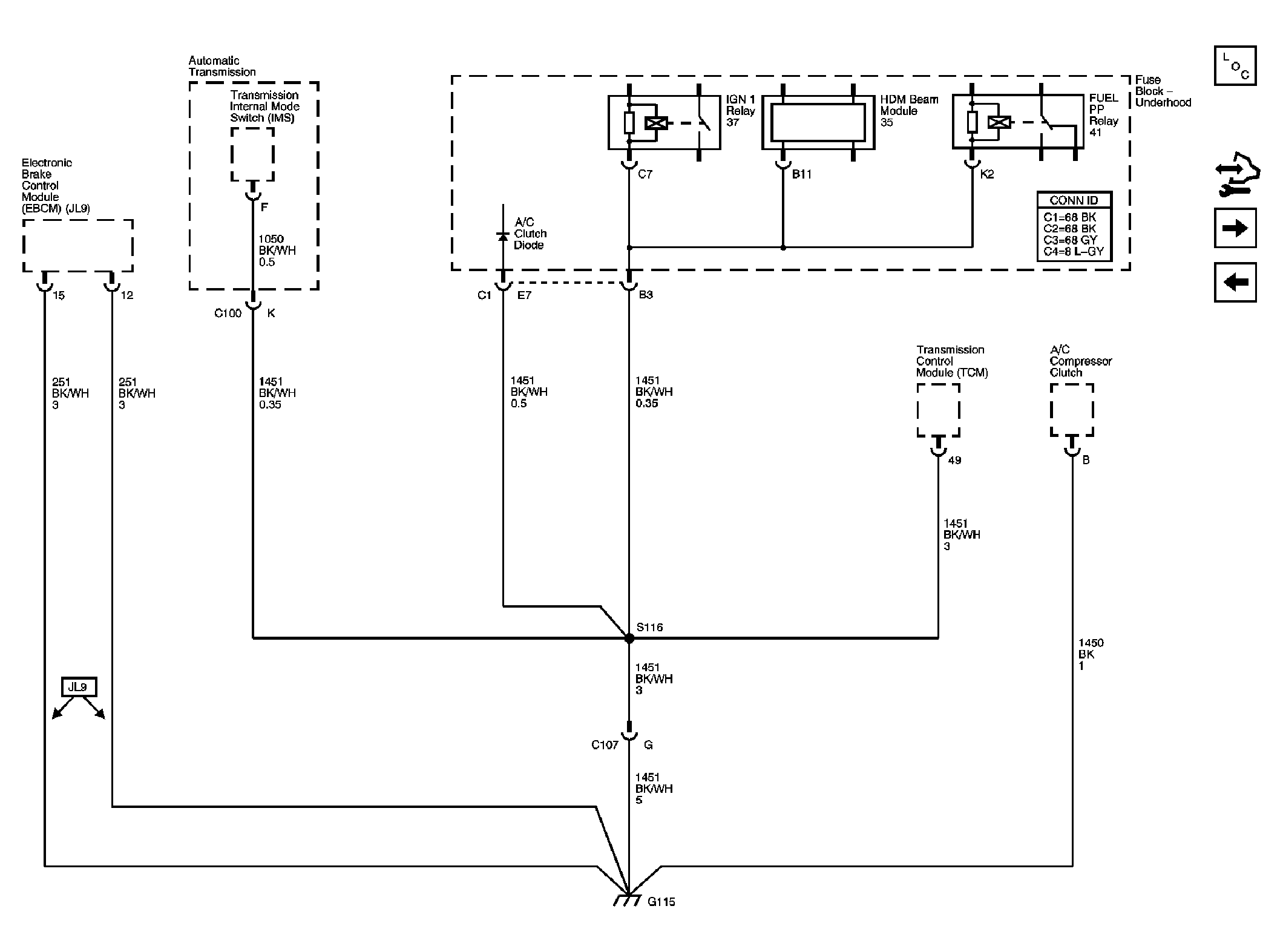

Fig 2: Ground Distribution Schematic (G101, G102, G103, G111, G112, and G113)

Courtesy of GENERAL MOTORS CORP.

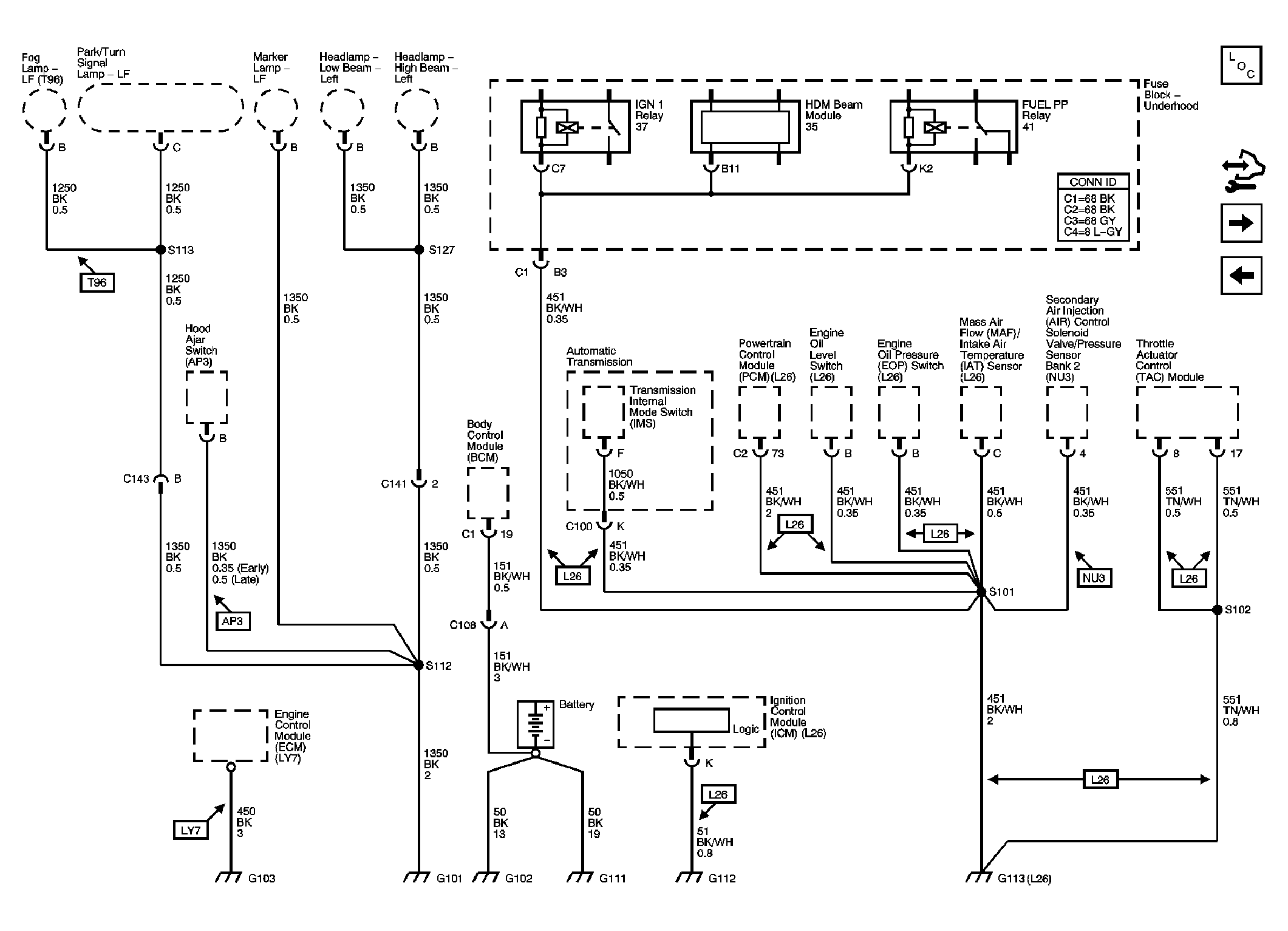

Fig 3: Ground Distribution Schematic (G115 - L26)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Ground Distribution Schematic (G115 - LY7)

Courtesy of GENERAL MOTORS CORP.

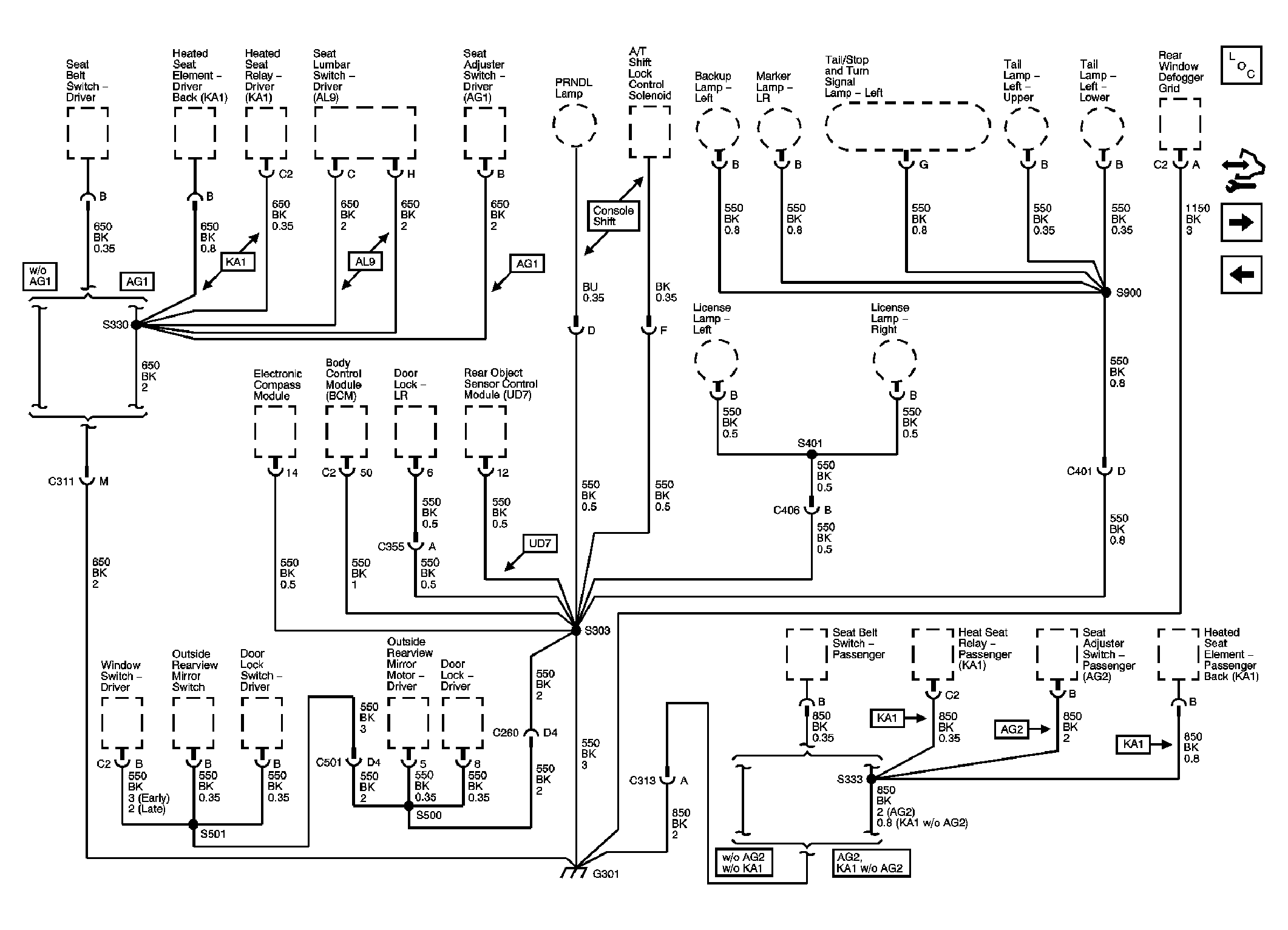

Fig 5: Ground Distribution Schematic (G200)

Courtesy of GENERAL MOTORS CORP.

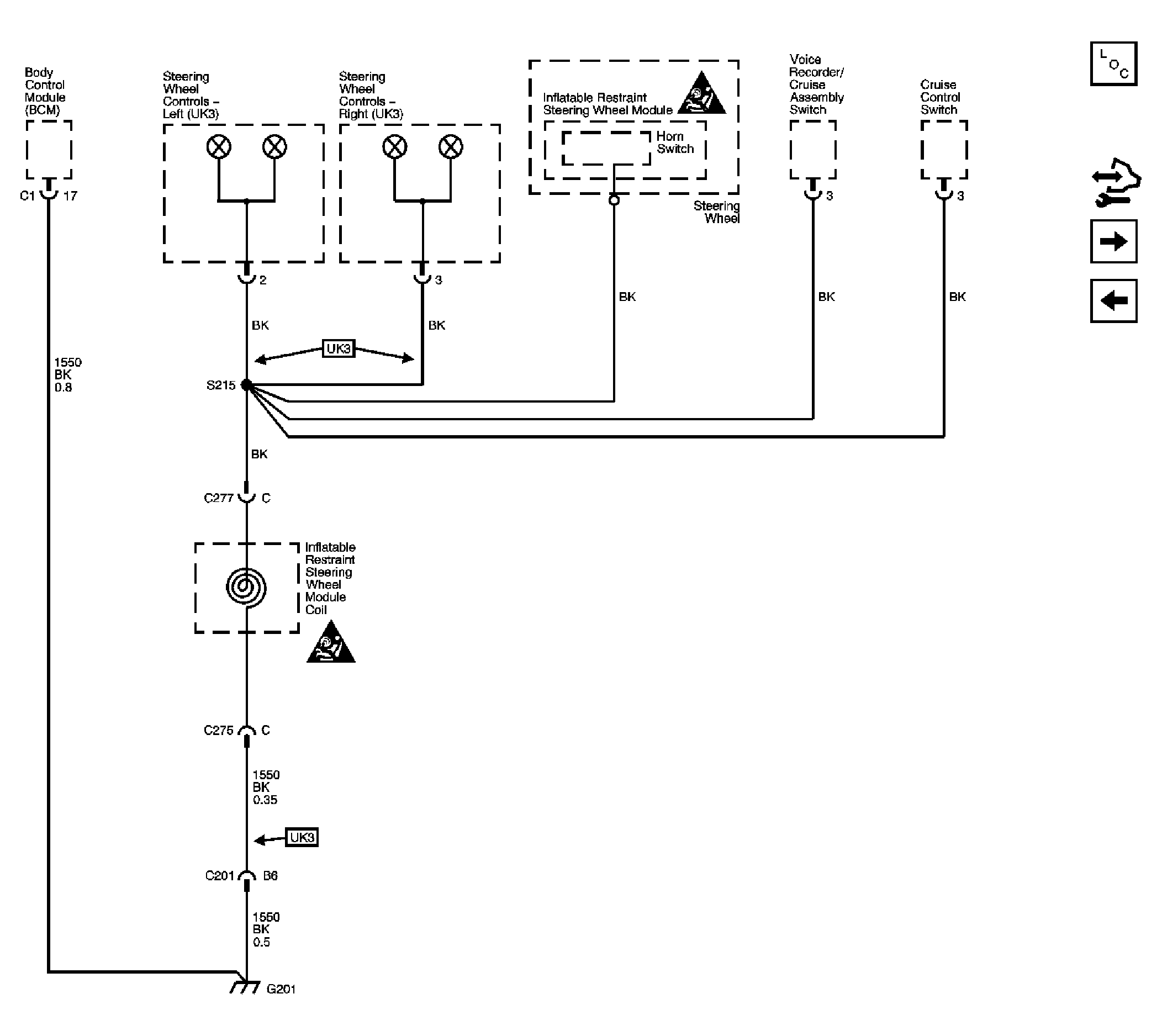

Fig 6: Ground Distribution Schematic (G201)

Courtesy of GENERAL MOTORS CORP.

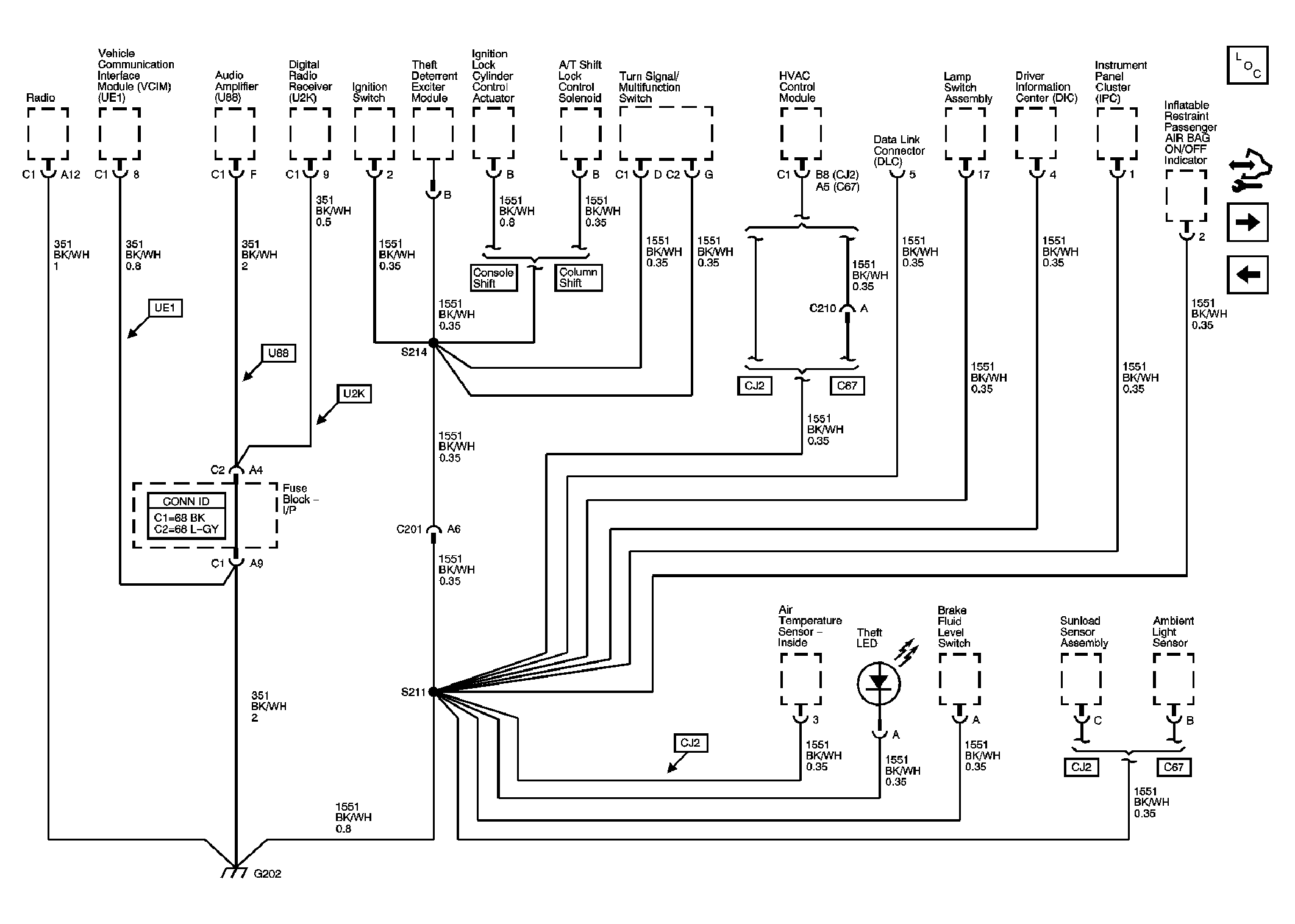

Fig 7: Ground Distribution Schematic (G202)

Courtesy of GENERAL MOTORS CORP.

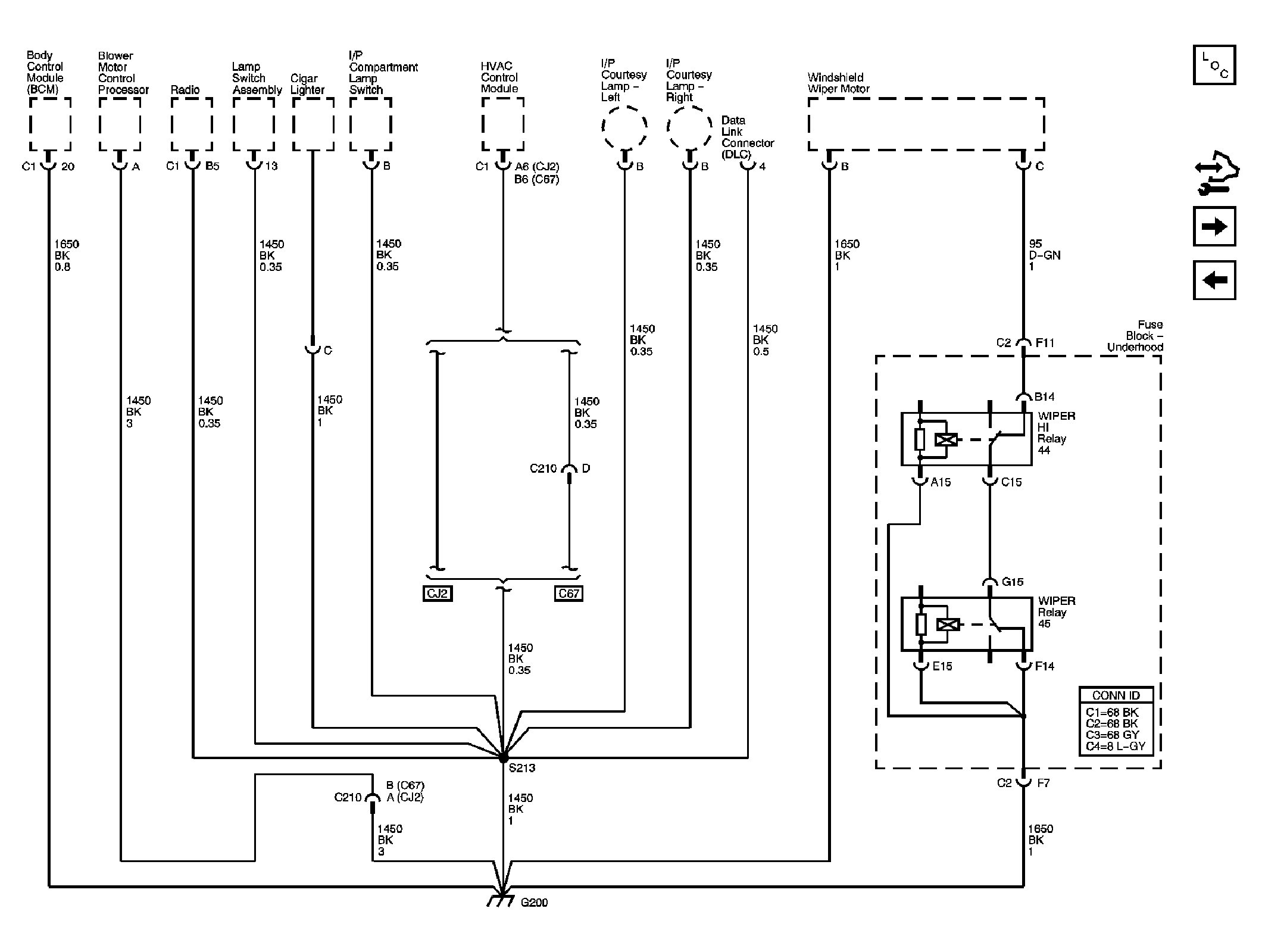

Fig 8: Ground Distribution Schematic (G301)

Courtesy of GENERAL MOTORS CORP.

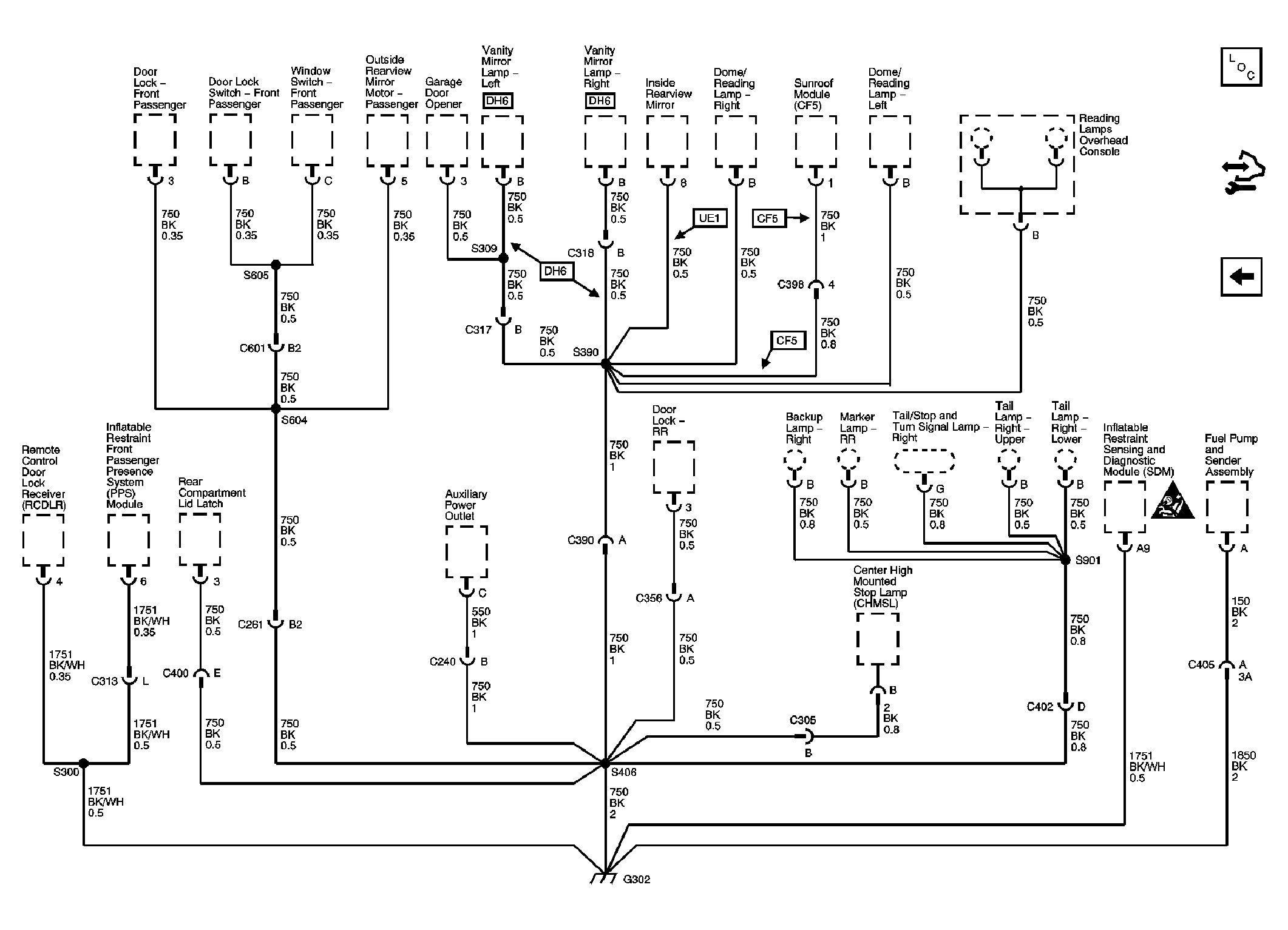

Fig 9: Ground Distribution Schematic (G302)

Courtesy of GENERAL MOTORS CORP.

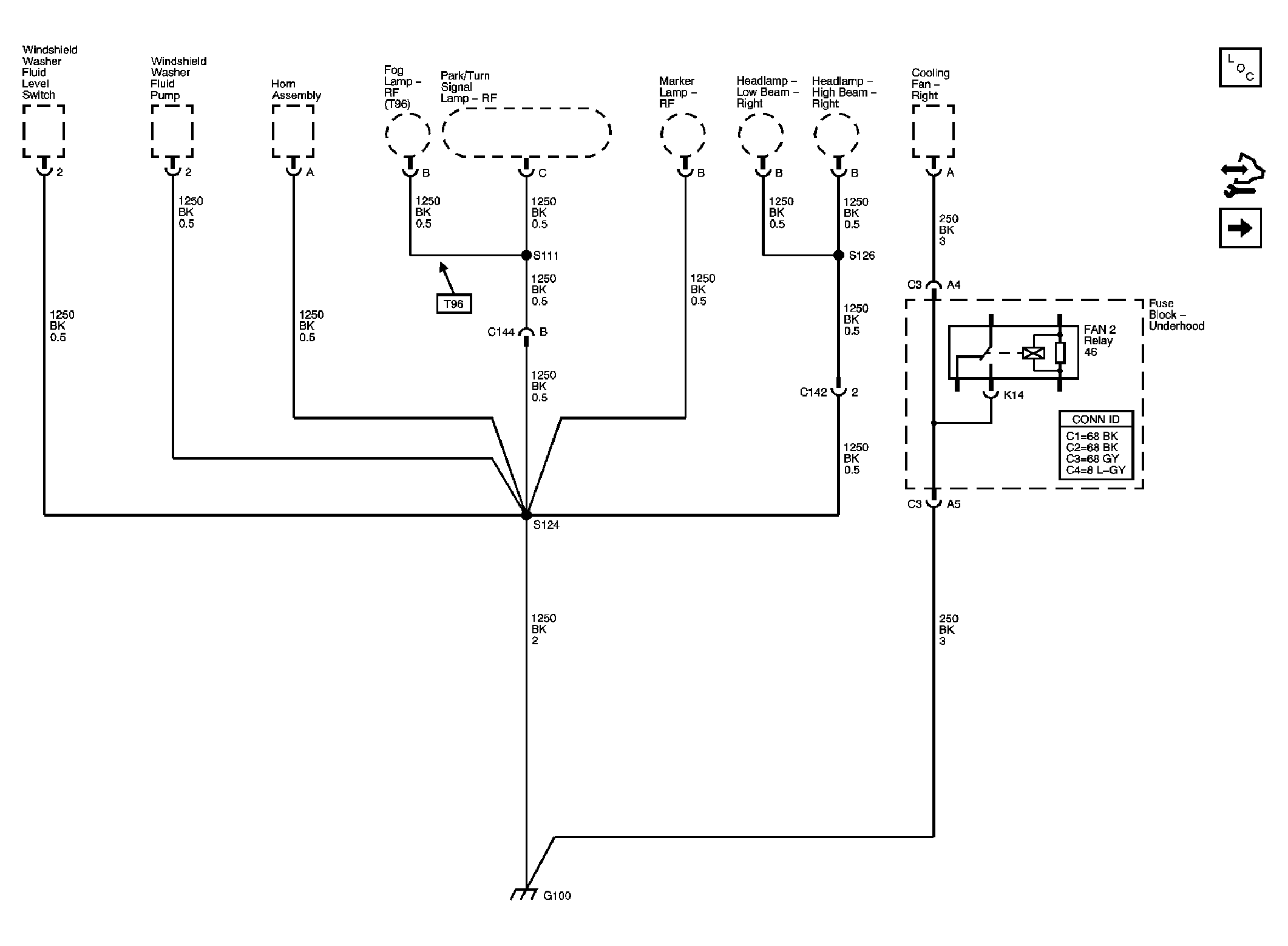

Fig 10: Ground Distribution Schematic (G130, G131 - LY7)

Courtesy of GENERAL MOTORS CORP.
