Instrument Cluster Schematics

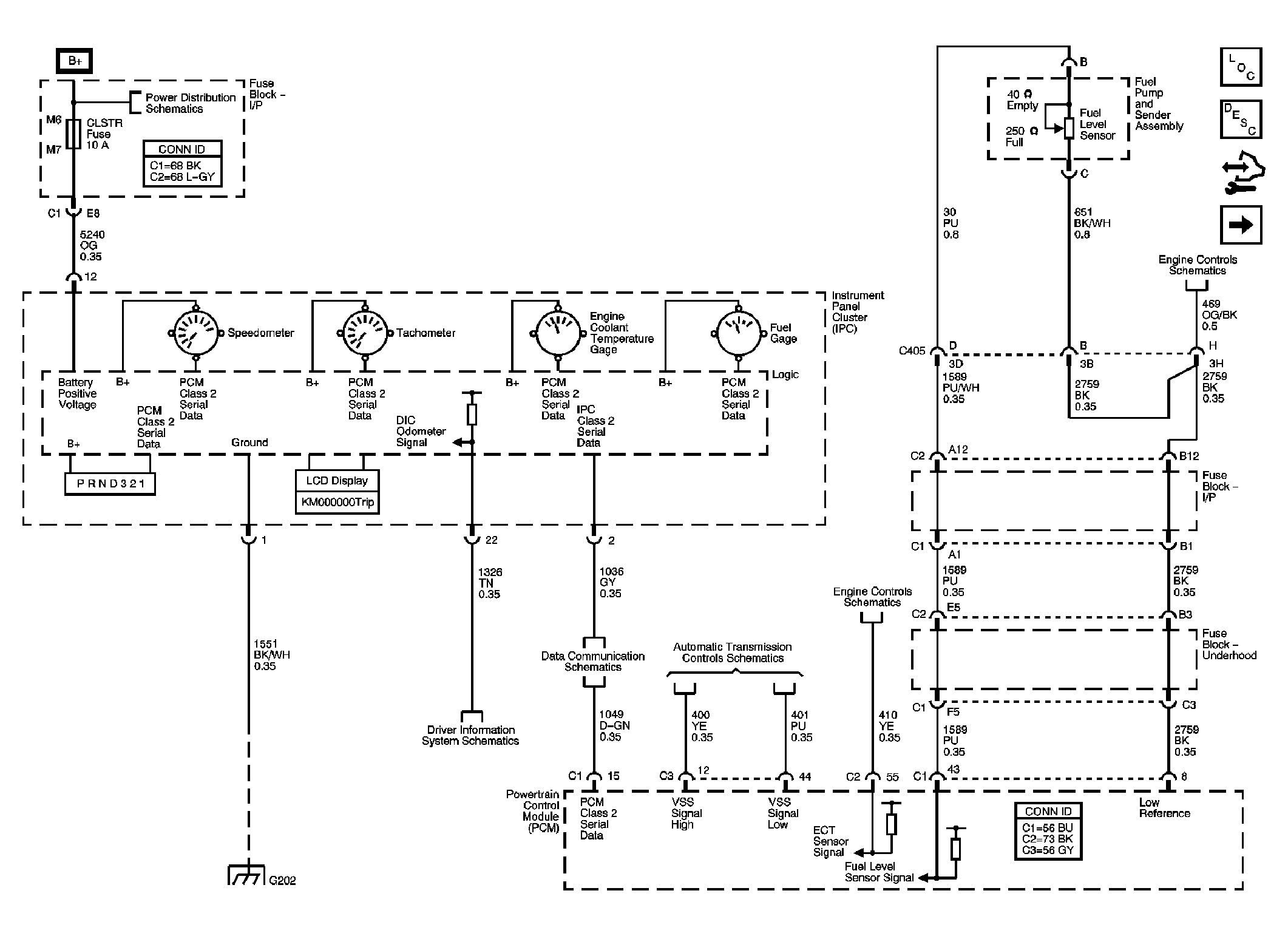

Fig 1: Power, Ground, Serial Data, and Gages Schematic (3.8L)

Courtesy of GENERAL MOTORS CORP.

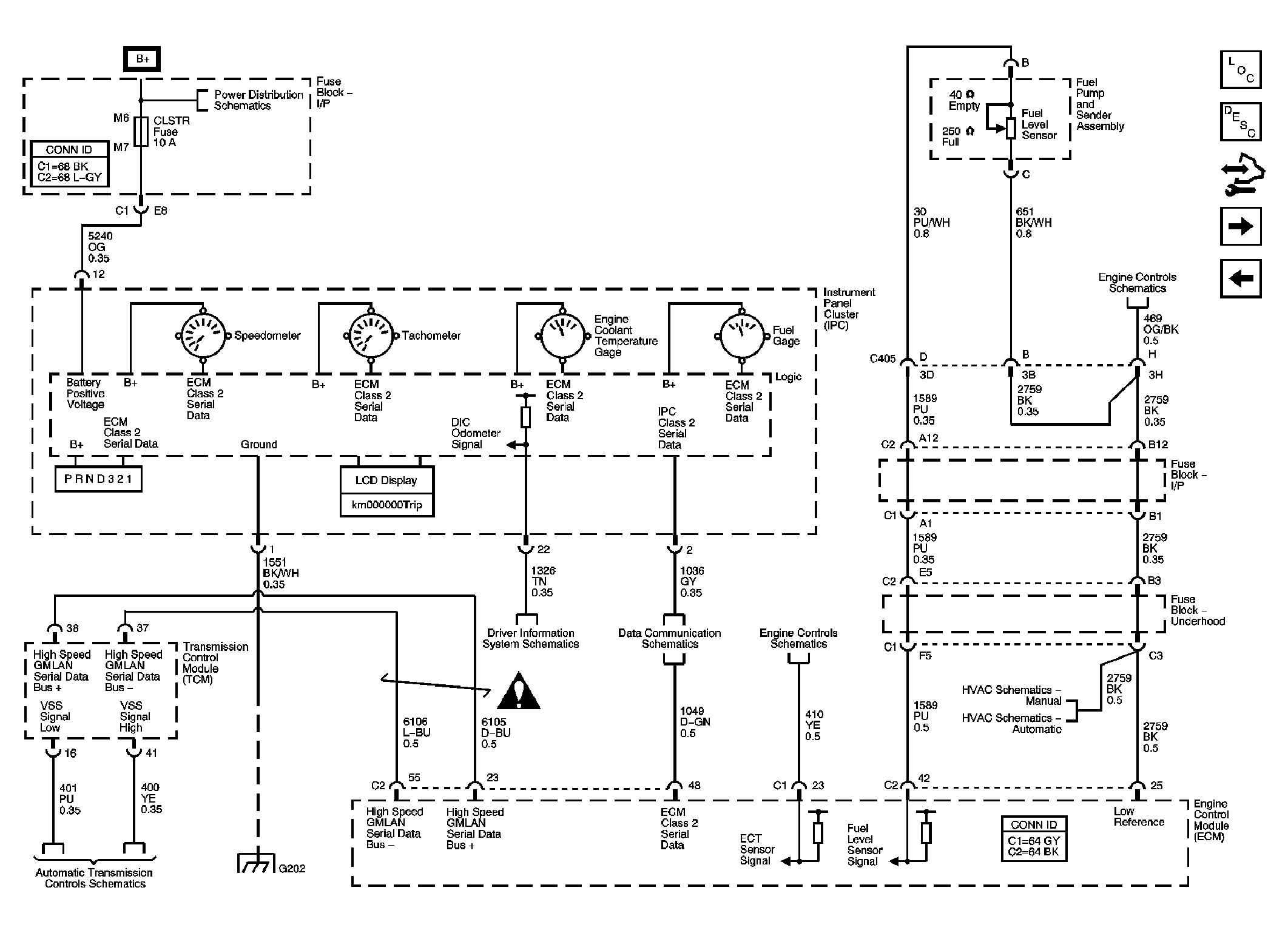

Fig 2: Power, Ground, Serial Data, and Gages Schematic (3.6L)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Indicators Schematic (U2E)

Courtesy of GENERAL MOTORS CORP.

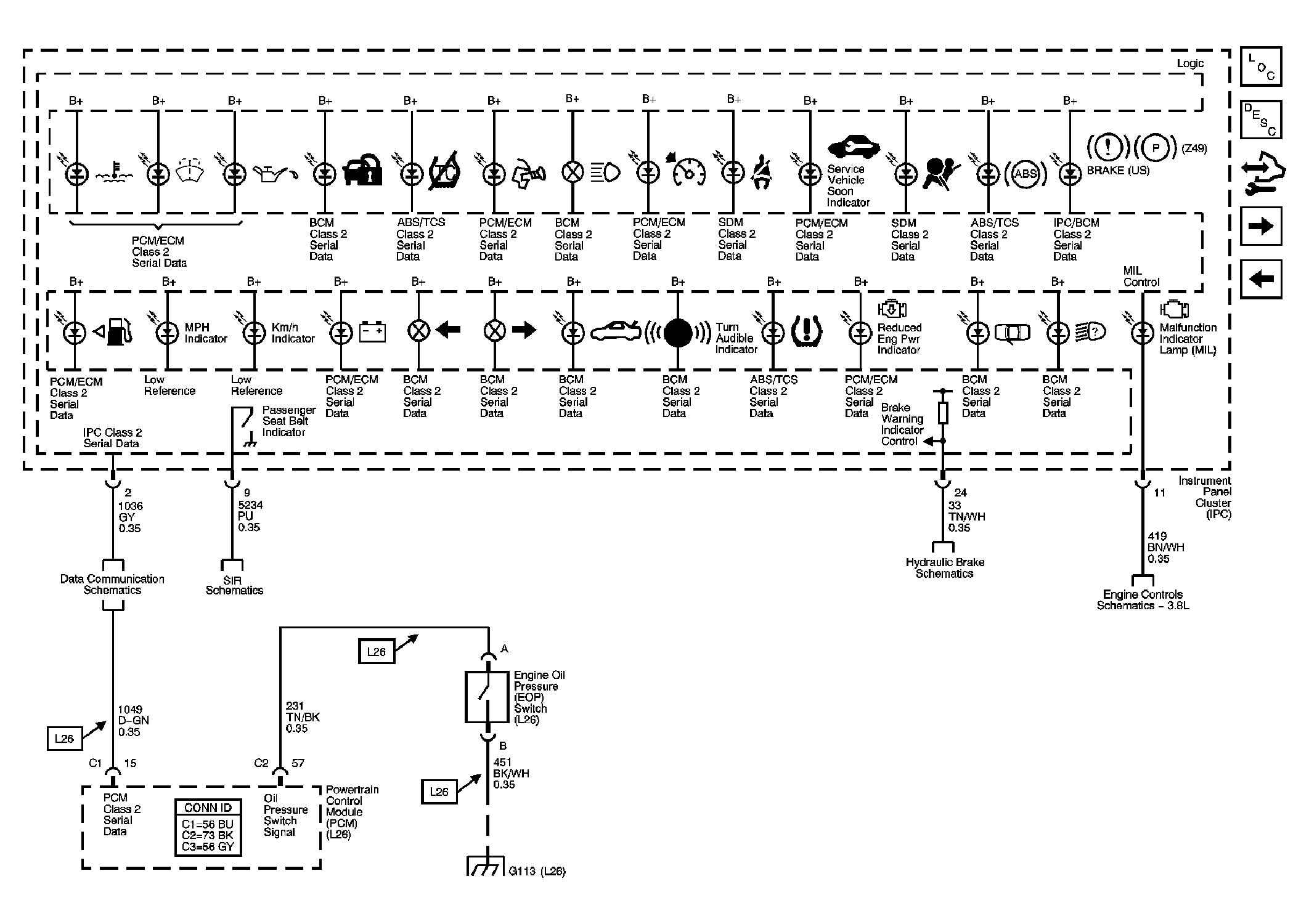

Fig 4: Indicators Schematic (UH8)

Courtesy of GENERAL MOTORS CORP.

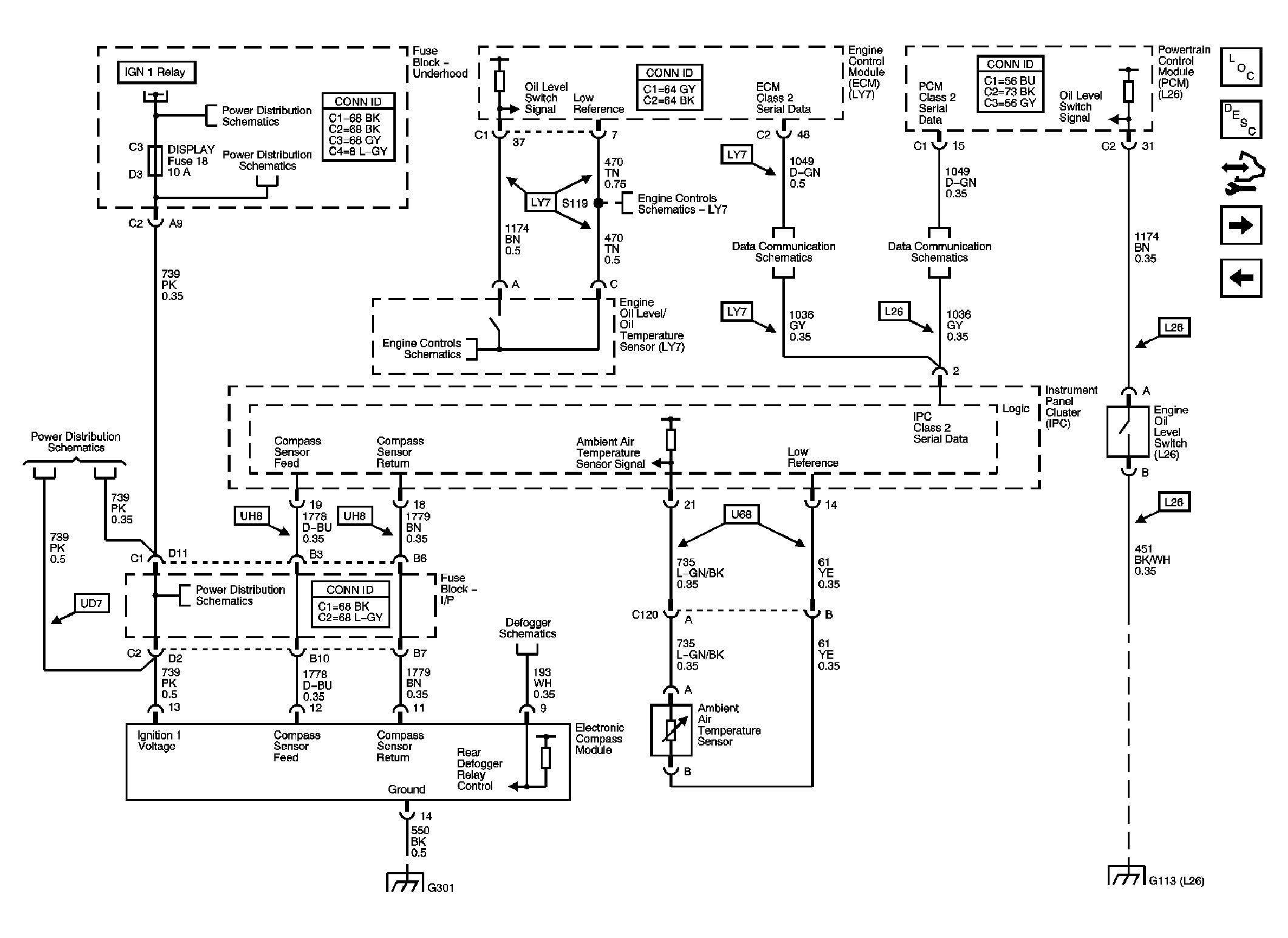

Fig 5: Ambient Air Temperature Sensor, Electronic Compass Module, and Oil Level Switch Schematic

Courtesy of GENERAL MOTORS CORP.
