Sunroof Schematics
Sunroof Schematics

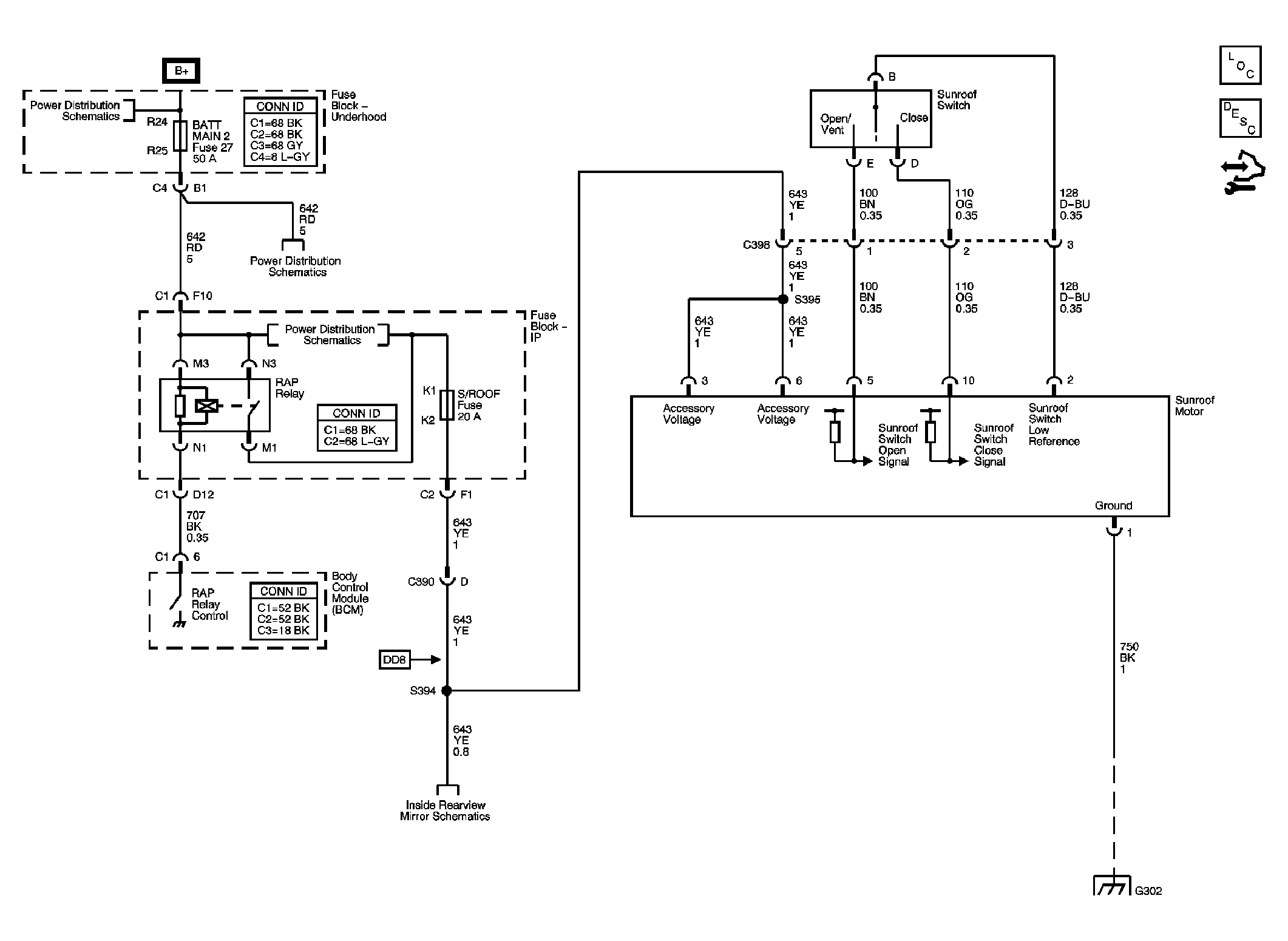

Fig 1: Sunroof Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
