Door Lock/Indicator Schematics

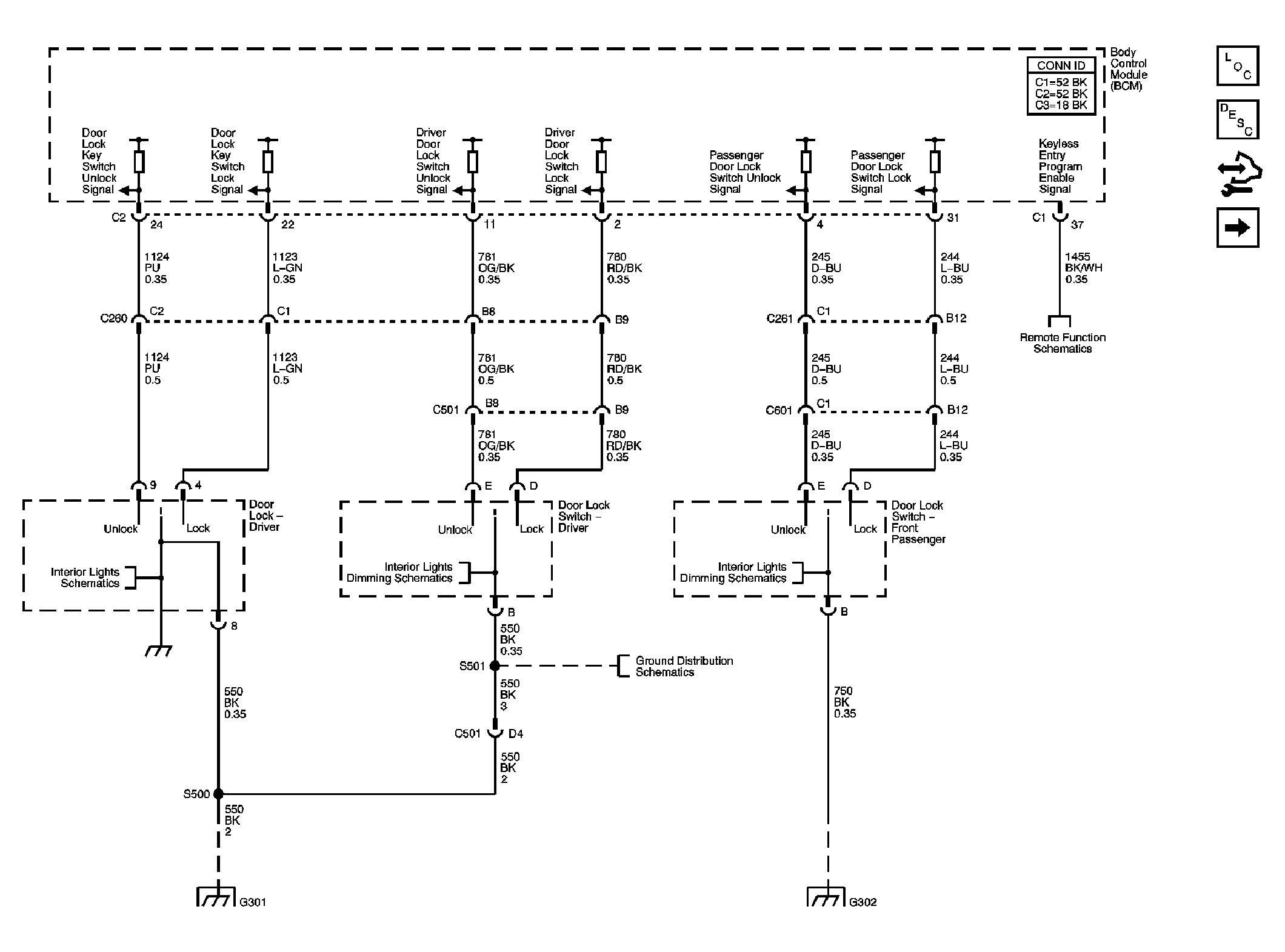

Fig 1: Door Lock/Indicator Schematic (Switches)
GM1802225Courtesy of GENERAL MOTORS CORP.

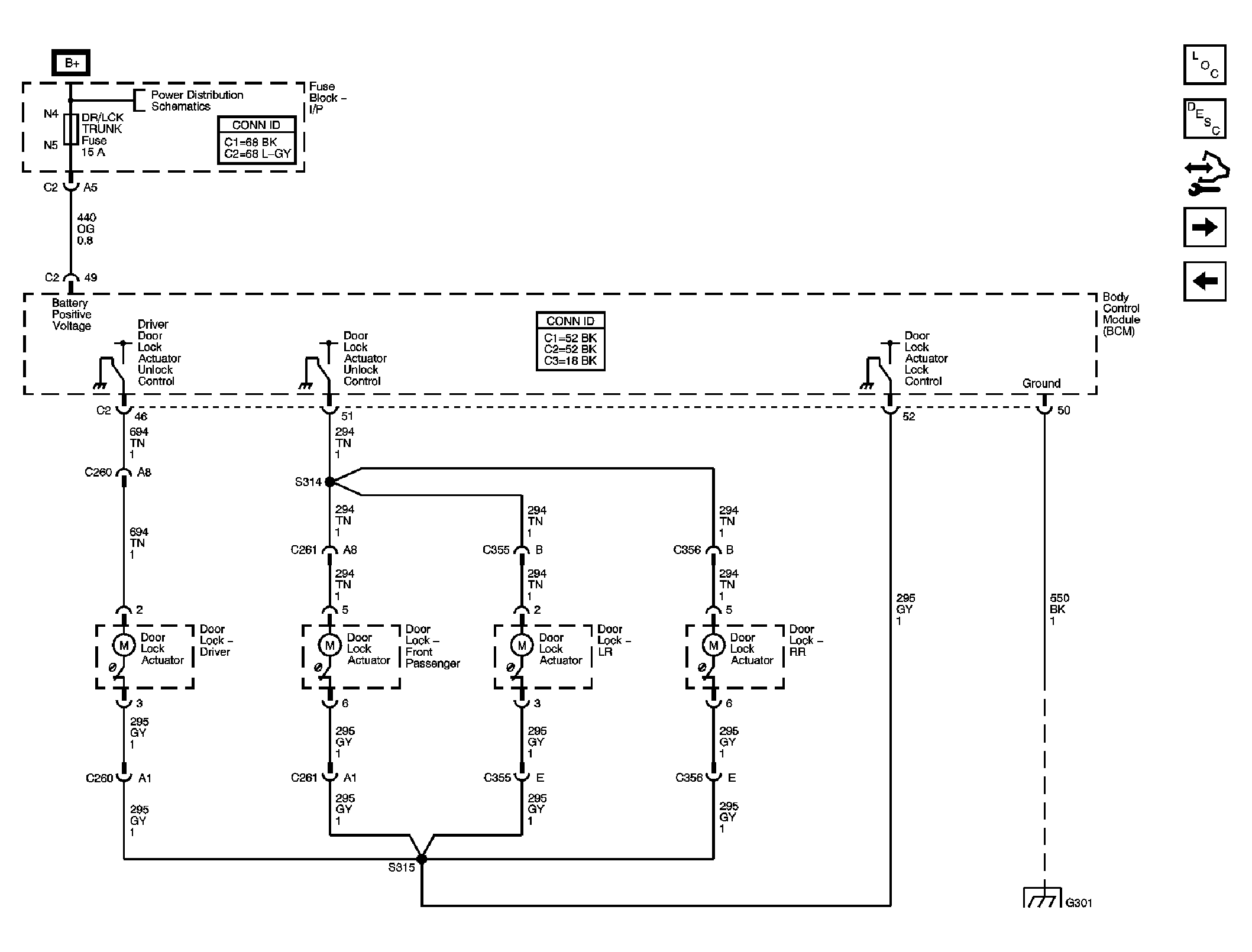

Fig 2: Door Lock/Indicator Schematic (Actuators)
GM1802241Courtesy of GENERAL MOTORS CORP.

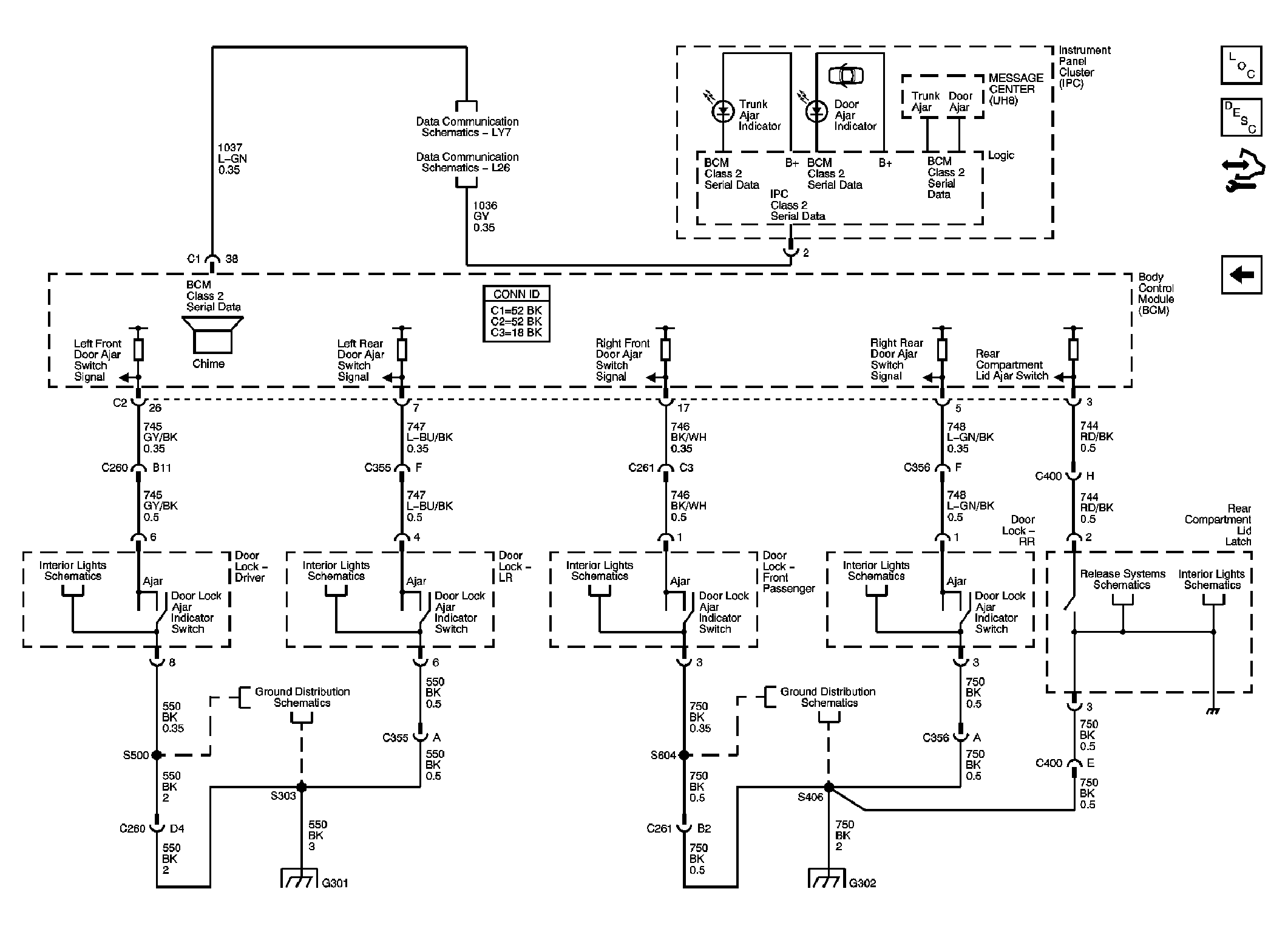

Fig 3: Door Lock/Indicator Schematic (Ajar Indicators)
GM1802243Courtesy of GENERAL MOTORS CORP.
