Exterior Lights Schematics

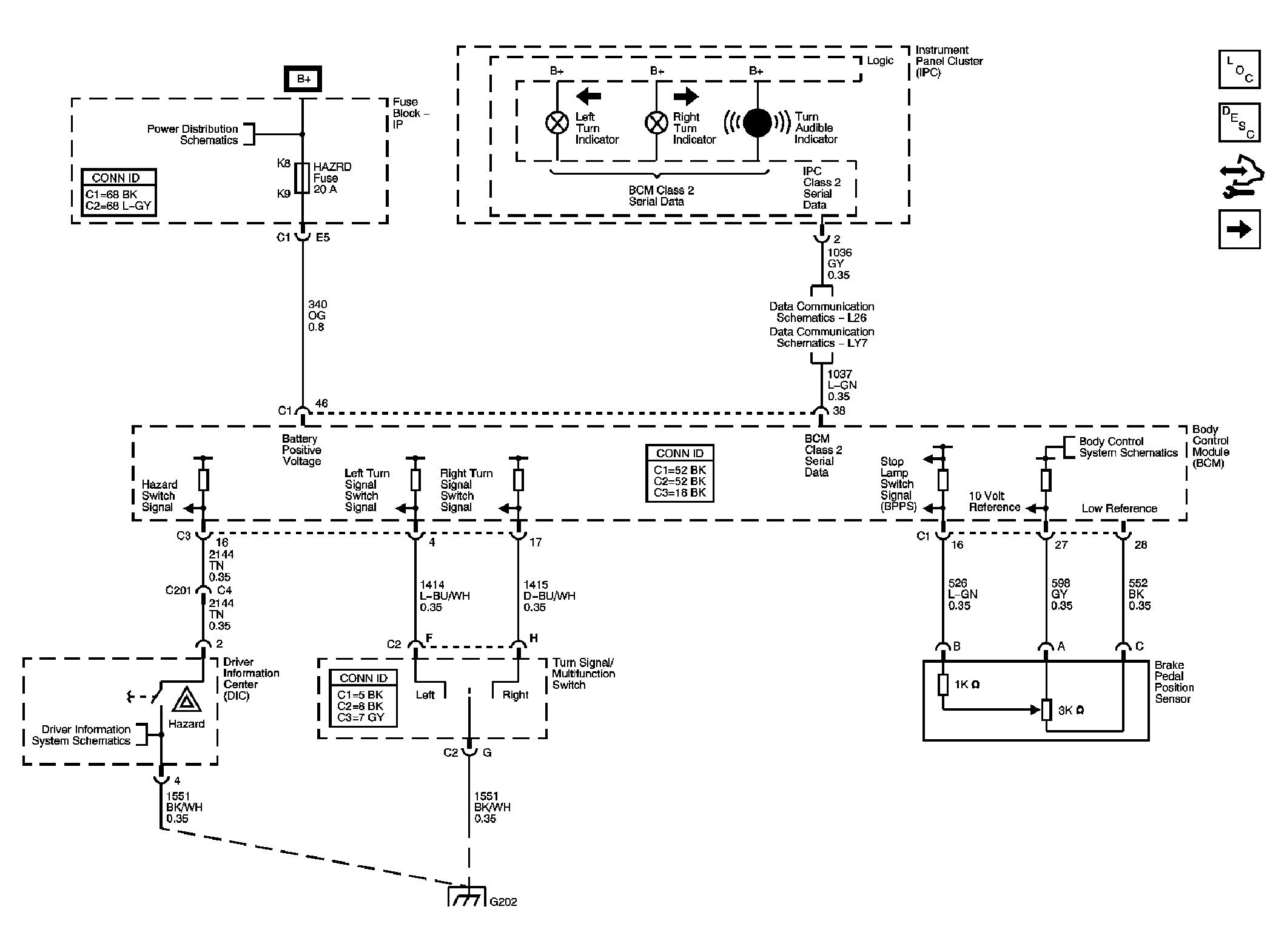

Fig 1: Turn Signal, Hazard, and Stop Lamps Inputs
GM1802606Courtesy of GENERAL MOTORS CORP.

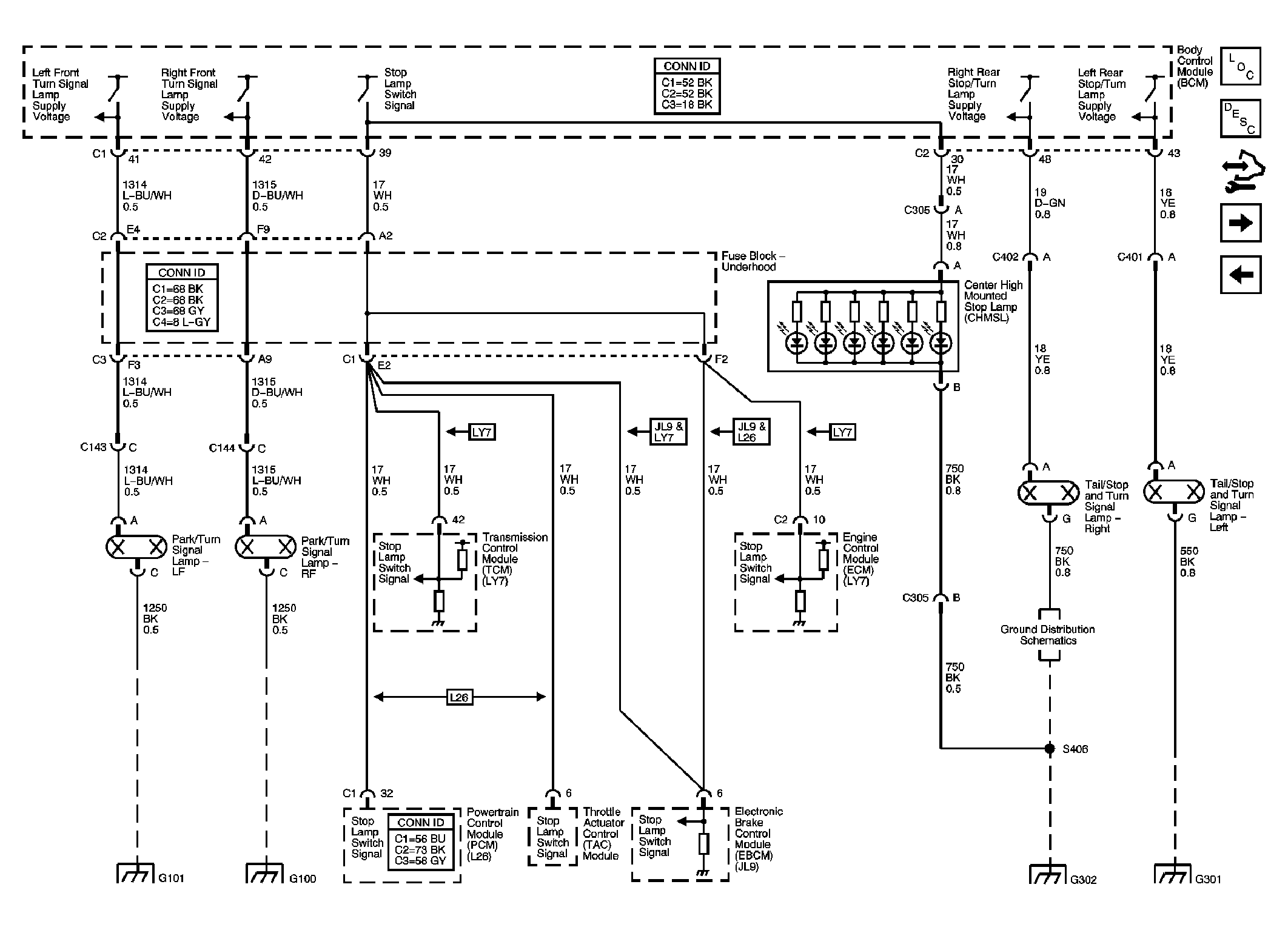

Fig 2: Turn Signal, Hazard, and Stop Lamps Outputs
GM1802613Courtesy of GENERAL MOTORS CORP.

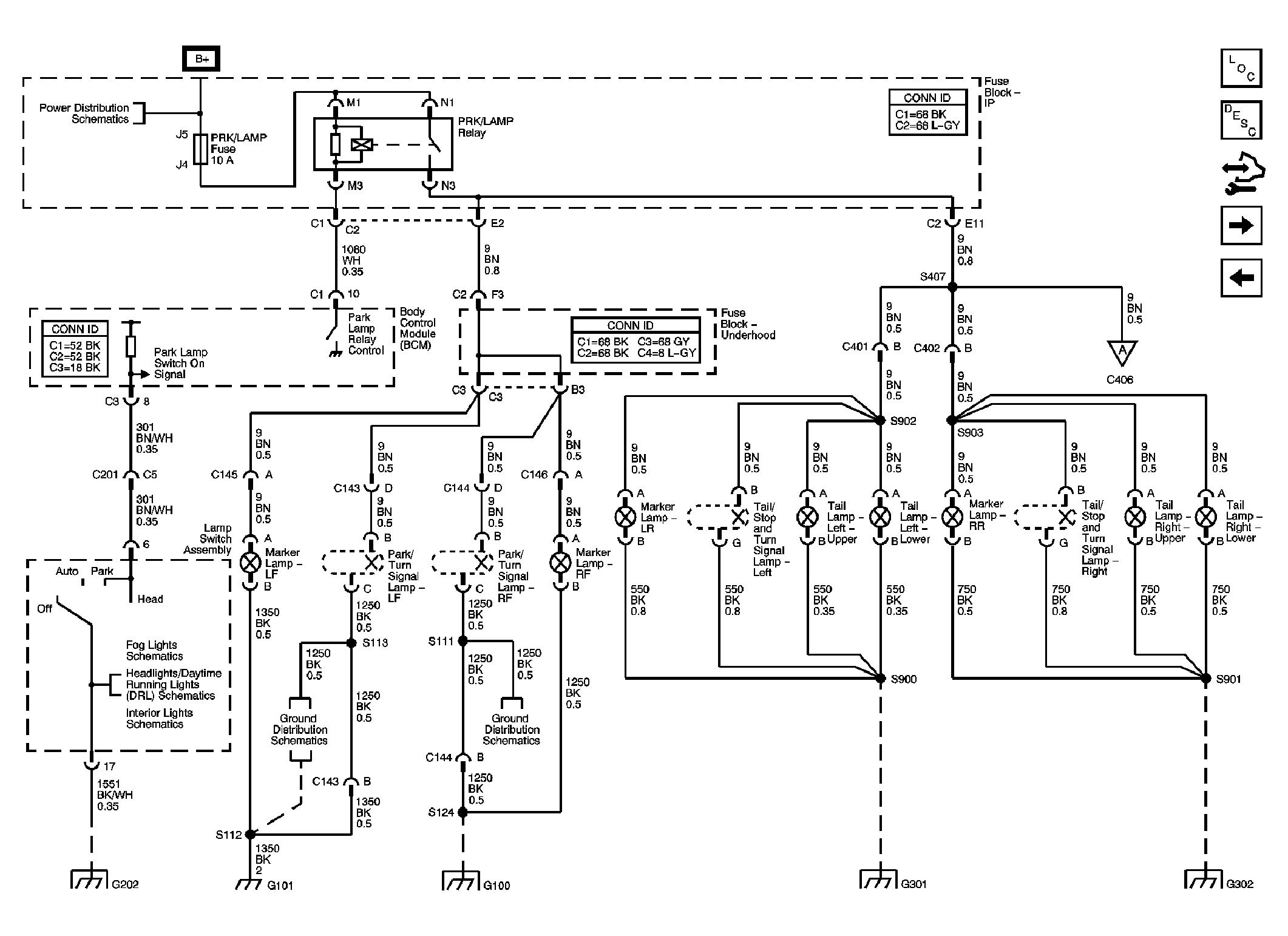

Fig 3: Park Lamps
GM1802628Courtesy of GENERAL MOTORS CORP.

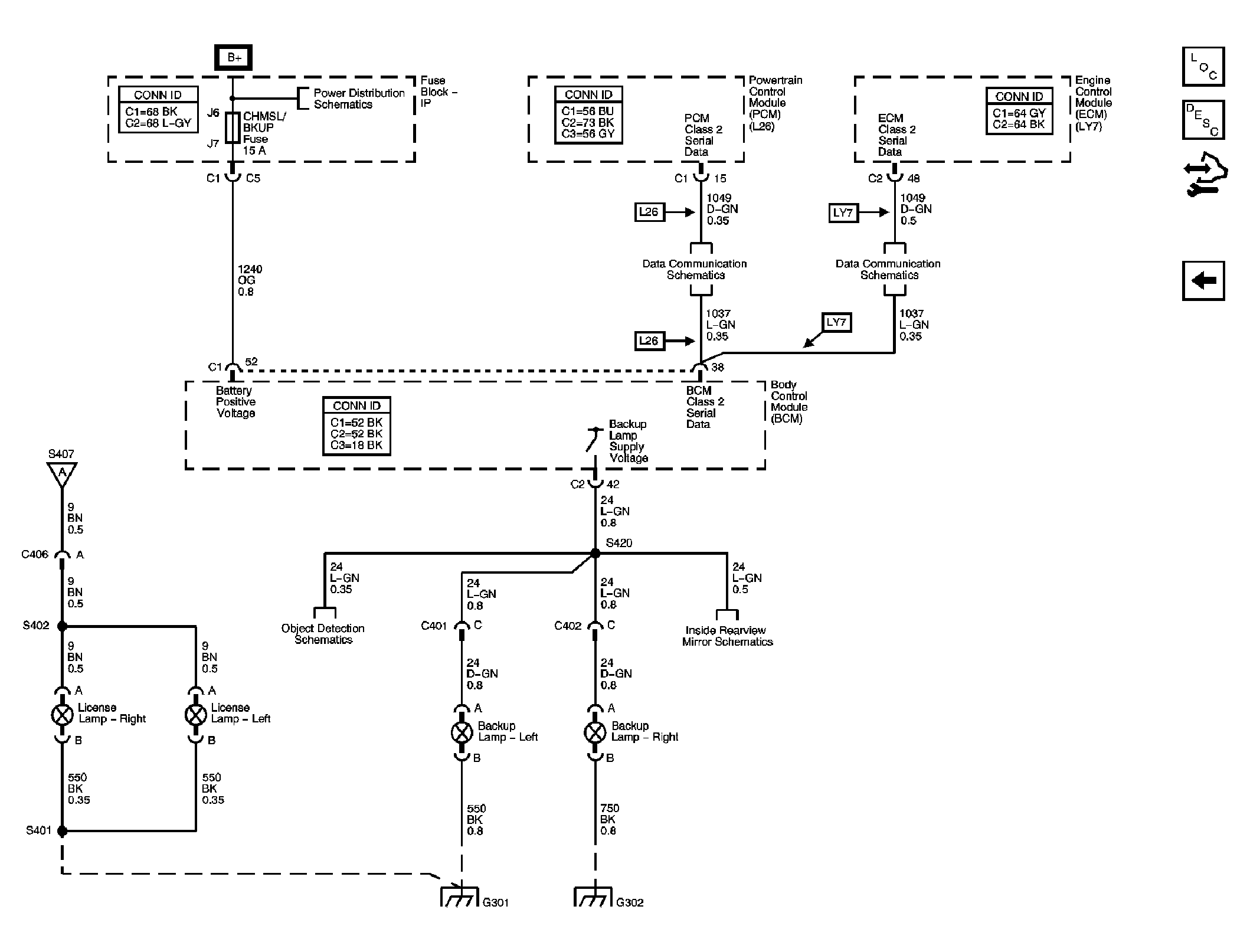

Fig 4: Backup and License Lamps
GM1802633Courtesy of GENERAL MOTORS CORP.
