OnStar Schematics

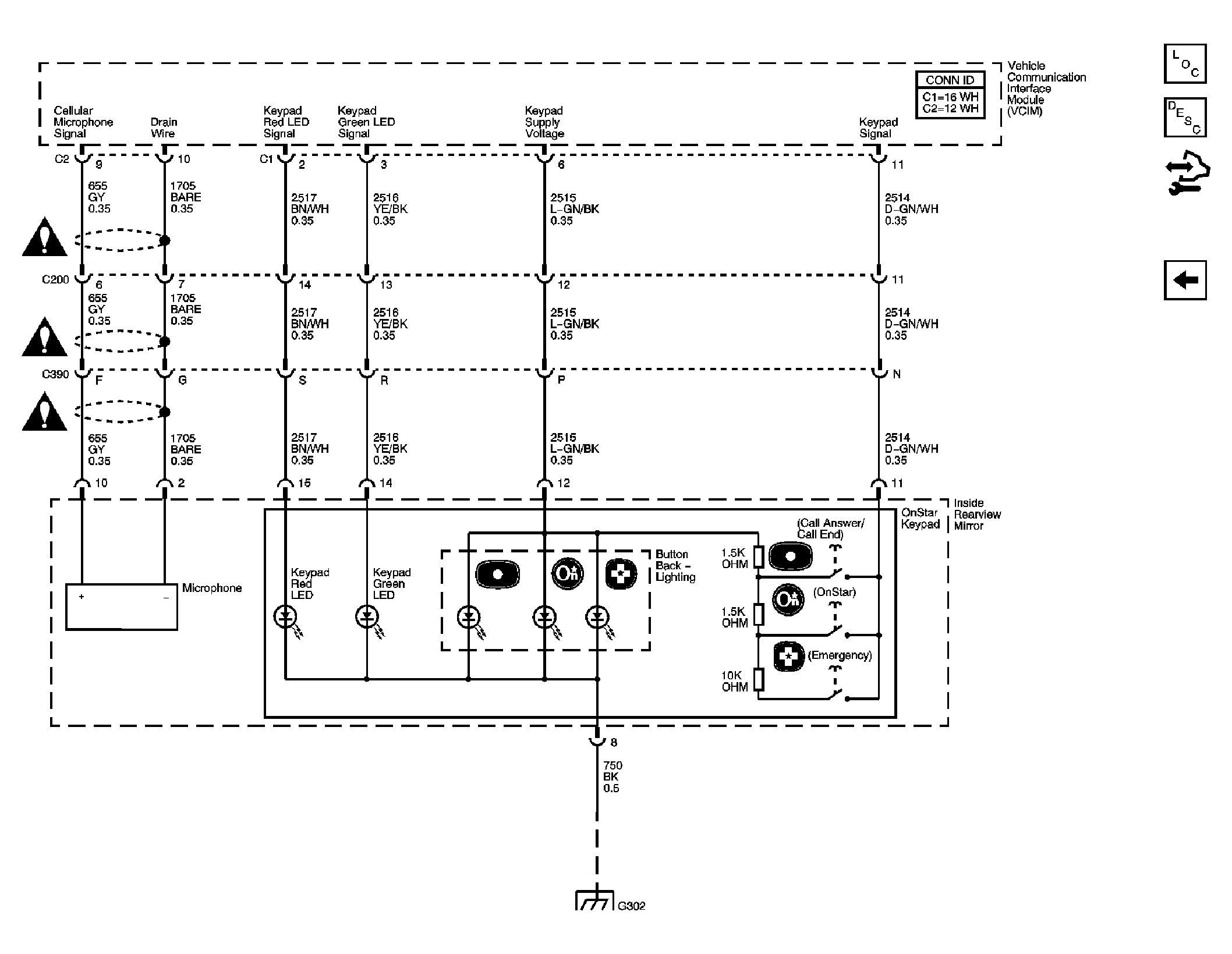

Fig 1: VCIM to Inside Rearview Mirror Schematic
GM1803189Courtesy of GENERAL MOTORS CORP.

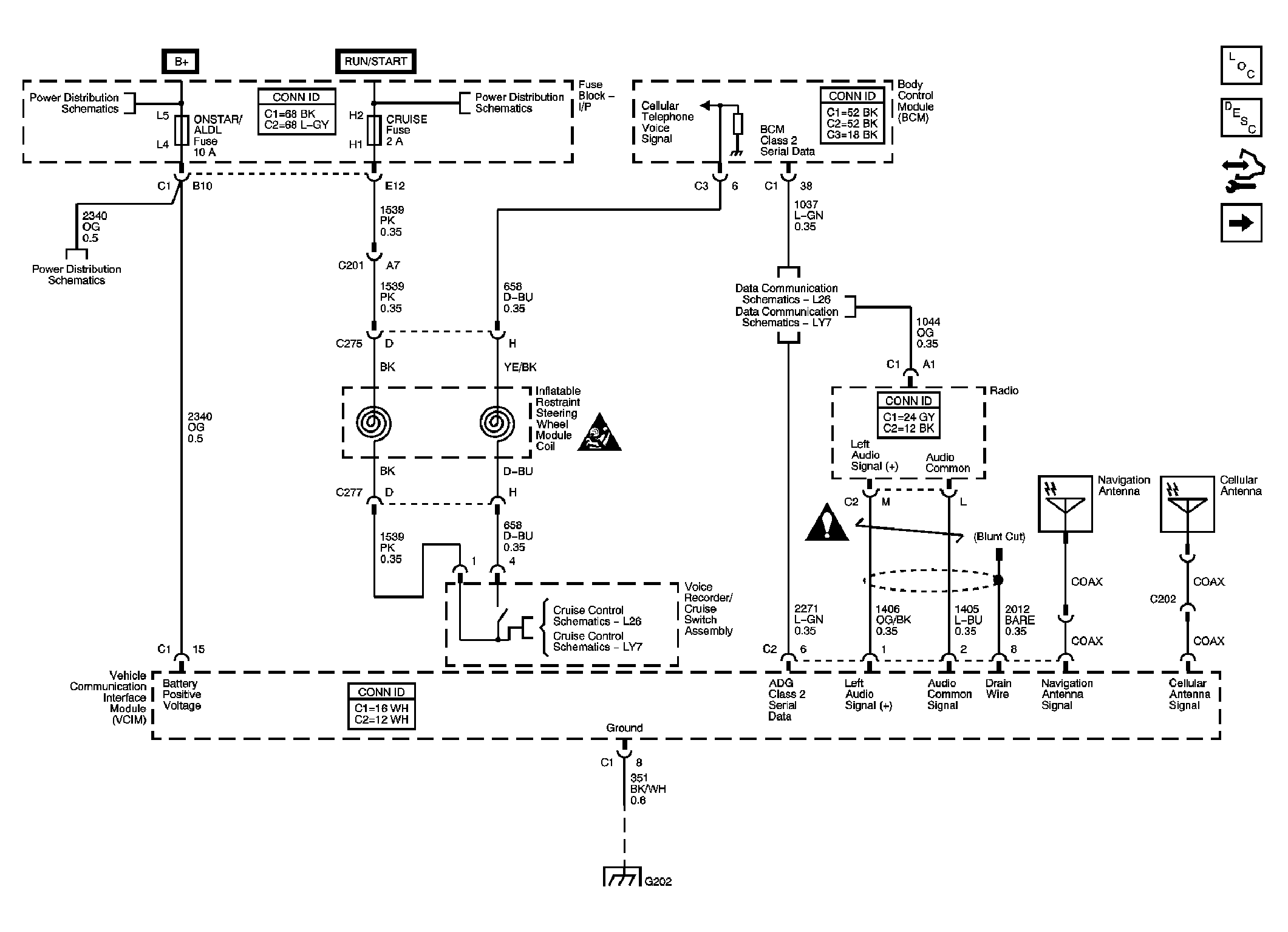

Fig 2: Power, Ground, Serial Data, Antennas, and Voice Recorder Schematic
GM1803191Courtesy of GENERAL MOTORS CORP.
