Data Communication Schematics

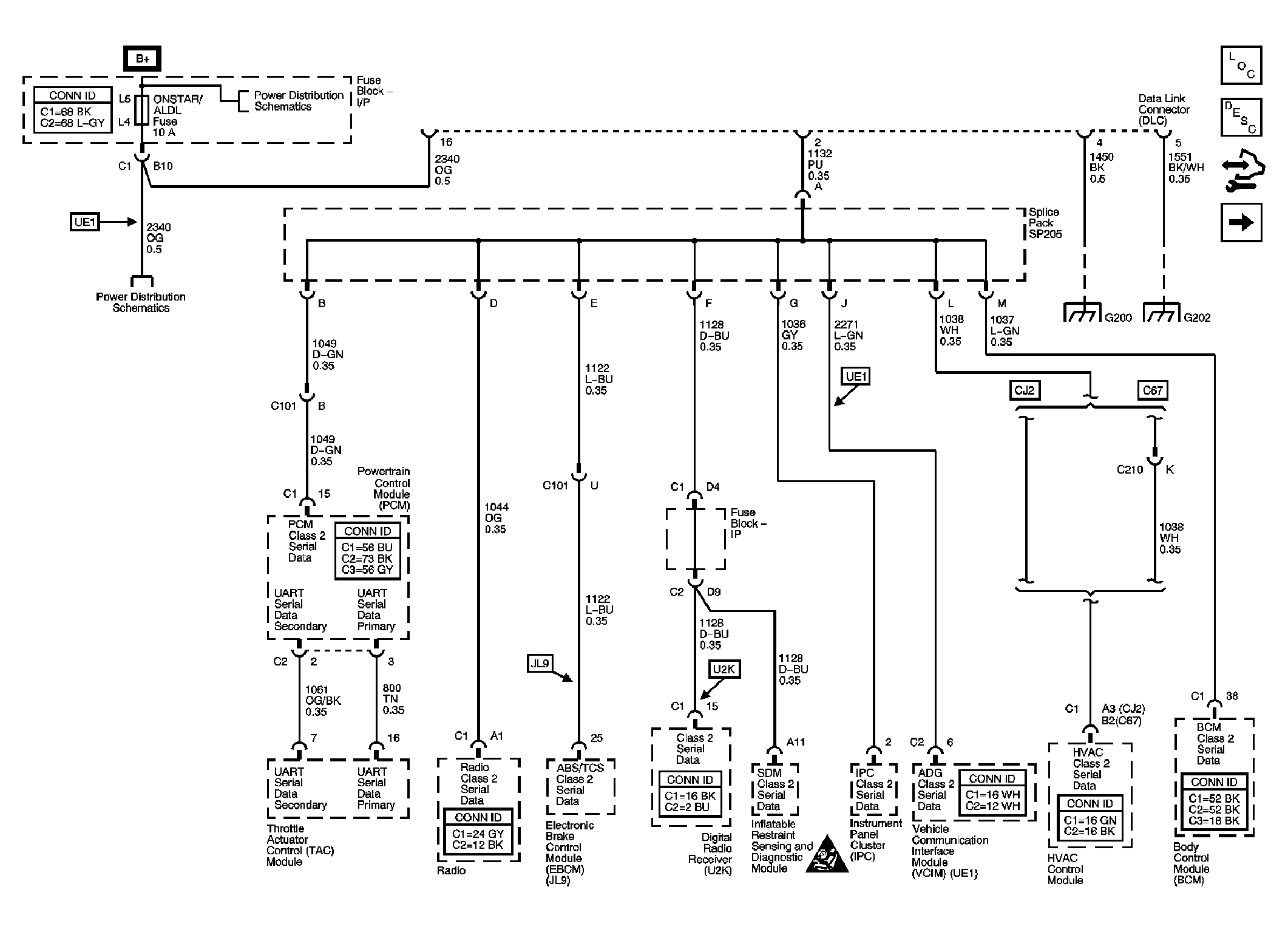

Fig 1: Data Communication Schematic (L26)

GM1803174

Courtesy of GENERAL MOTORS CORP.

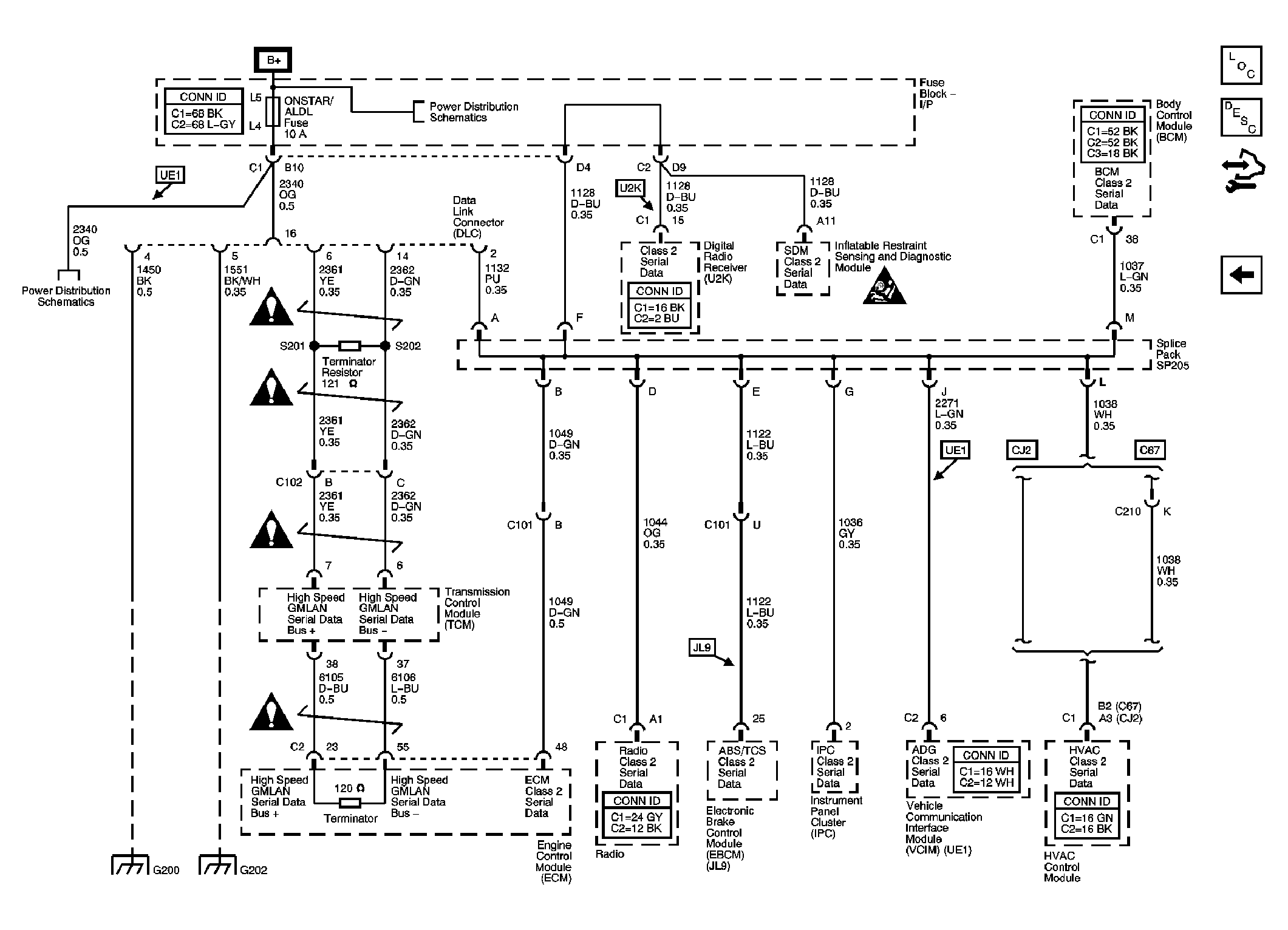

Fig 2: Data Communication Schematic (LY7)

GM1803181

Courtesy of GENERAL MOTORS CORP.
