SIR Schematics

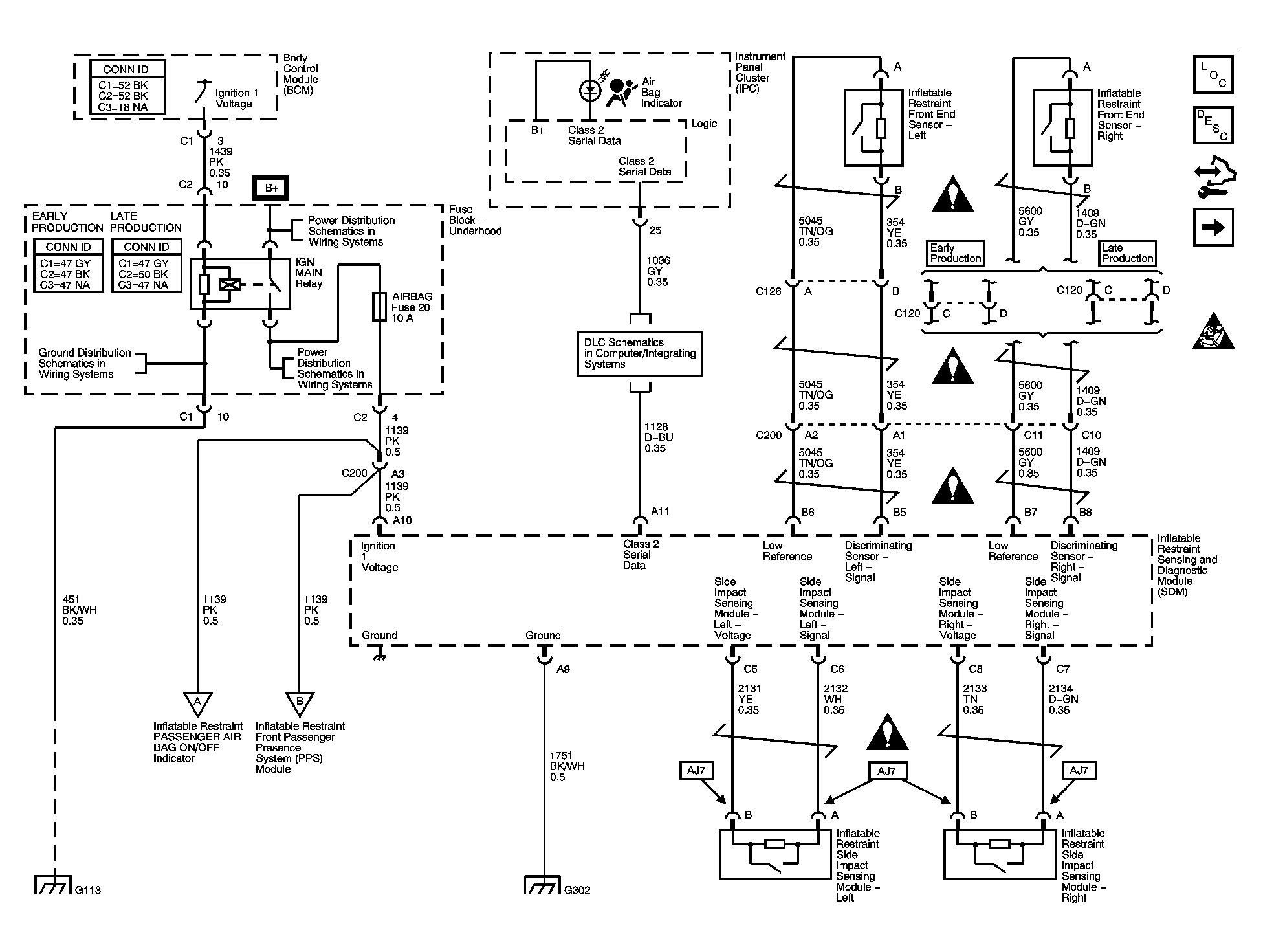

Fig 1: Ground, Impact Sensors, Indicator & Power Schematic
GM1486264Courtesy of GENERAL MOTORS CORP.

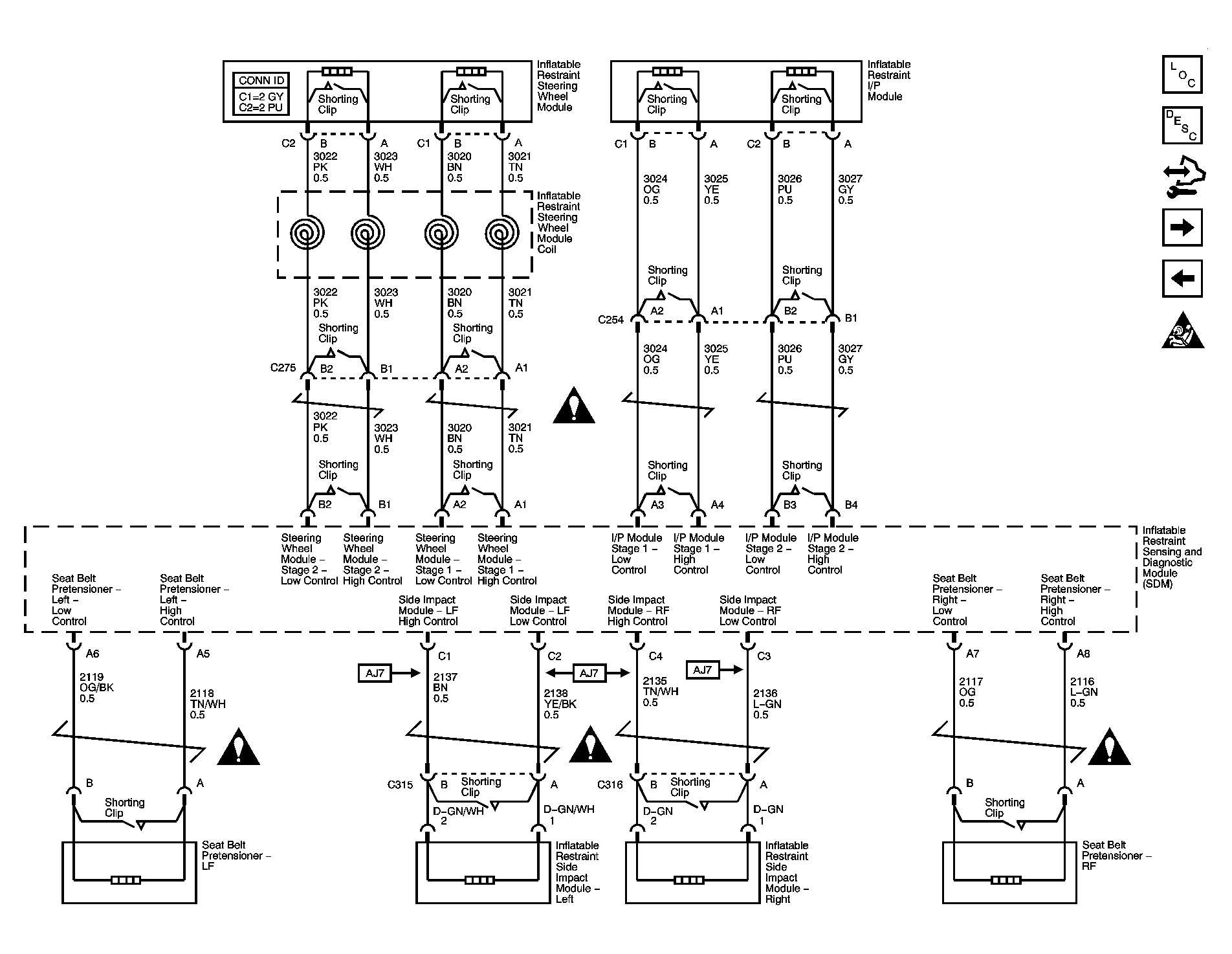

Fig 2: Impact Modules & Pretensioners Schematic
GM1486266Courtesy of GENERAL MOTORS CORP.

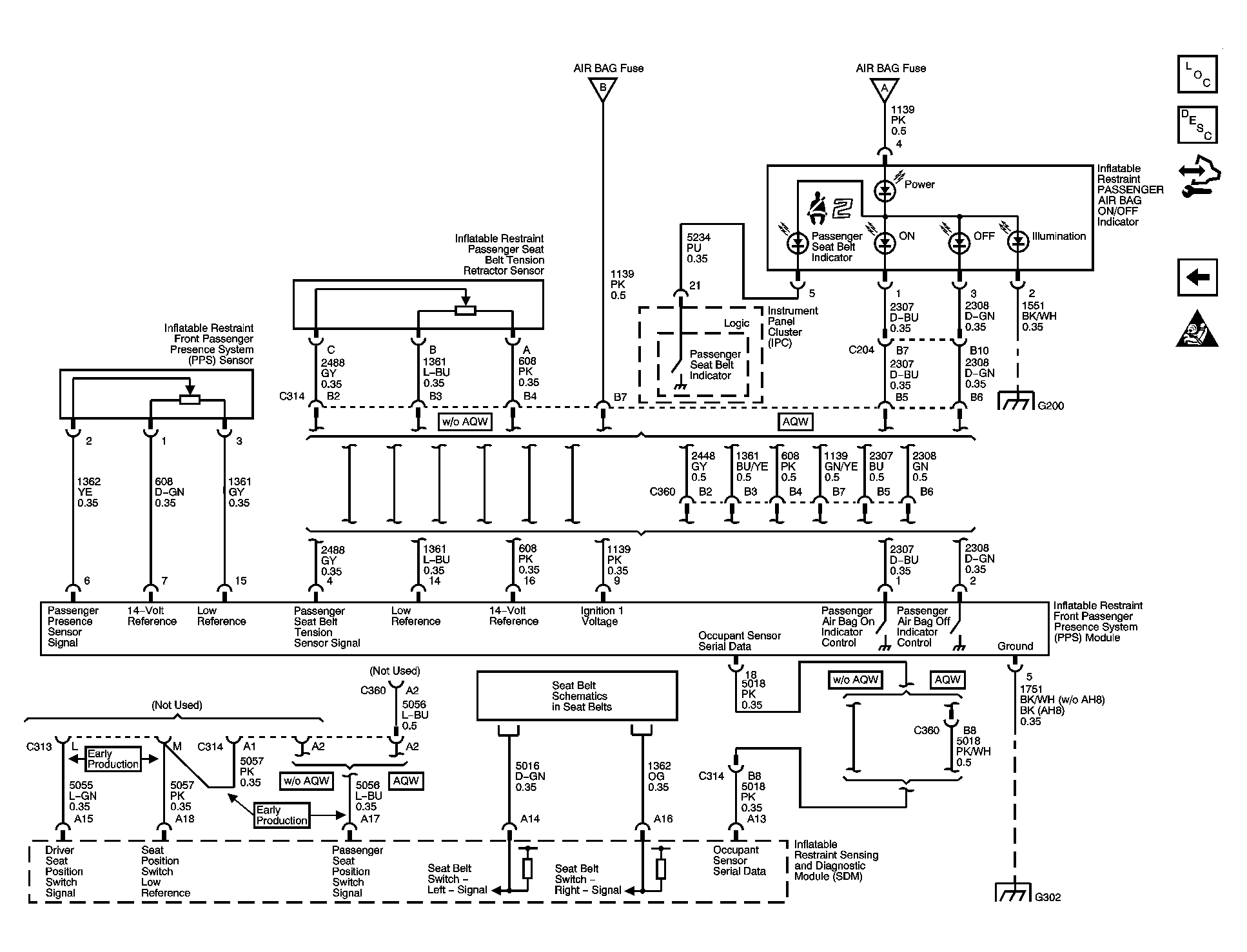

Fig 3: Occupant Sensing Schematic
GM1486271Courtesy of GENERAL MOTORS CORP.
