Power Sliding Door (PSD) Schematics

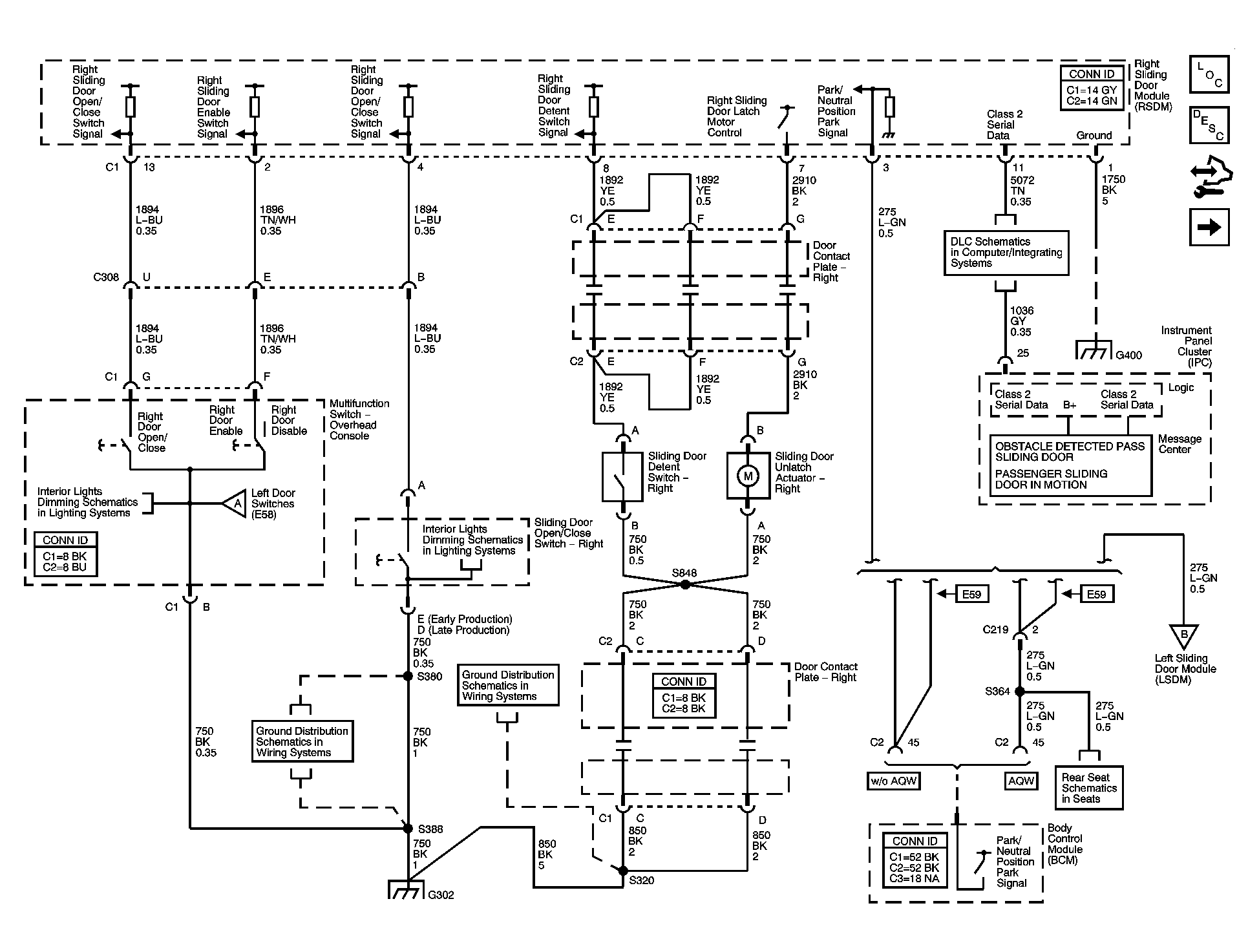

Fig 1: Right Door Controls Schematic
GM1496333Courtesy of GENERAL MOTORS CORP.

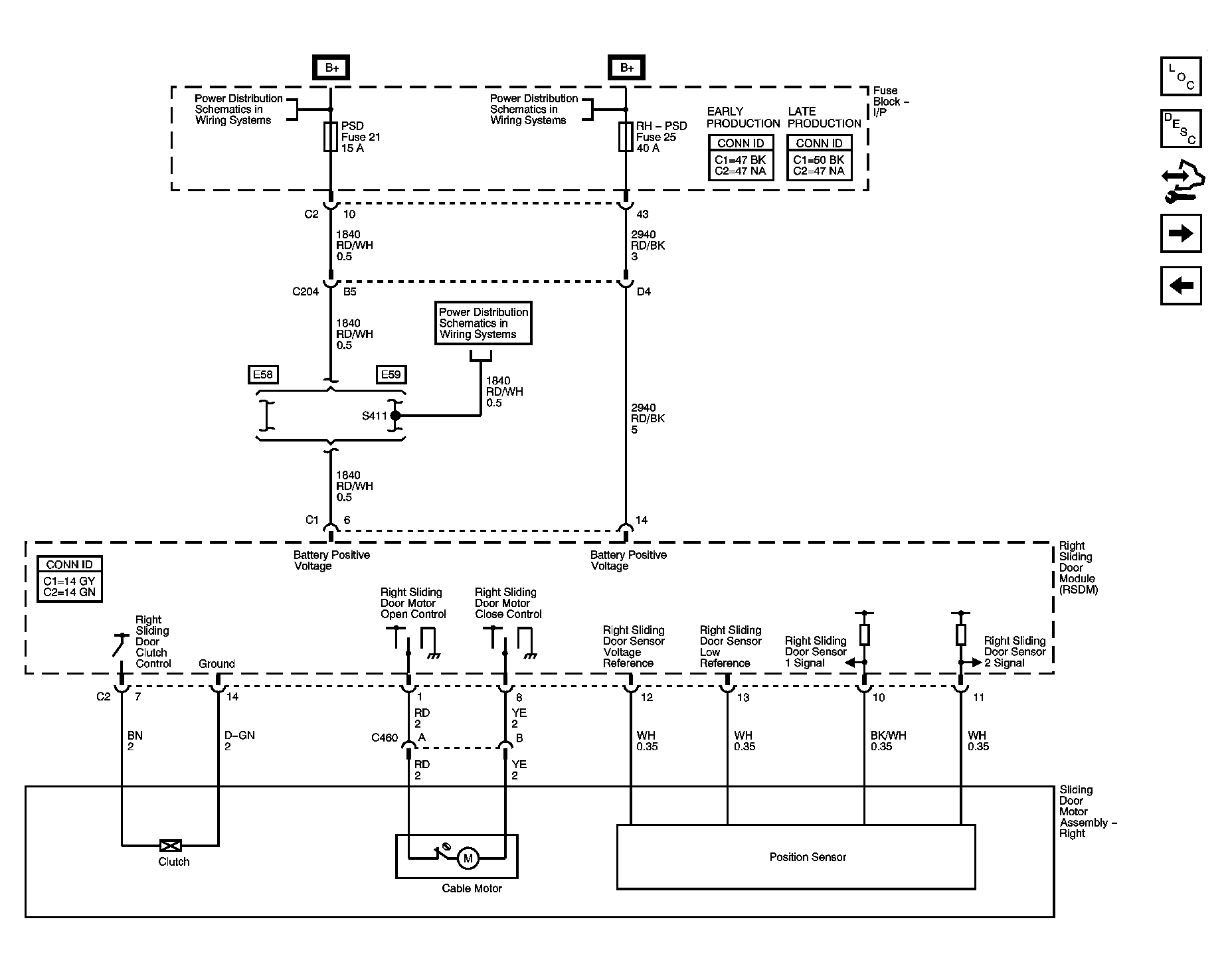

Fig 2: Right Door Motor Schematic
GM1496353Courtesy of GENERAL MOTORS CORP.

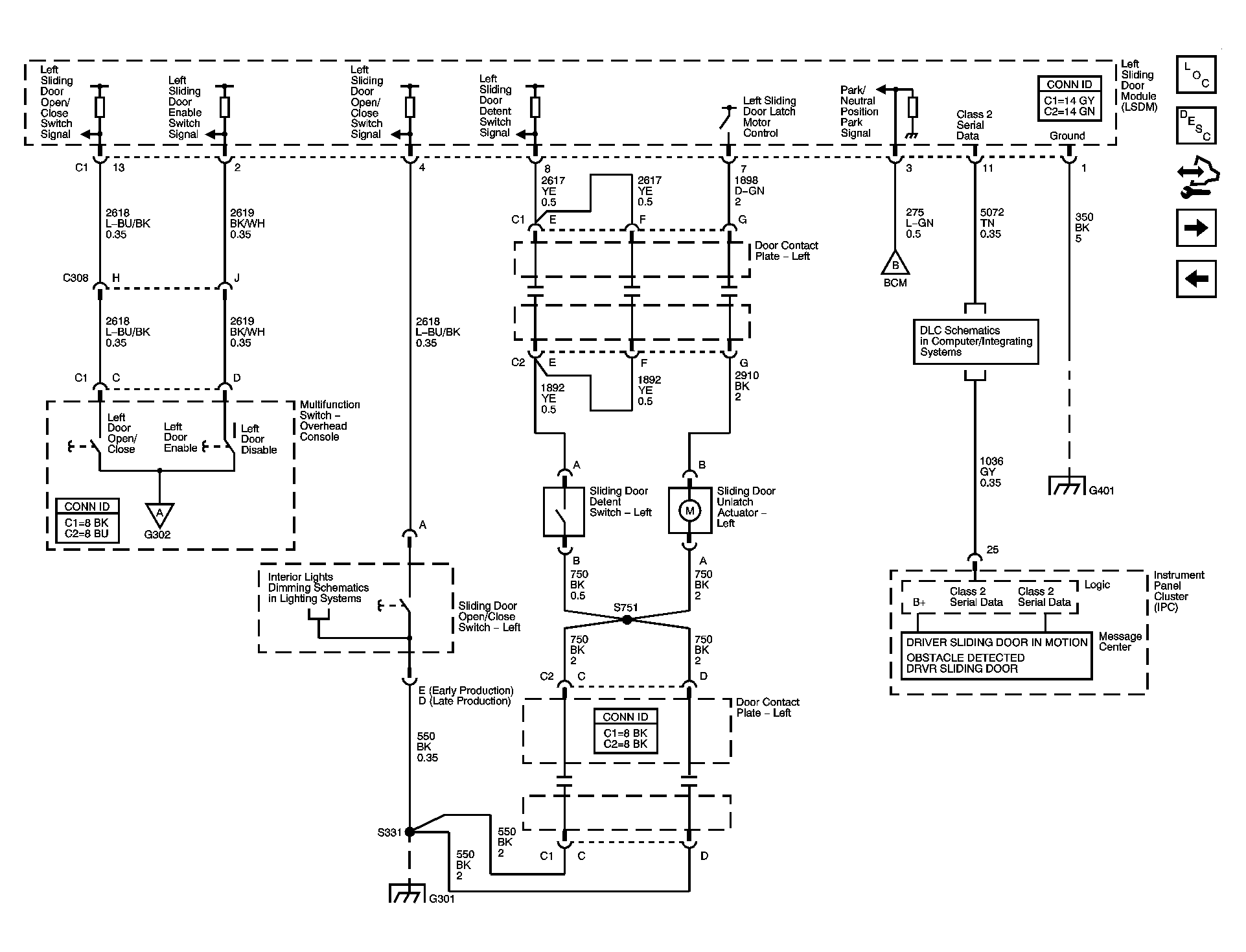

Fig 3: Left Door Controls Schematic
GM1496356Courtesy of GENERAL MOTORS CORP.

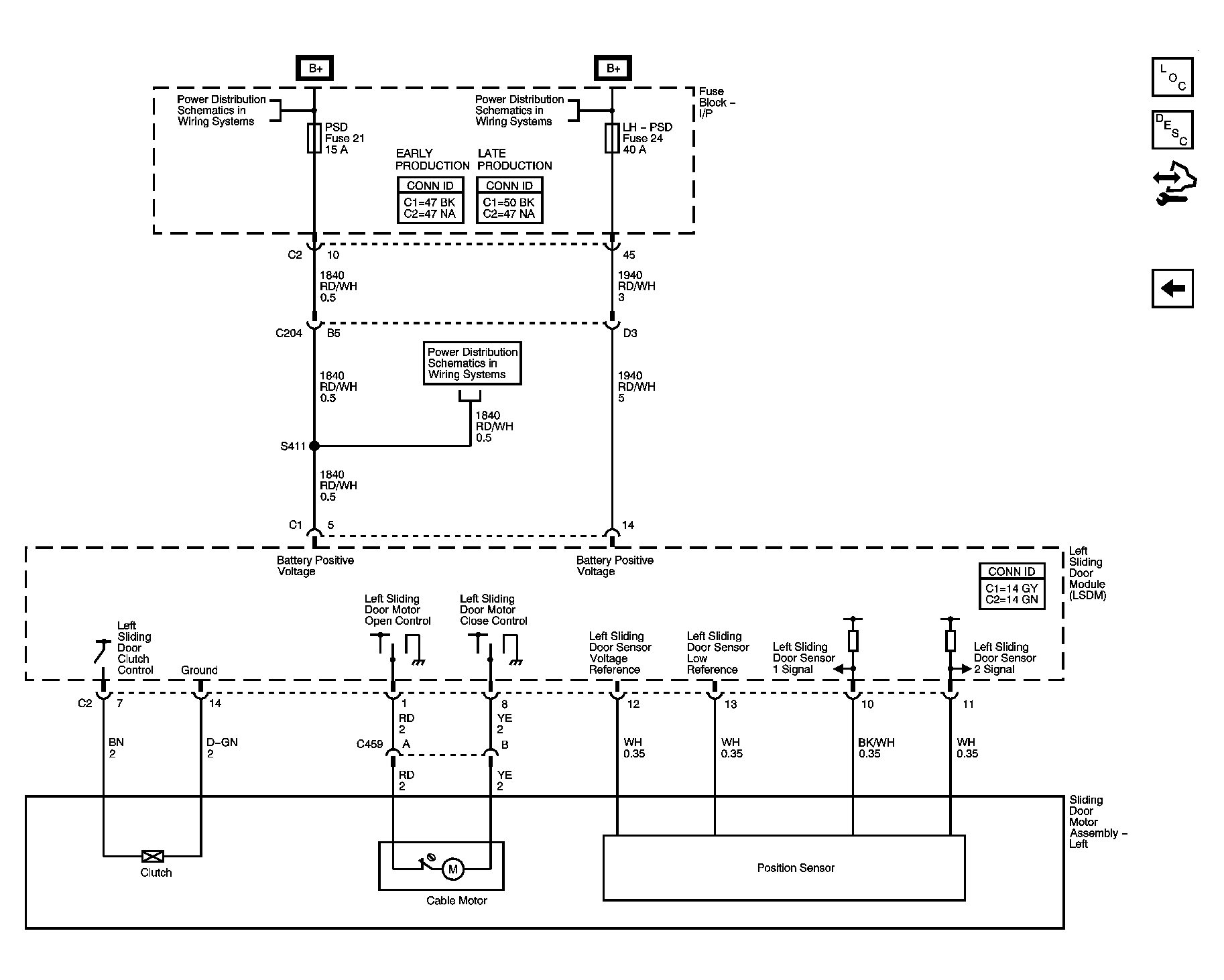

Fig 4: Left Door Motor Schematic
GM1496358Courtesy of GENERAL MOTORS CORP.
