Driver Seat Schematics

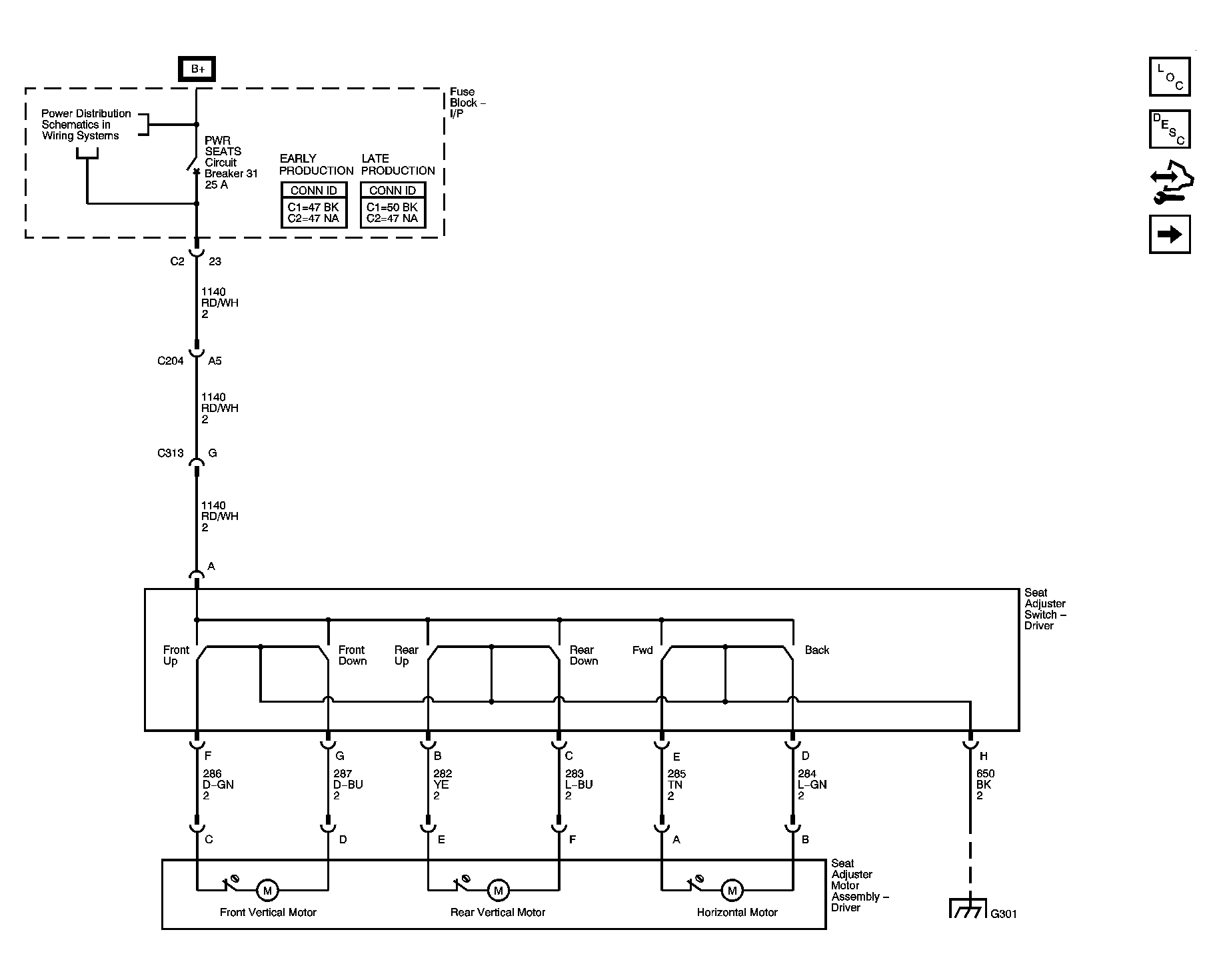

Fig 1: Power Seat Schematic
GM1496359Courtesy of GENERAL MOTORS CORP.

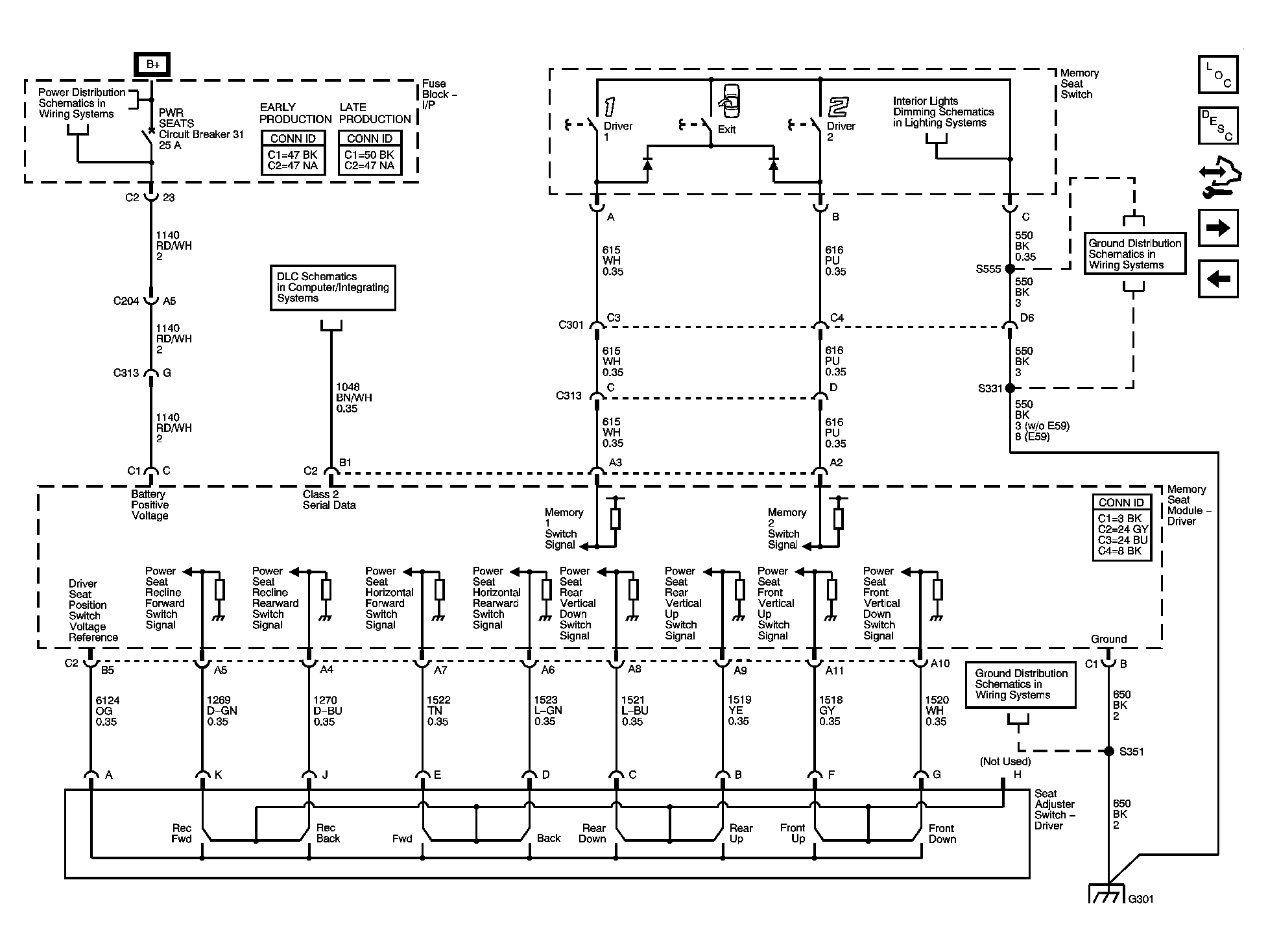

Fig 2: Memory Seat Controls Schematic
GM1496361Courtesy of GENERAL MOTORS CORP.

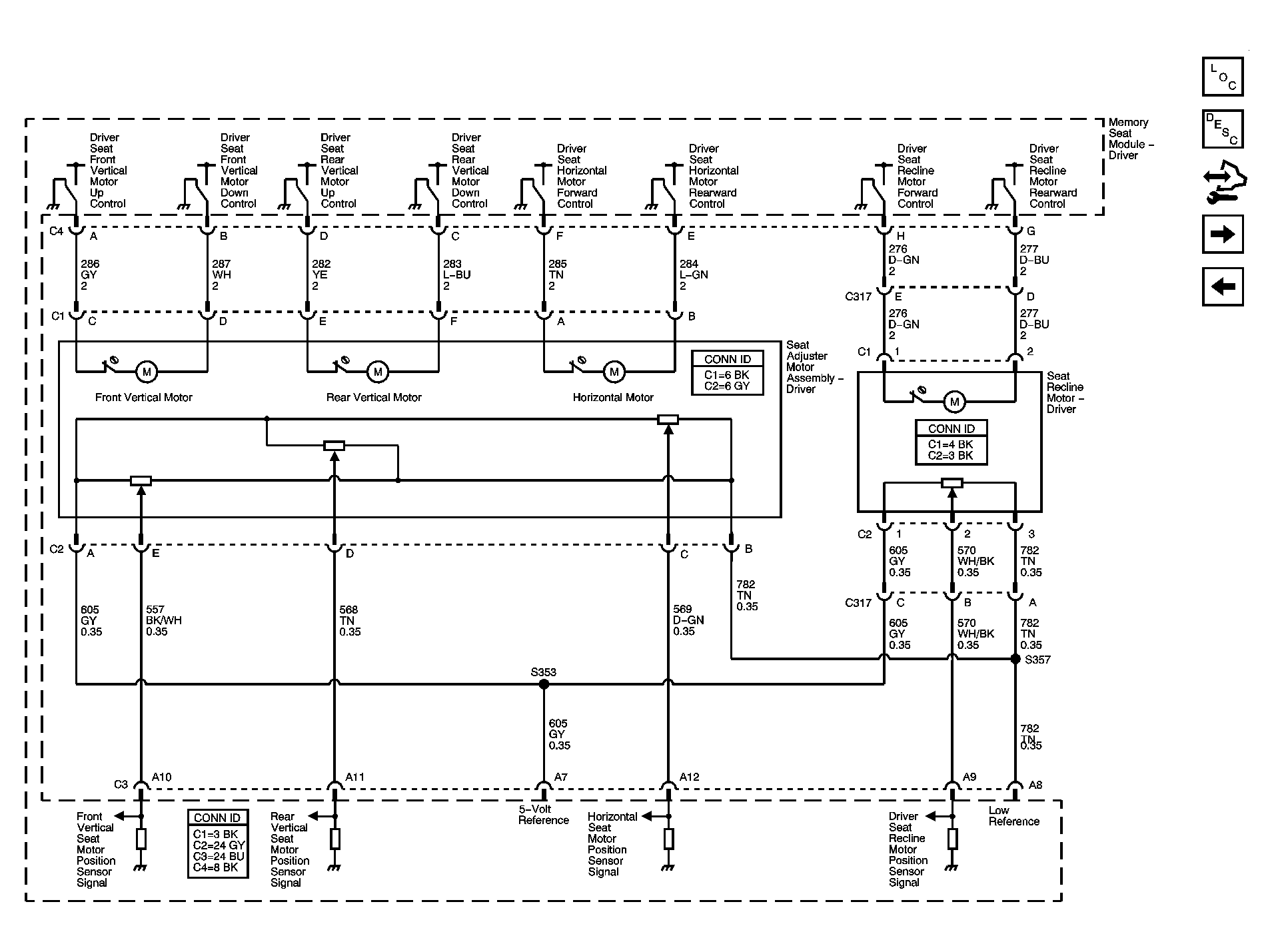

Fig 3: Memory Seat Motors & Sensors Schematic
GM1496364Courtesy of GENERAL MOTORS CORP.

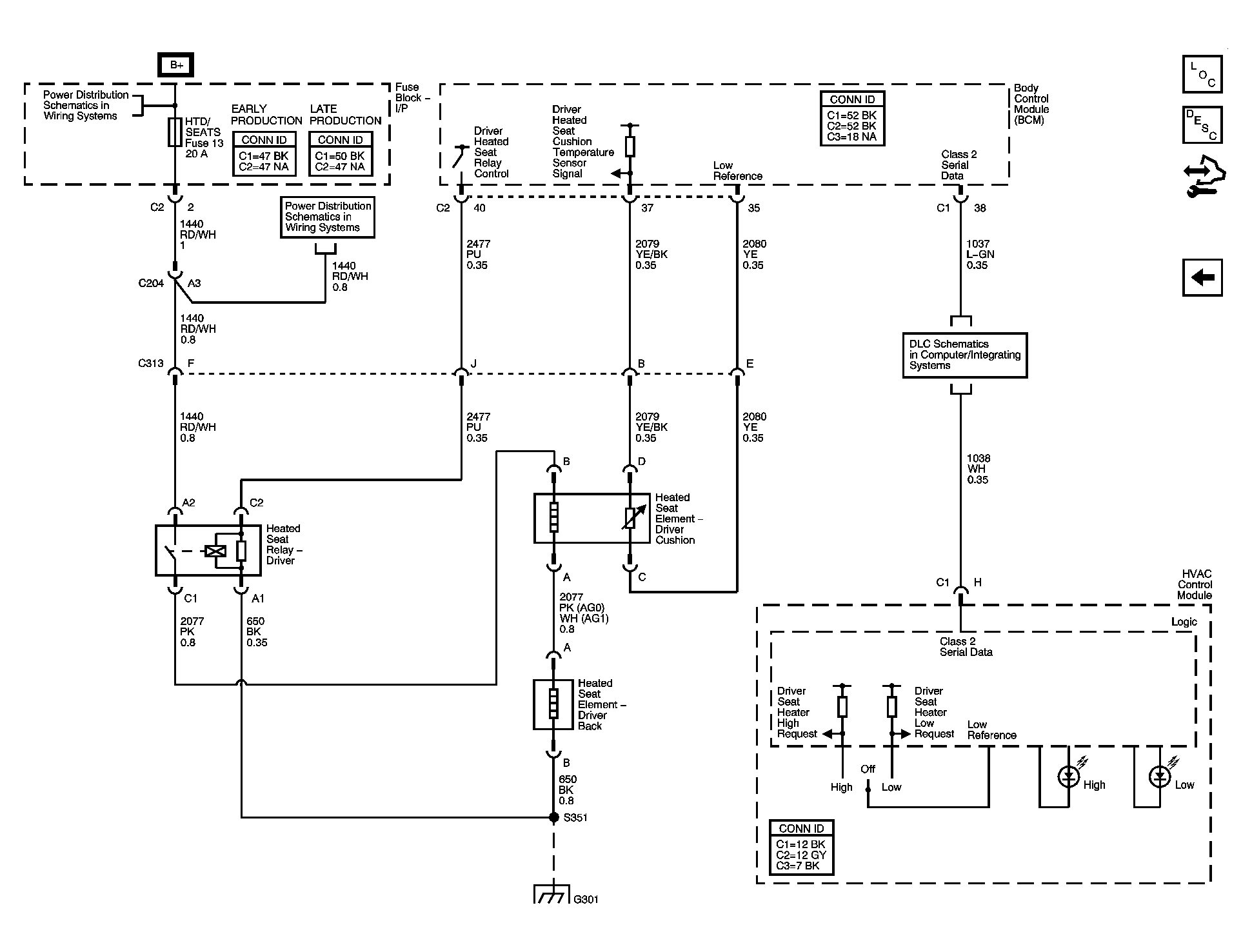

Fig 4: Heated Seat Schematic
GM1496367Courtesy of GENERAL MOTORS CORP.
