Interior Lights Schematics

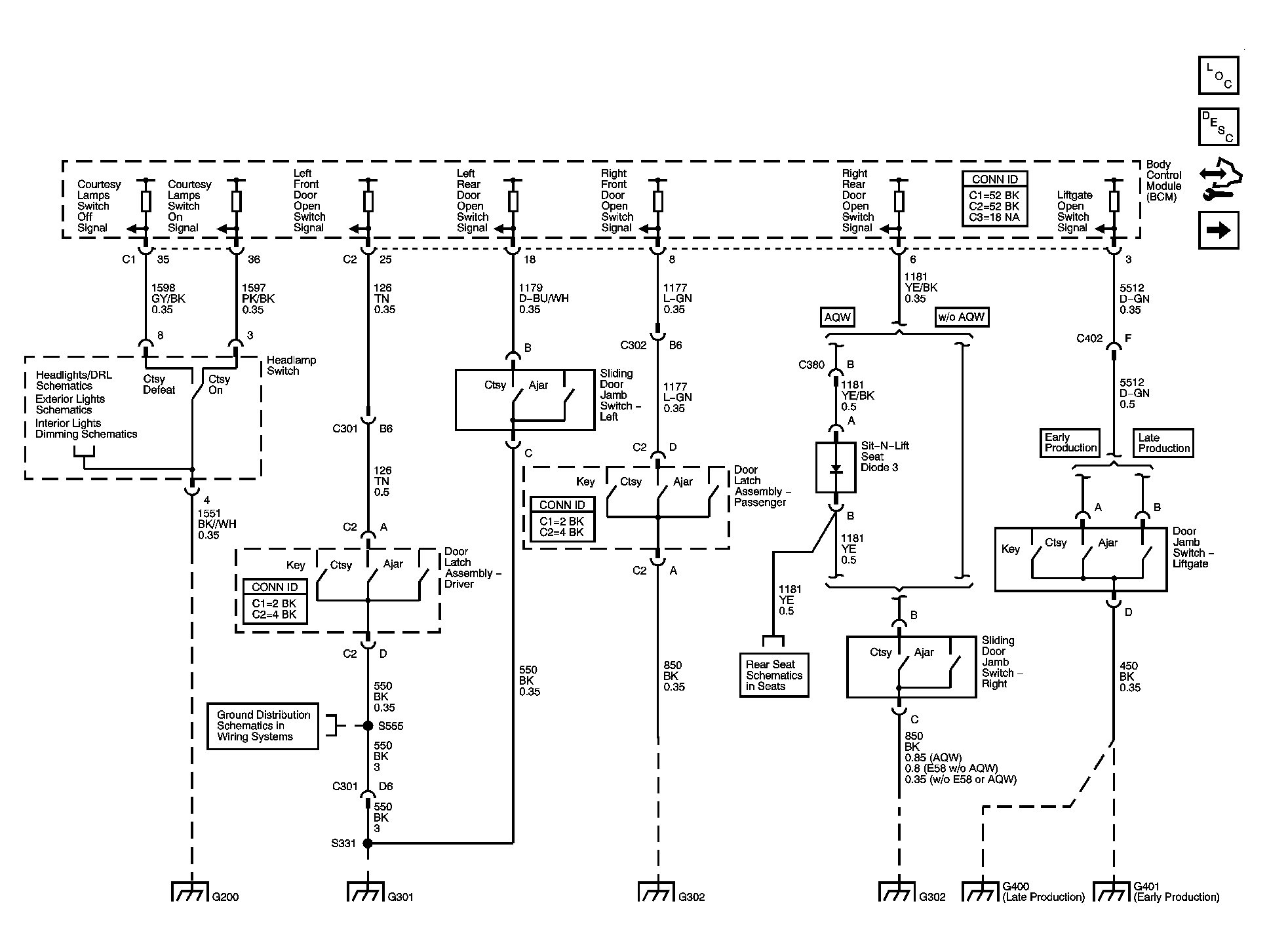

Fig 1: Switches Schematic

GM1486380

Courtesy of GENERAL MOTORS CORP.

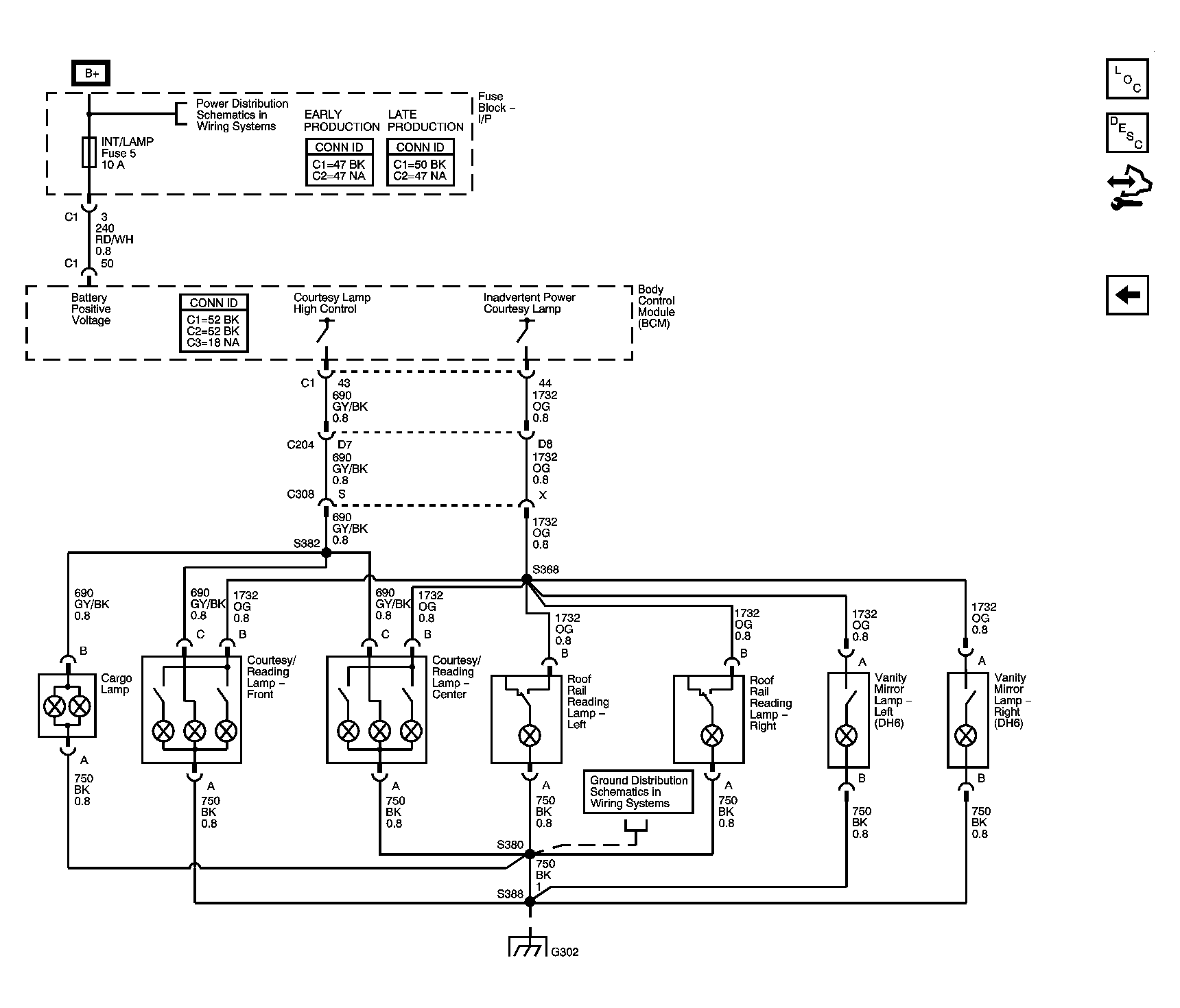

Fig 2: Lamps Schematic

GM1486381

Courtesy of GENERAL MOTORS CORP.
