Radio/Audio System Schematics

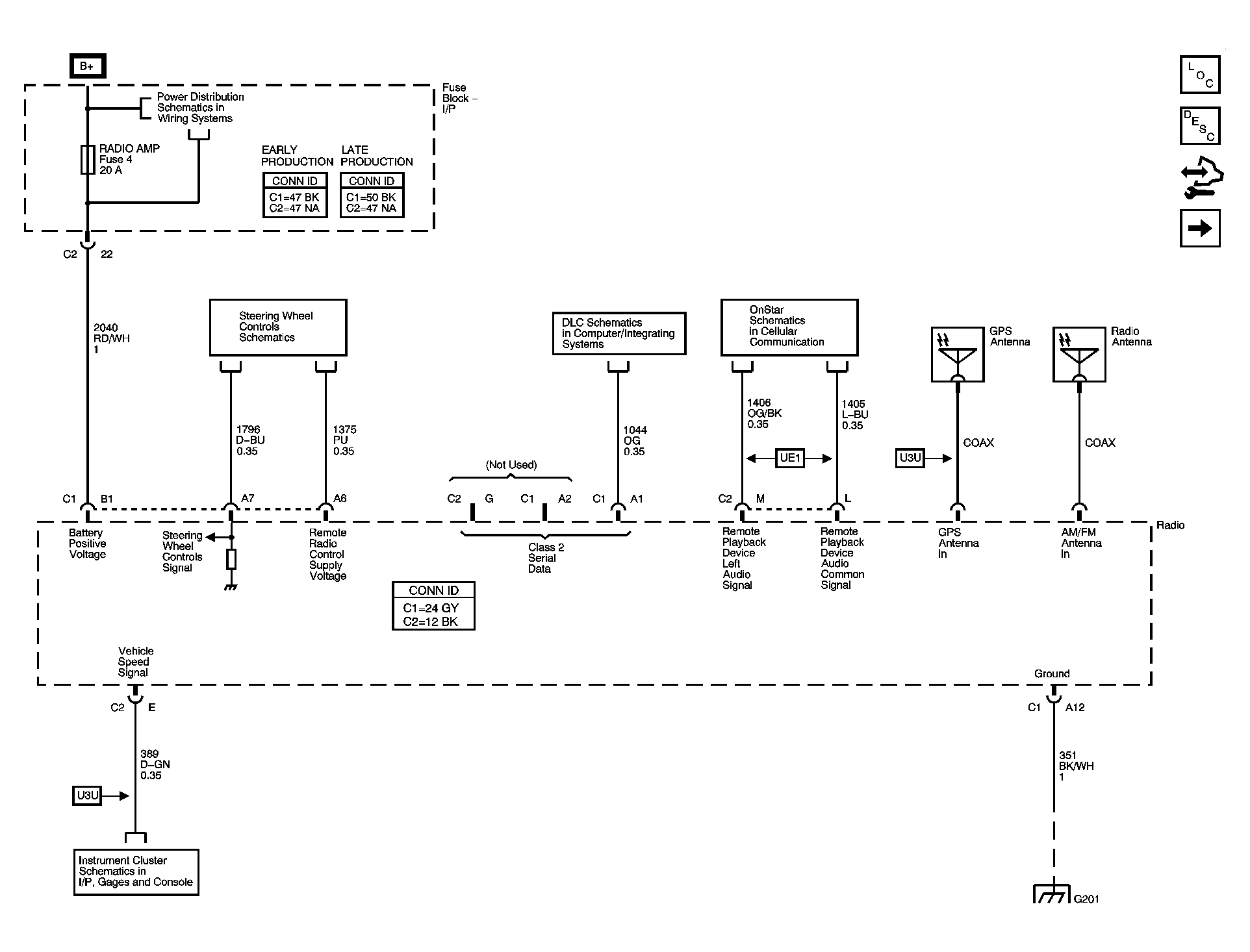

Fig 1: Antennas, Ground, Power & Subsystem References Schematic
GM1499900Courtesy of GENERAL MOTORS CORP.

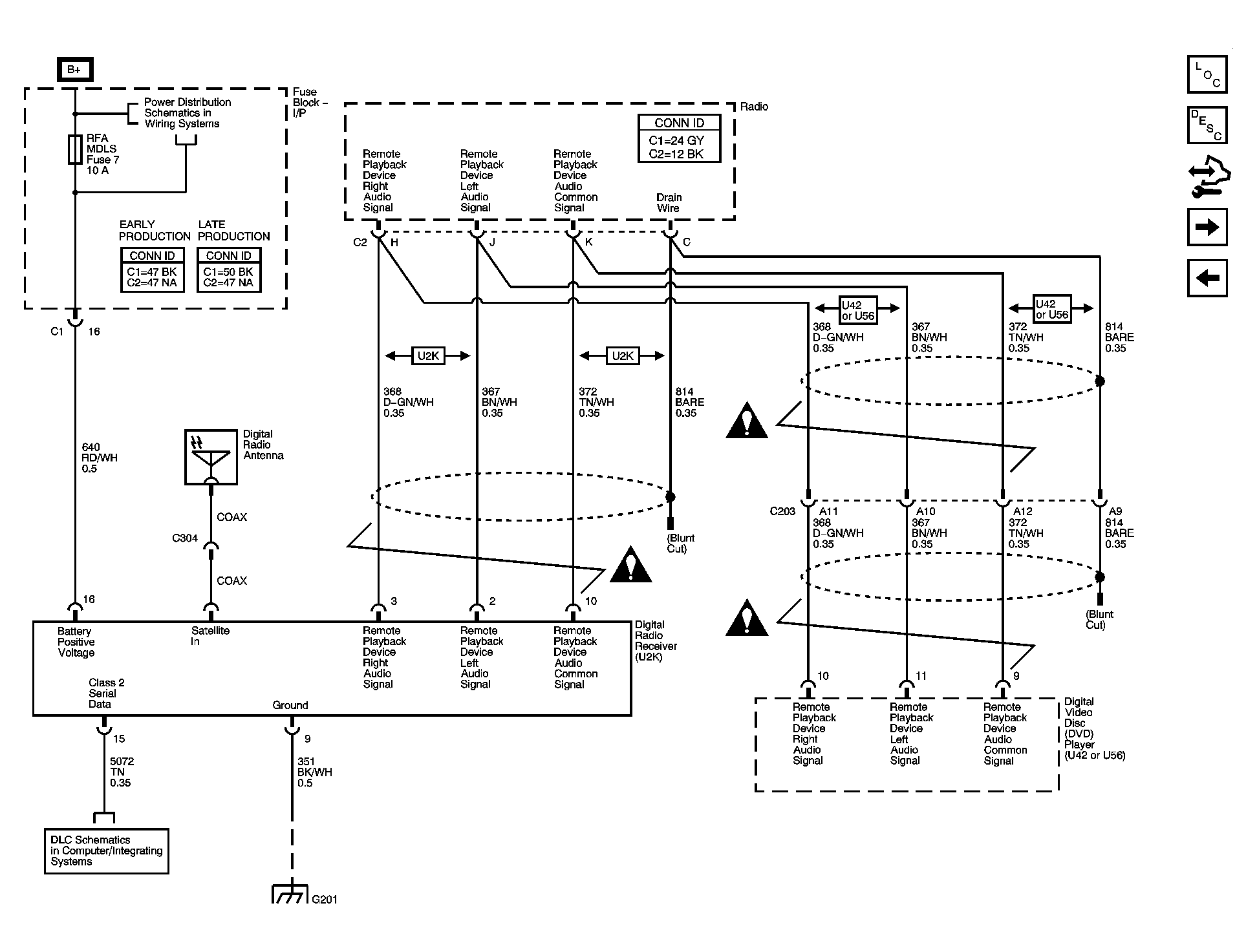

Fig 2: DVD and Satellite Audio Sources Schematic
GM1499904Courtesy of GENERAL MOTORS CORP.
Fig 3: Front Speakers Schematic
GM1499906Courtesy of GENERAL MOTORS CORP.

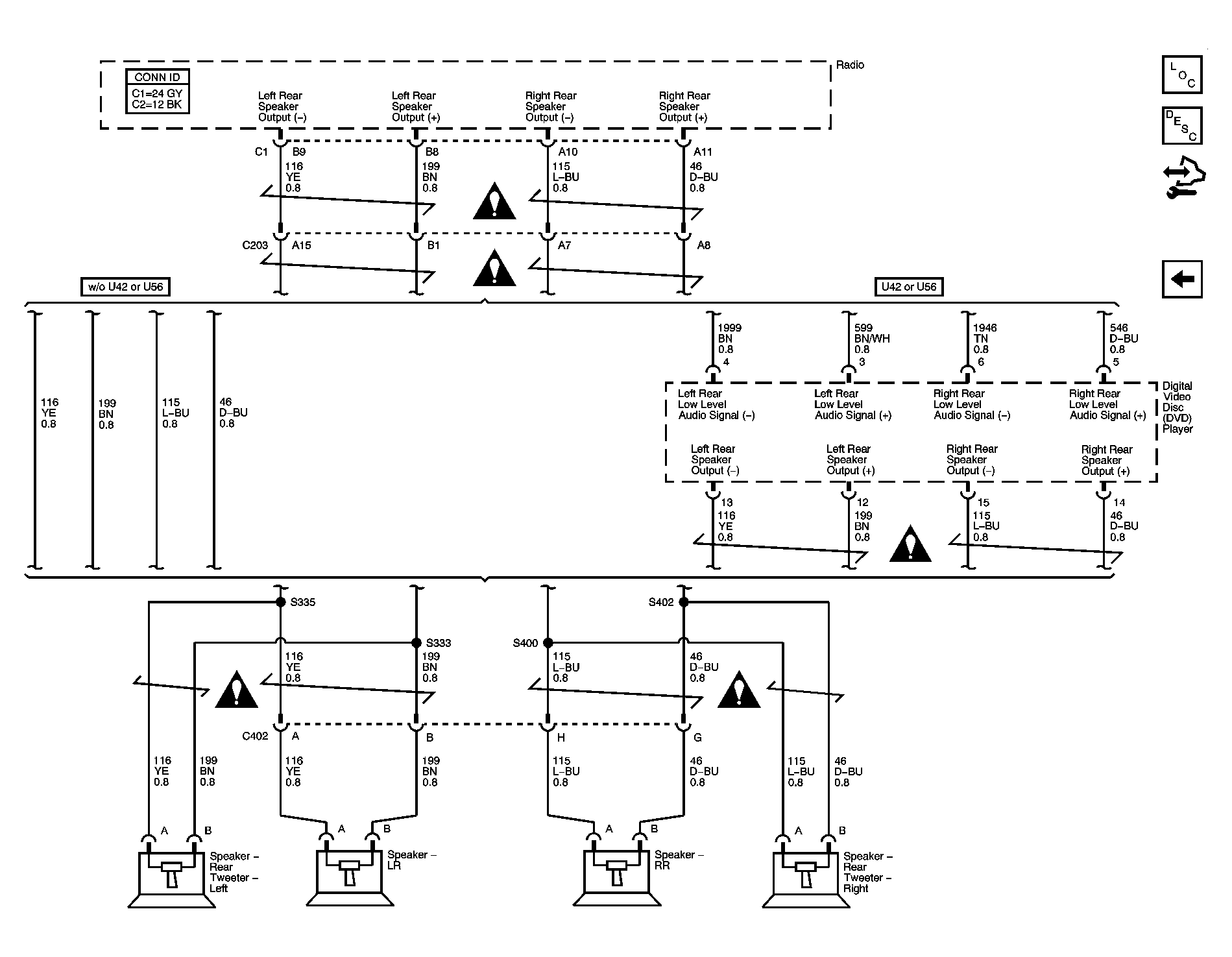

Fig 4: Rear Speakers Schematic
GM1499909Courtesy of GENERAL MOTORS CORP.
