Instrument Cluster Schematics

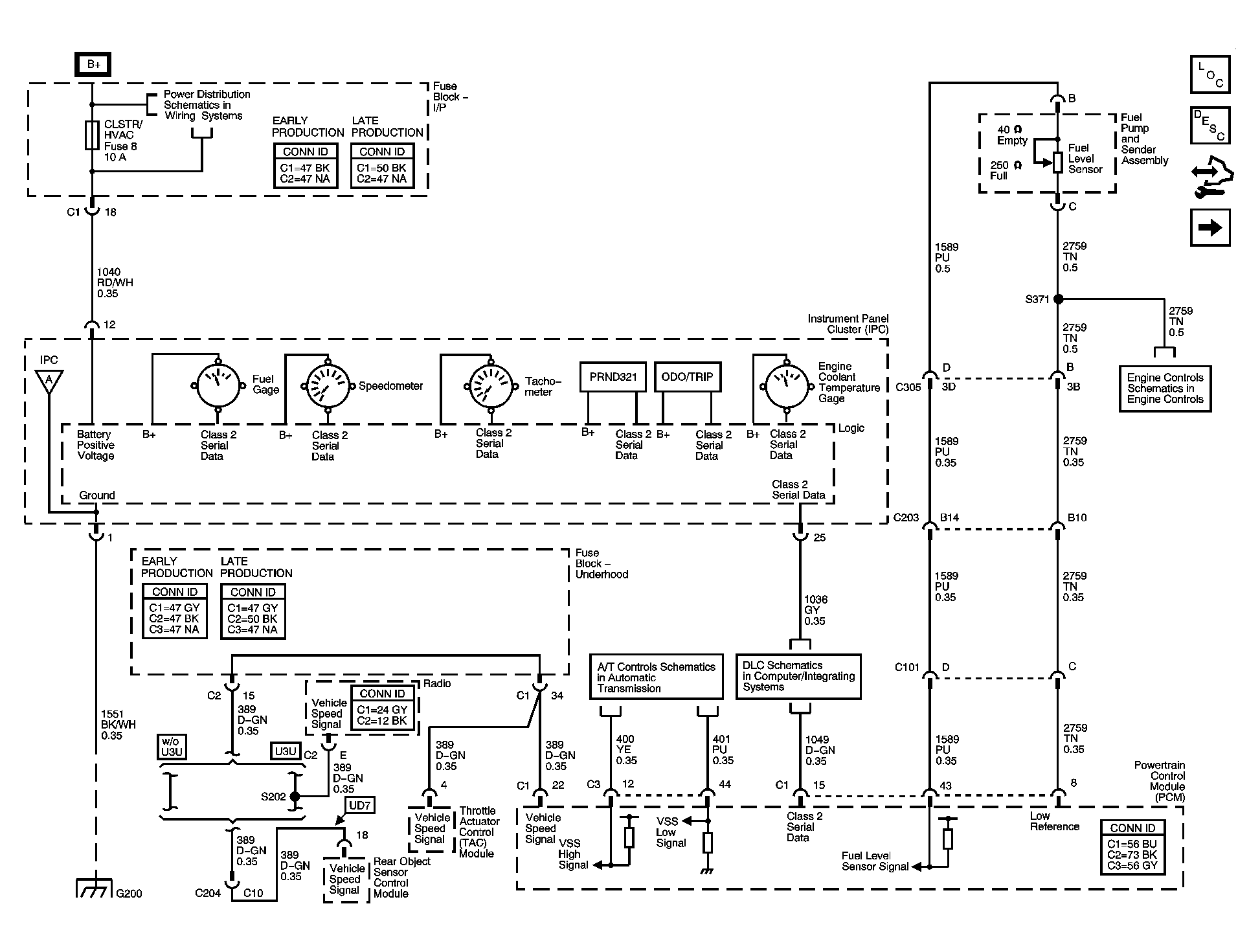

Fig 1: Gages, Ground & Power Schematic
GM1486323Courtesy of GENERAL MOTORS CORP.

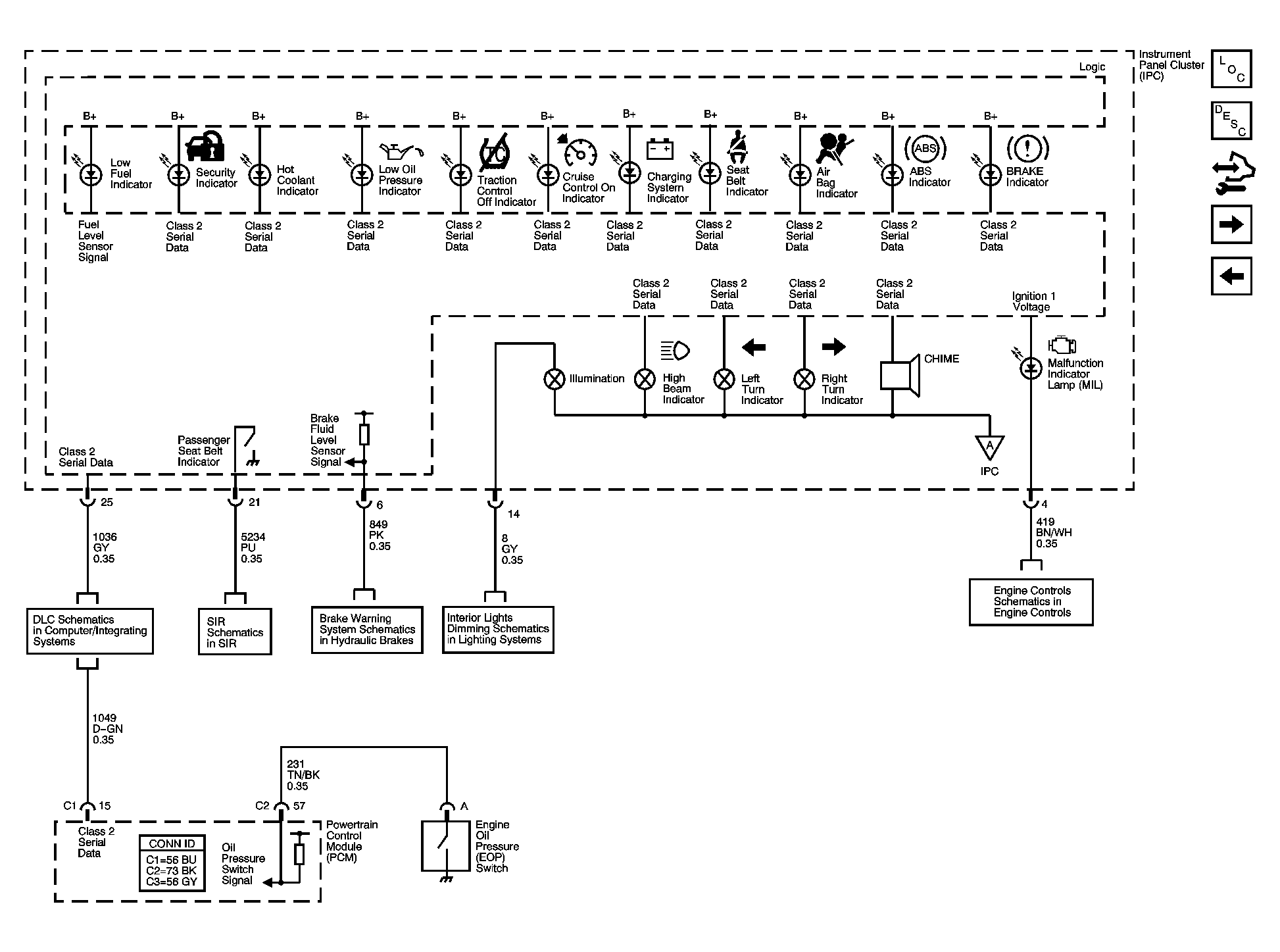

Fig 2: Indicators & Lighting Schematic
GM1486326Courtesy of GENERAL MOTORS CORP.

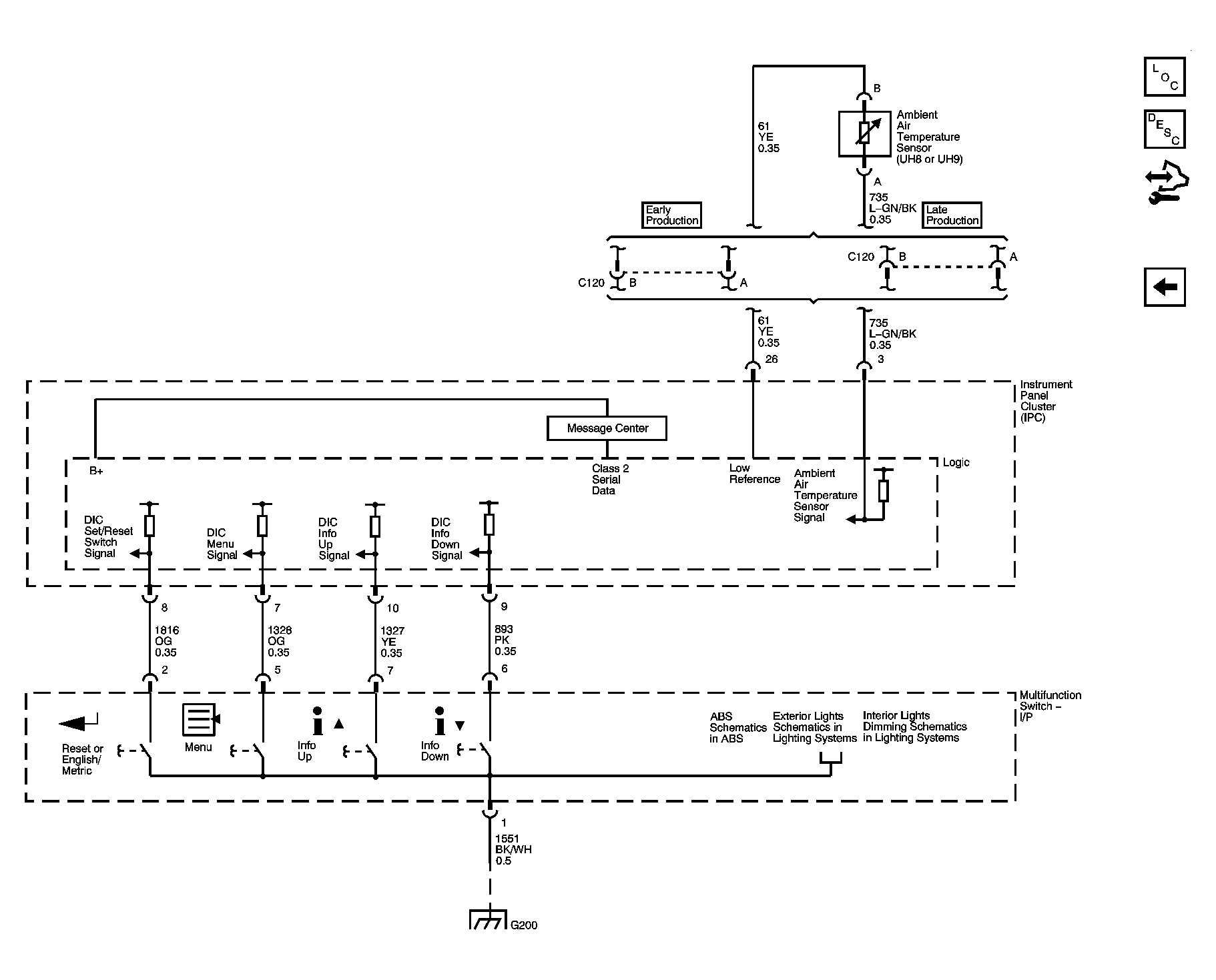

Fig 3: Messages Schematic
GM1486325Courtesy of GENERAL MOTORS CORP.
