HVAC Schematics

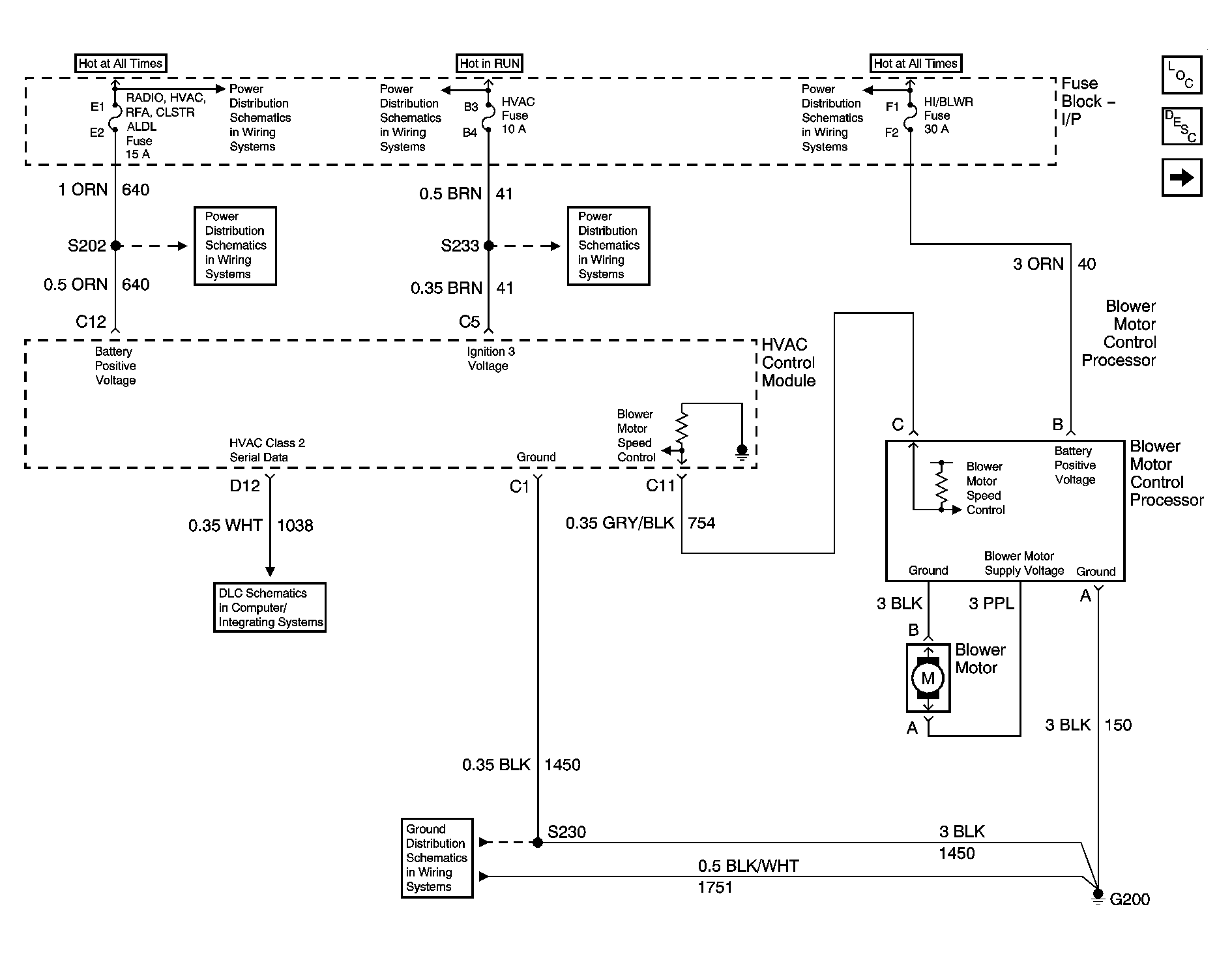

Fig 1: Blower Controls Schematics
GM1469693Courtesy of GENERAL MOTORS CORP.

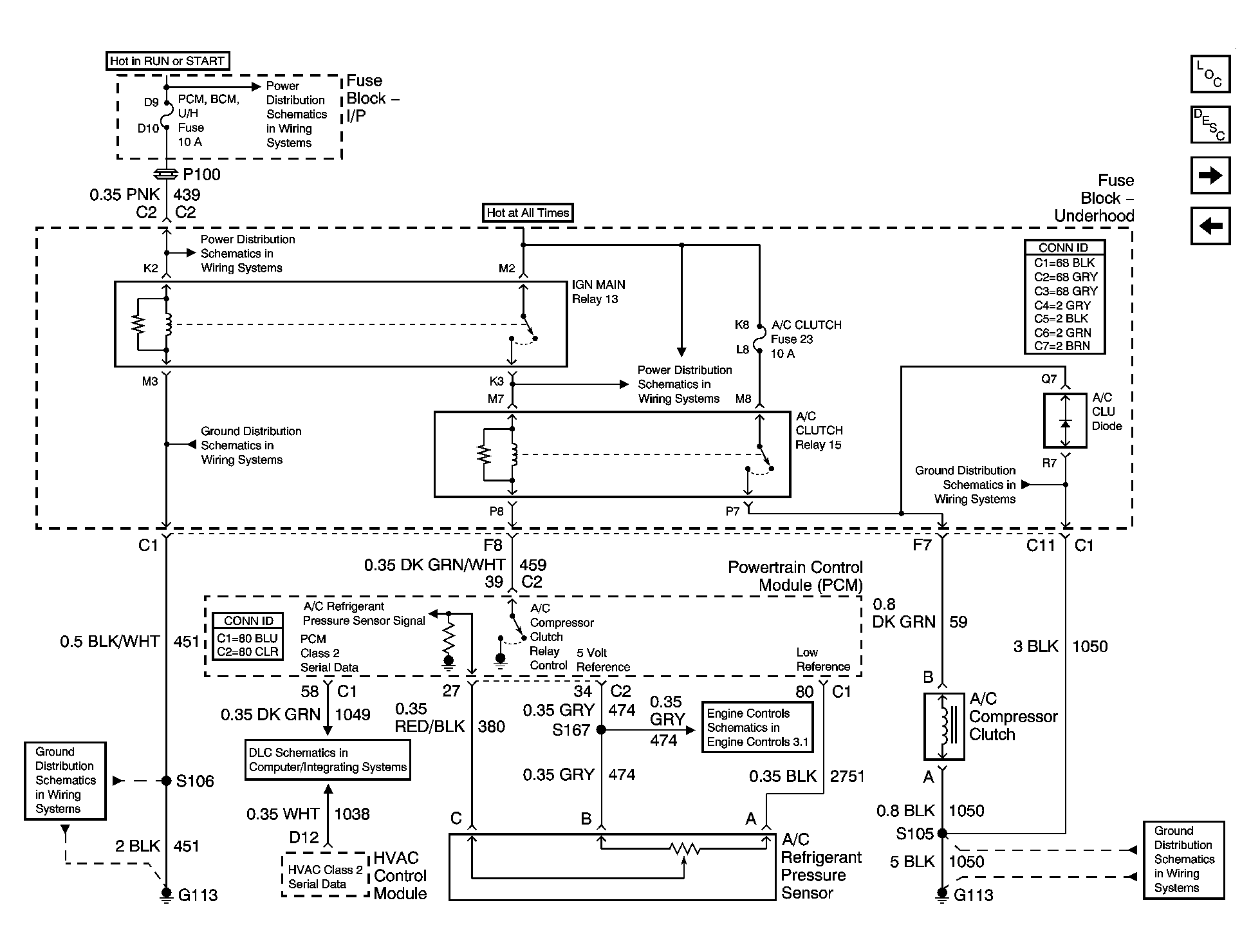

Fig 2: Compressor Controls Schematics
GM1379233Courtesy of GENERAL MOTORS CORP.
Fig 3: Air Temperature and Sunload Sensors Schematics
GM1031685Courtesy of GENERAL MOTORS CORP.
Fig 4: Air Delivery/Temperature Controls Schematics
GM1275248Courtesy of GENERAL MOTORS CORP.
Fig 5: Vacuum Solenoids Schematics
GM818811Courtesy of GENERAL MOTORS CORP.
